Jensen JA2CH 2-Channel Amplifier – JA2CH

  • Class D 2-Channel MOSFET Amplifier Design: Powerful and compact.
  • High and Low-Level Inputs: Easy connection via speaker wire or RCA.
  • Selectable Crossovers: High-pass, low-pass, and full-range options.
  • Bridgeable Operation: Ideal for subwoofer applications.
  • Compact Dimensions: 2.00″ x 5.63″ x 6.43″.

Available on:

amazon logo with link to product

SKU: JA2CH Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
ja2ch amp with two speakers on table
adults celebrating in car with new car audio

Features 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

Model Features

600 Watts Peak Power Icon

Peak Power

This amp can reach a peak power of 600 Watts for a powerful listening experience!

Compact Amp Design Icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

Class D Design Icon

Efficient Power Output

The JA2Ch Amp has a class D design for improved longevity and high efficiency power output.

RCA Spaker Wire Inputs Icon

Flexible Inputs

This amp has flexible input options and selectable crossovers, allowing for a customizable sound experience.

JA2CH Diagram Graphics 1

JA2CH 2-Channel MOSFET Amplifier

The JA2CH 2-Channel MOSFET Amplifier brings efficiency and performance to your audio system. It features a Class D design, offering selectable crossover options for versatility in various sound setups. Whether used for stereo sound or bridged for subwoofer applications, this amplifier delivers clean power and a reliable performance.

Installation Notes:

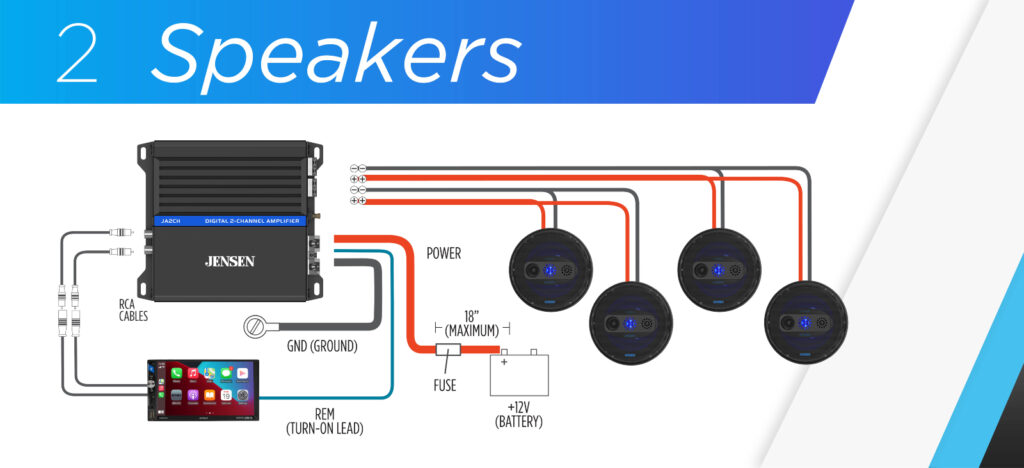

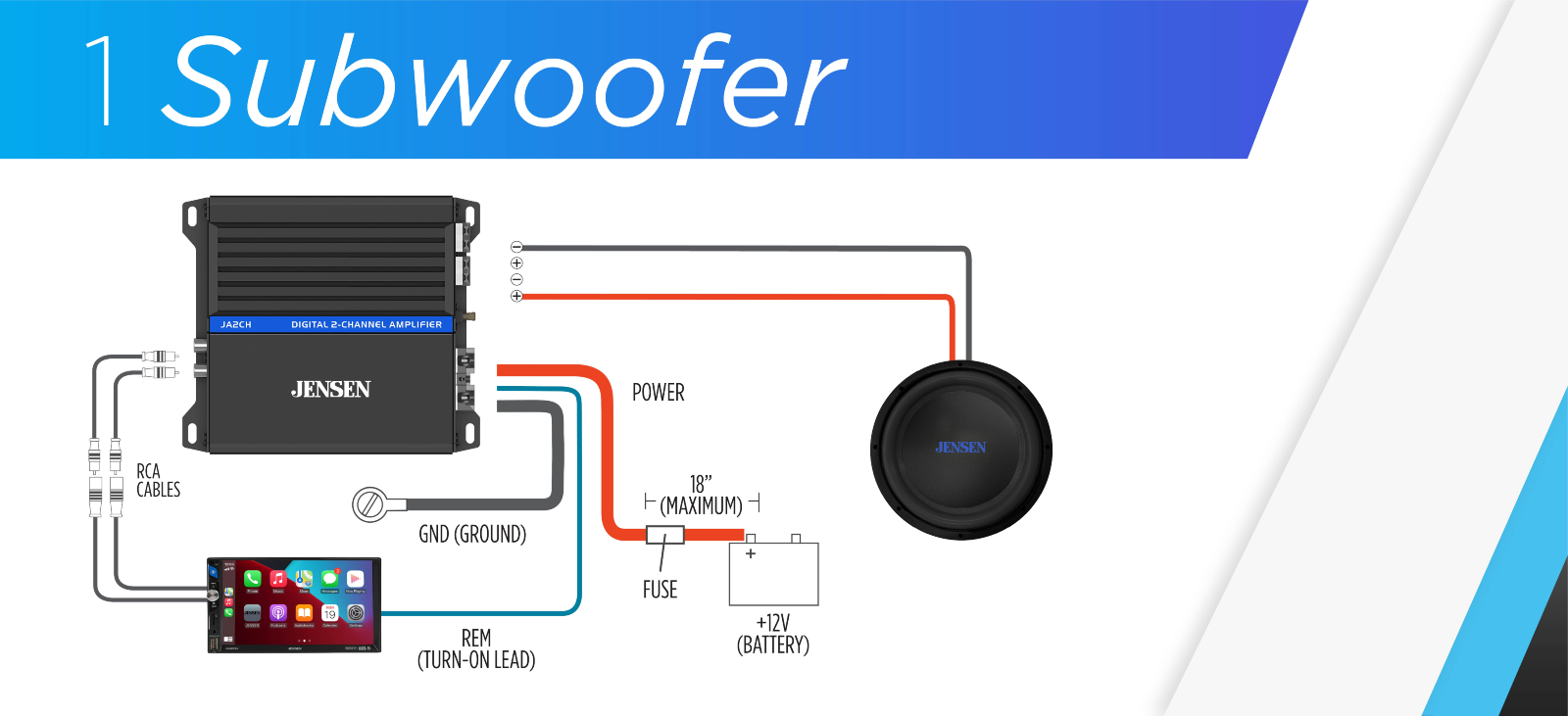

For proper installation, an 8 AWG amplifier installation kit and 16 AWG speaker wire are recommended. The JA2CH 2-Channel Amplifier supports both stereo and bridged configurations, making it ideal for both speaker and subwoofer applications.

Speaker Outputs

2
Class

D Digital
Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
2 Ohm Stable Stereo Operation

Yes
Crossover

High-Pass Crossover Variable (30 Hz – 320Hz), Low-Pass Crossover Variable (30 Hz – 320Hz)
Frequency Response

20 Hz ~ 20 kHz
Power Supply

PWM MOSFET
Fuse Size and Type

25A
Recommended Power/Ground Wire

8 AWG
Recommended Speaker Wire

16 AWG
Total Dynamic Power

600 Watts
Signal to Noise Ratio

100 dBA
Dimensions

2" x 5.63" x 6.43" (H x D x W)
Gain Adjustment

Variable 200 mV ~ 6 V

Power Information

Additional Features and Detailed Specifications:

Specification Details
Continuous power output (1% THD+N)
  • 80 Watts RMS x 2 Channels @ 2 ohms
  • 120 Watts RMS x 2 Channels @2 ohms
  • 240 Watts RMS x 1 Channel @ 4 ohms (bridged)
Max Dynamic Power 600 Watts
Total Harmonic Distortion (THD+N) <0.15% at 1 Watt RMS
Frequency Response 20 Hz – 20 kHz
Signal-to-Noise Ratio 100 dBA (reference: 1 Watt RMS @ 4 Ohms)
Recommended Wire Sizes Power/Ground: 8 AWG, Speaker: 16 AWG
