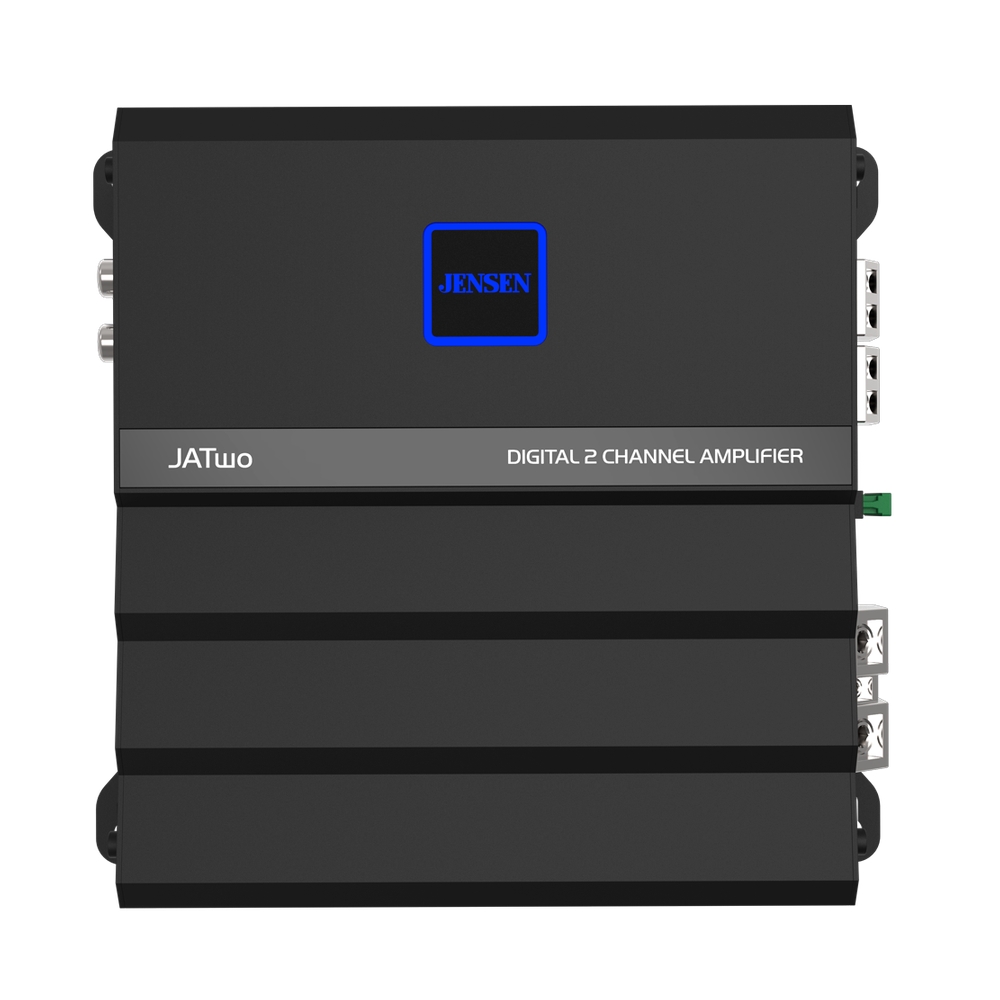

JATWO amp view from top

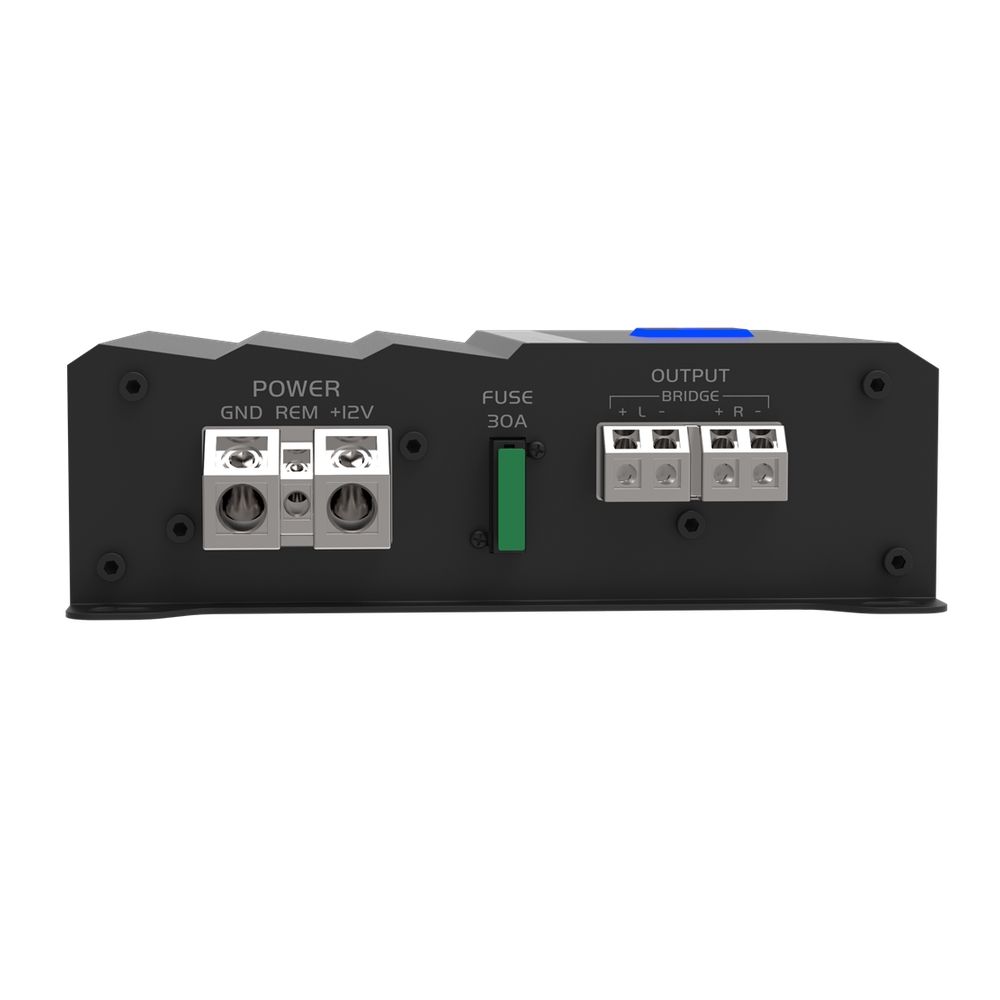

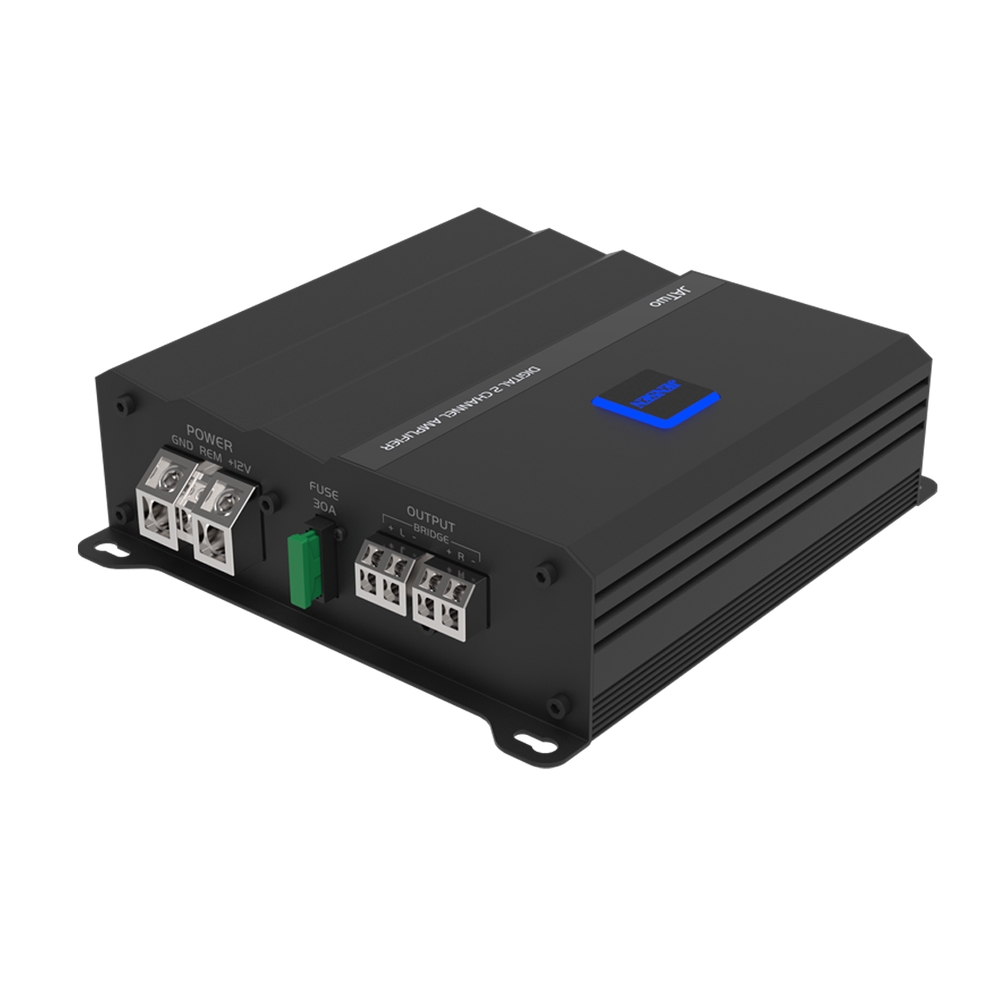

JATWO amp view from side B

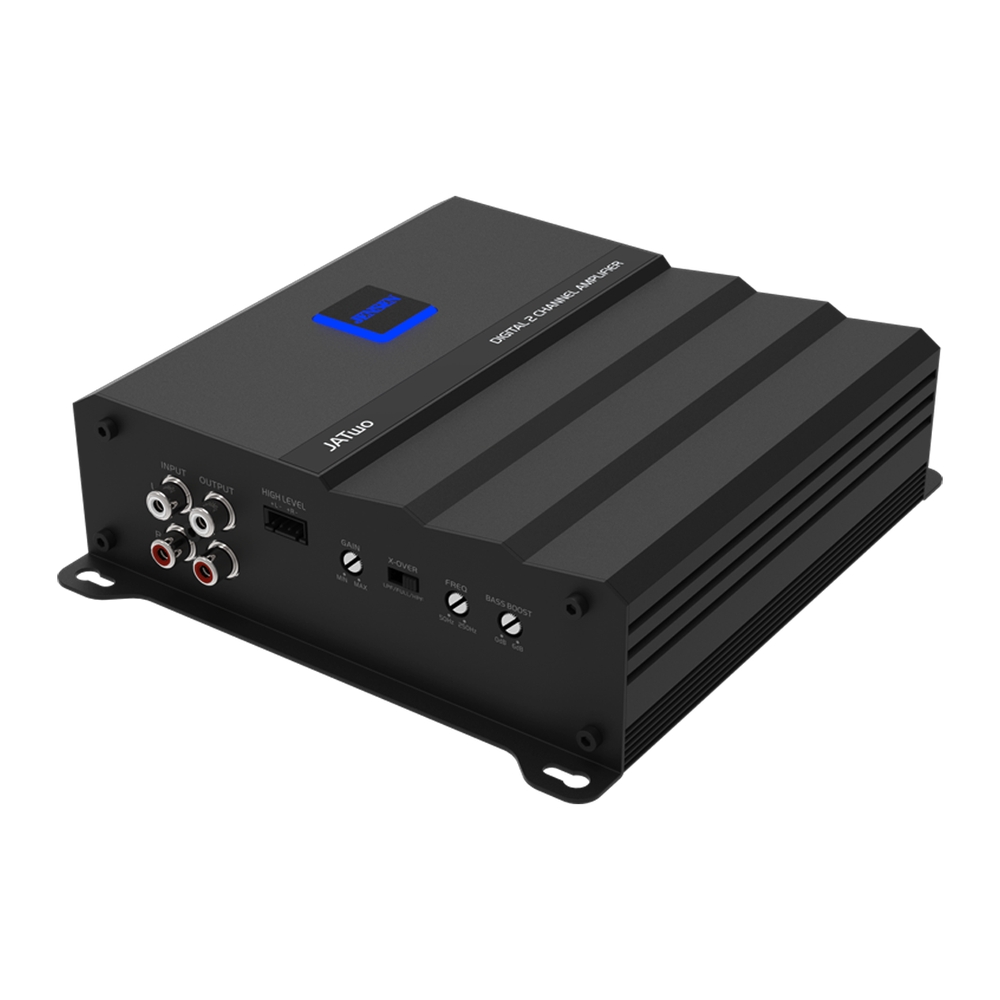

JATWO amp view from side A

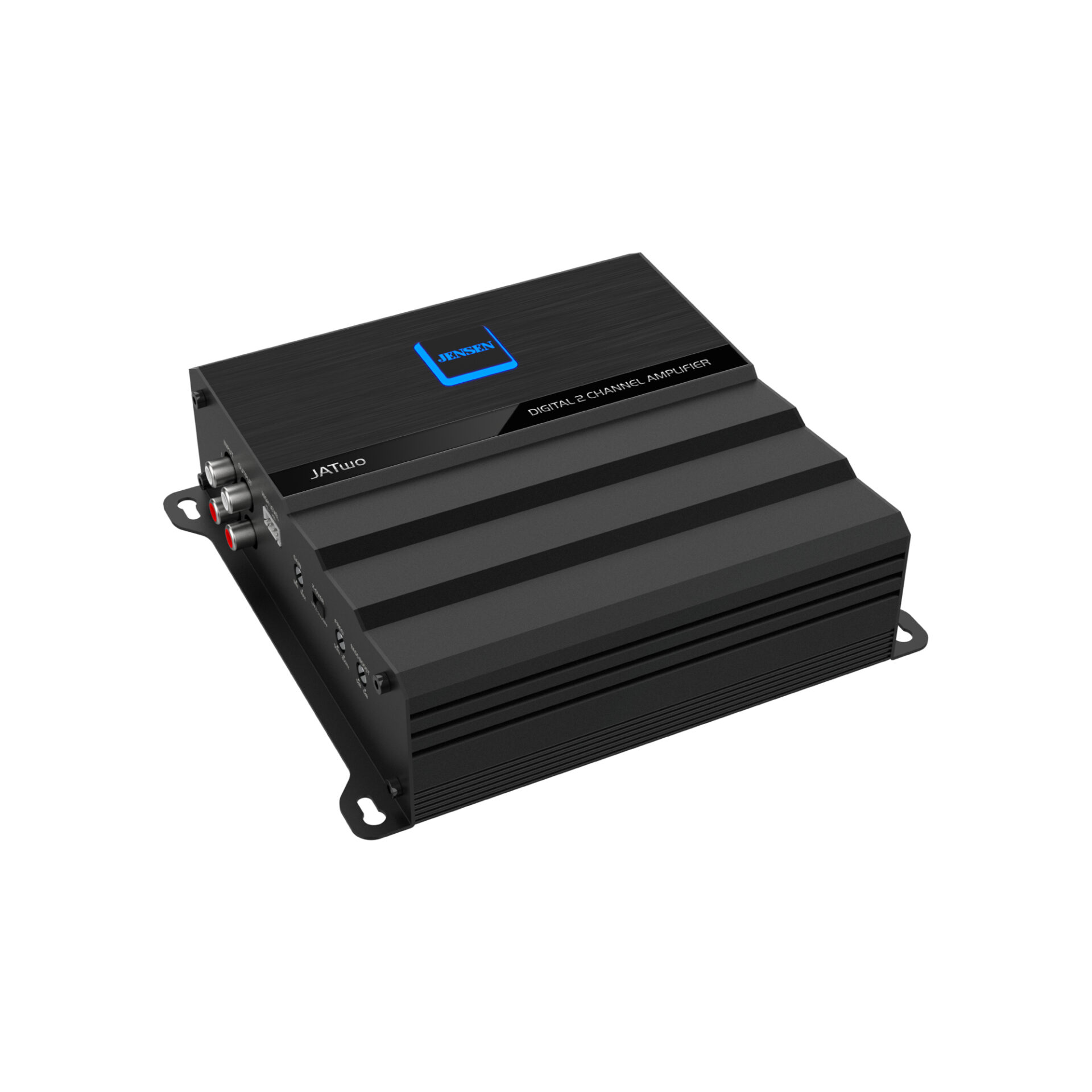

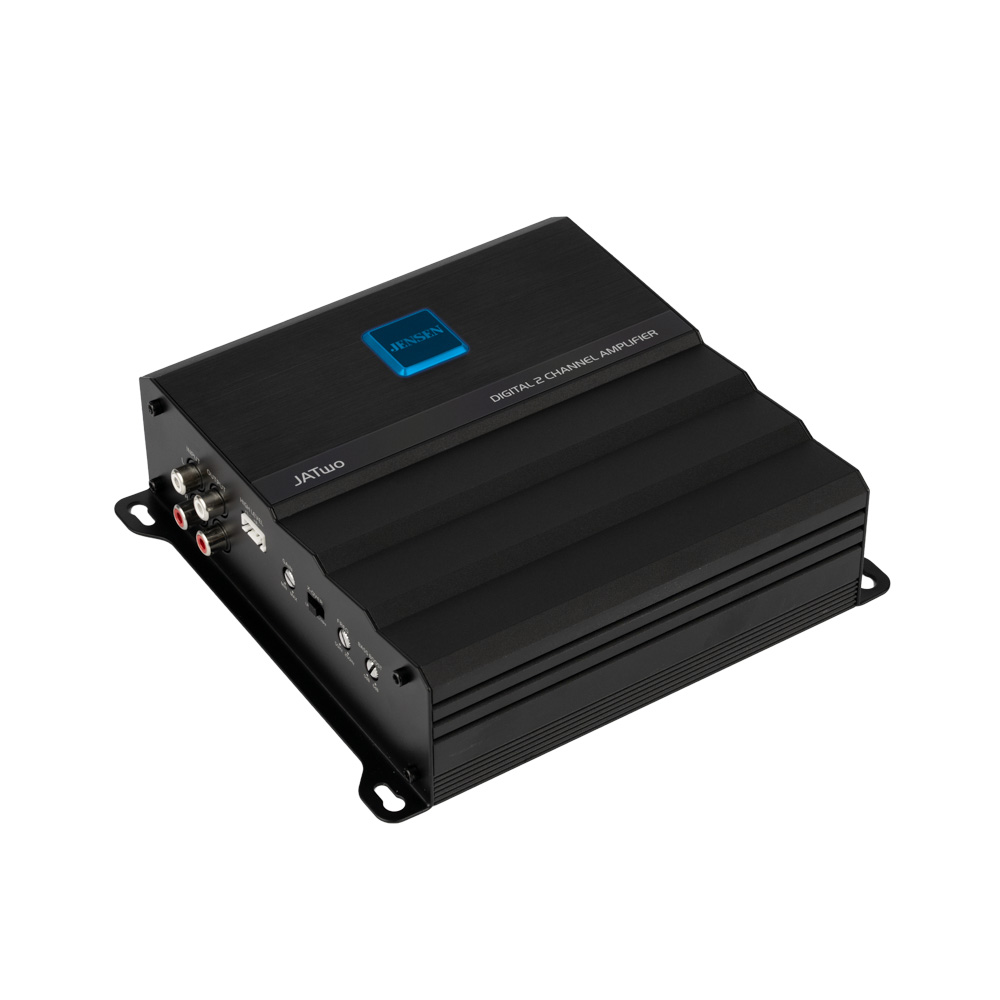

JATWO amp angled view

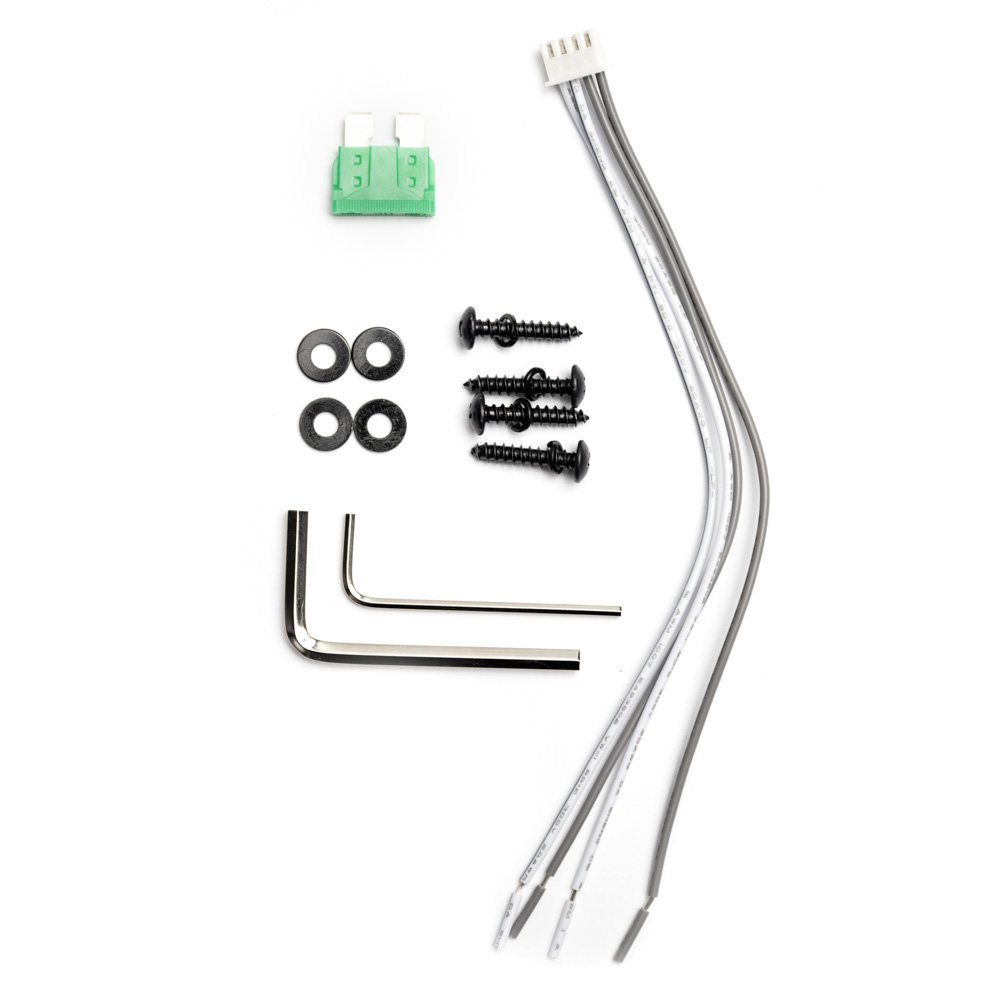

JATWO amp accessories

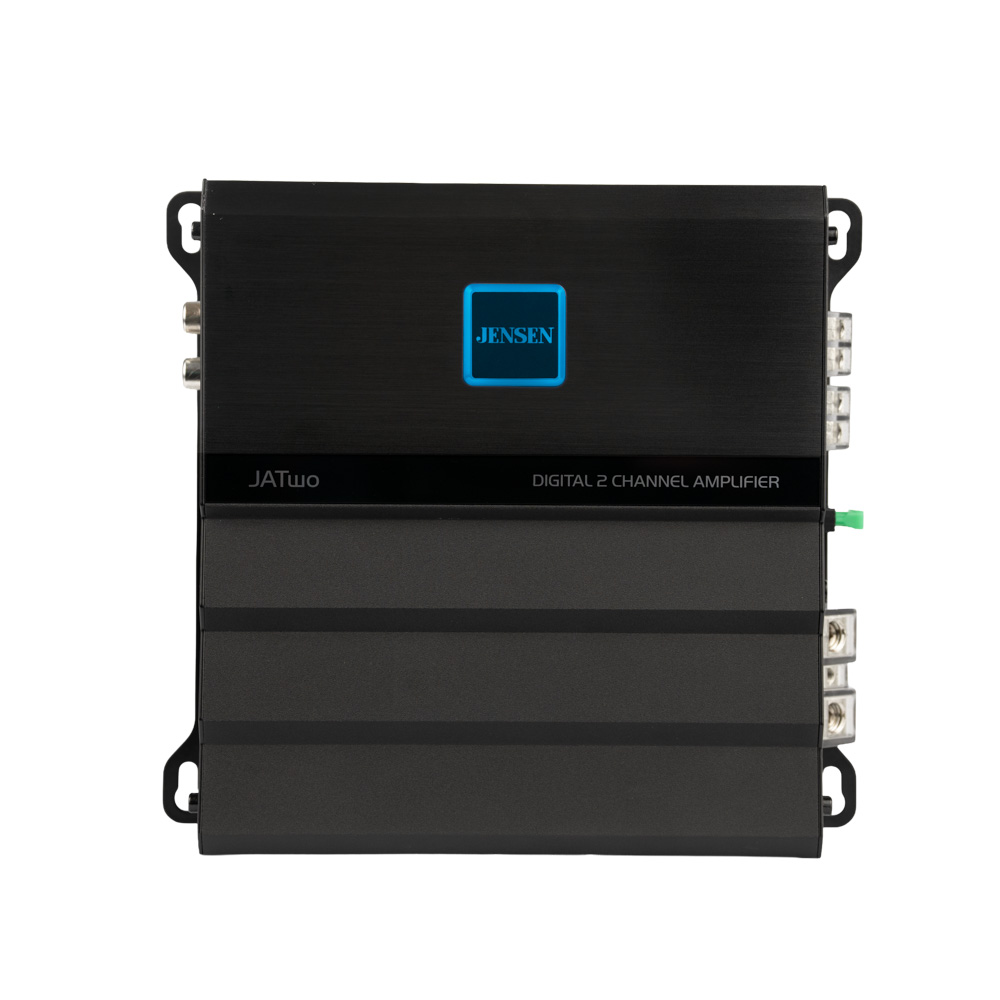

JATWO amp view from top

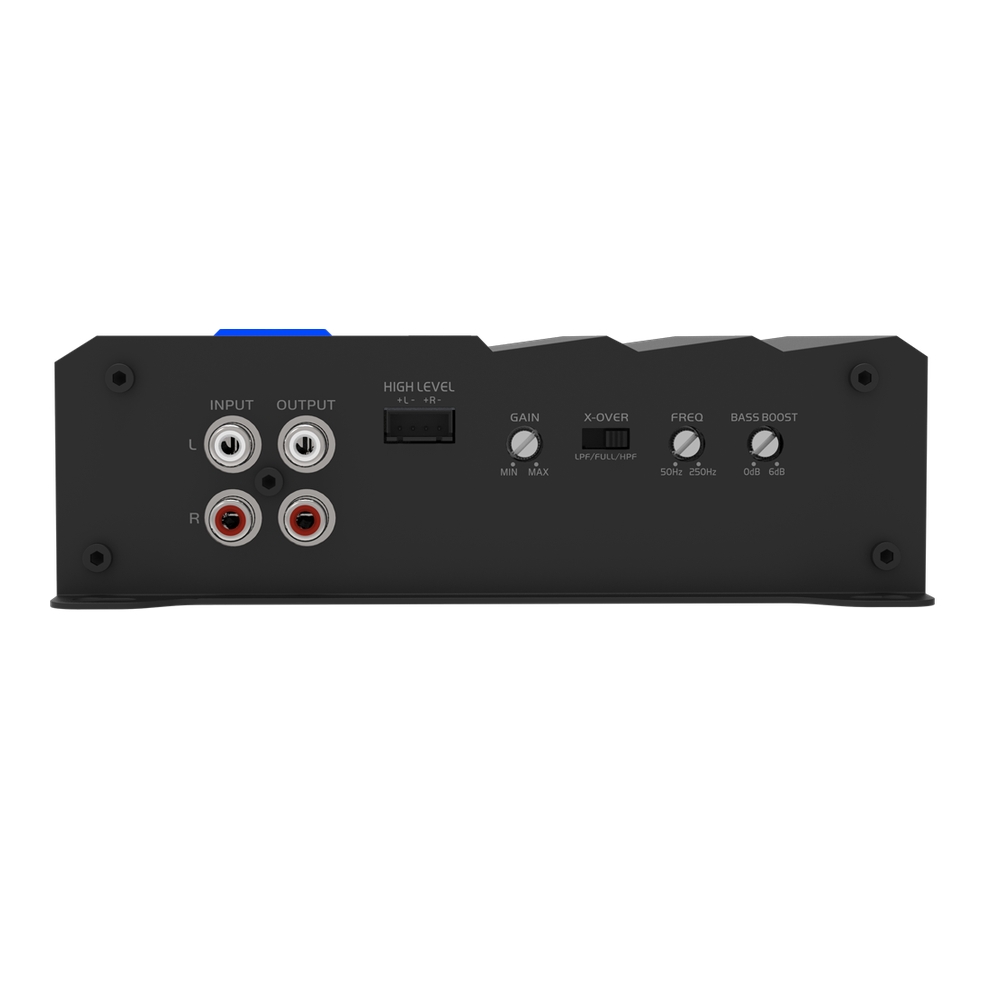

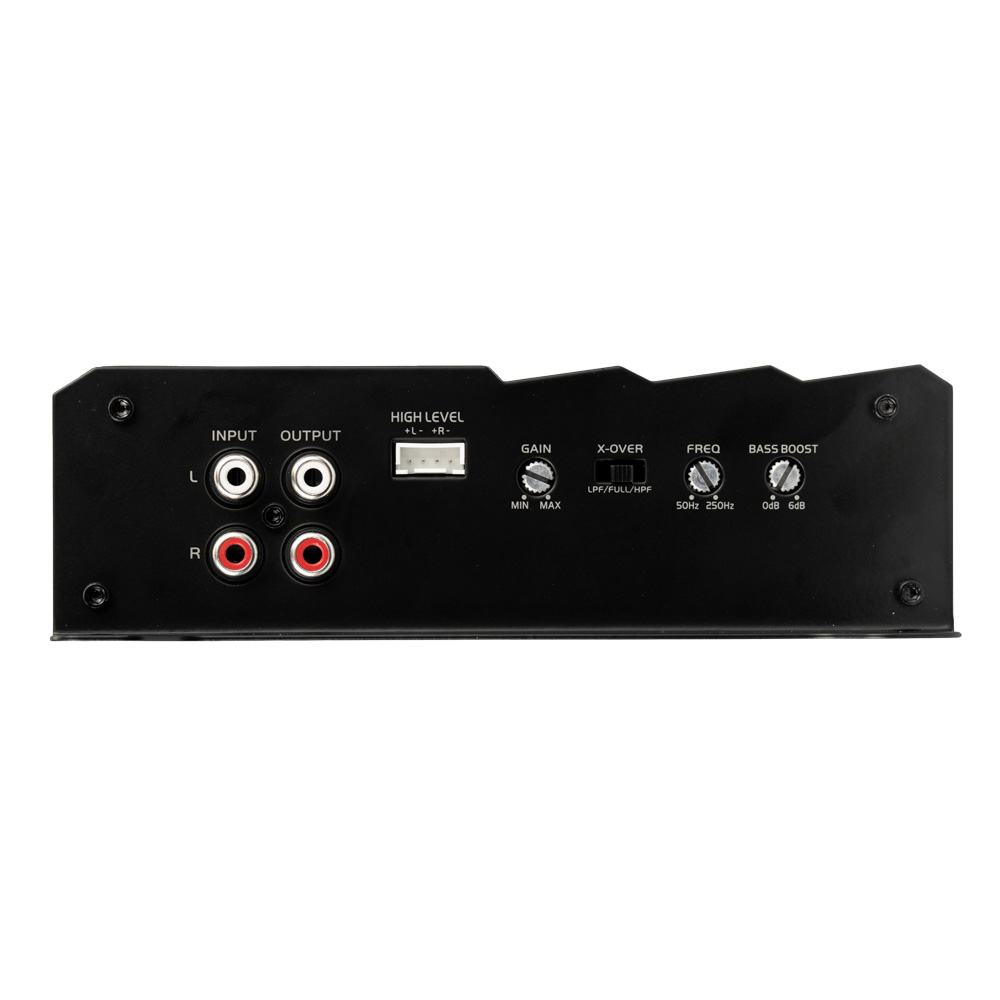

JATWO amp view from side B

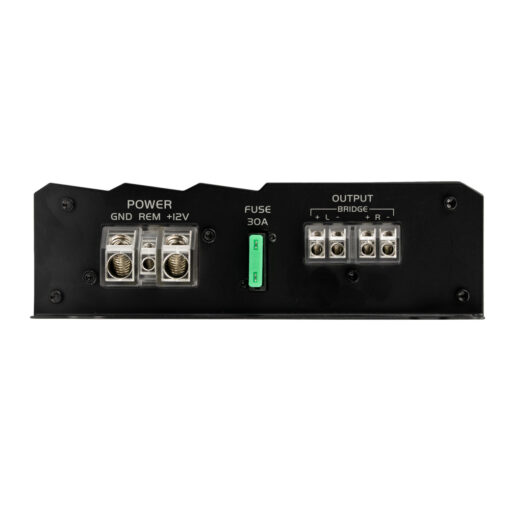

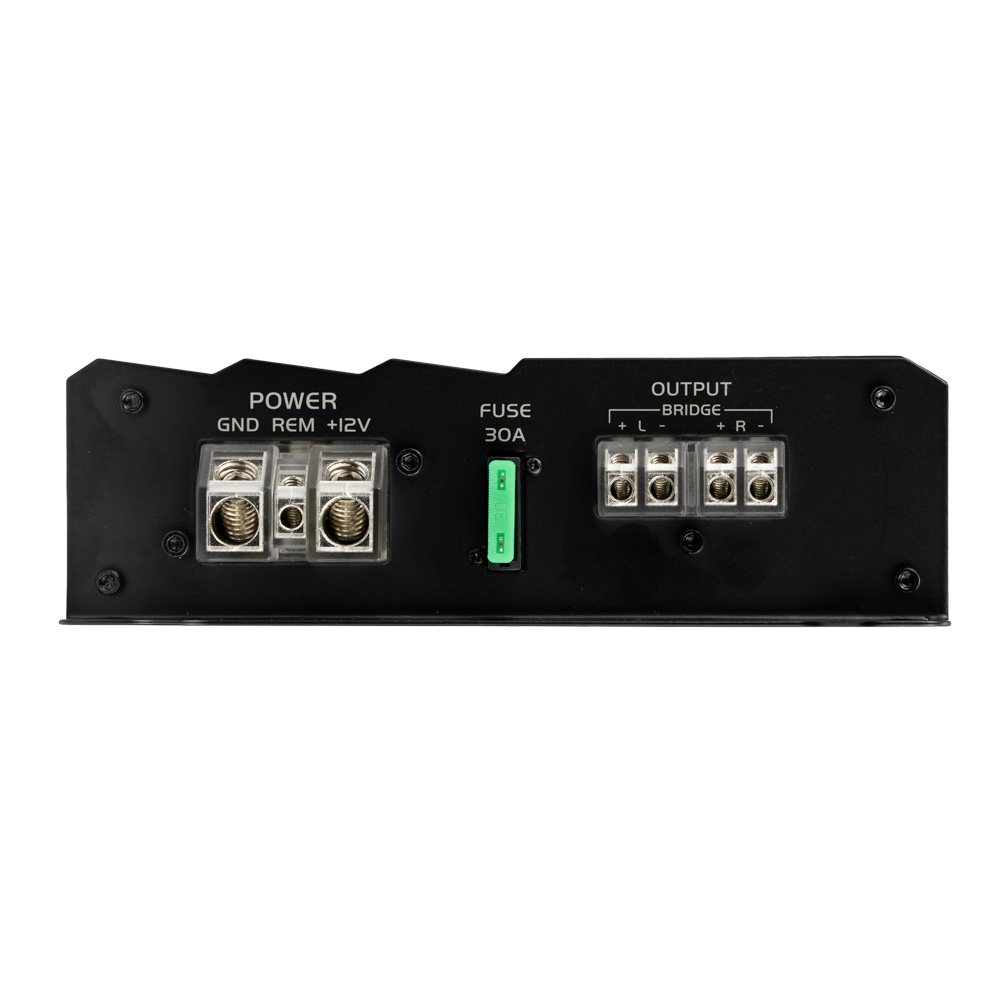

JATWO amp view from side A

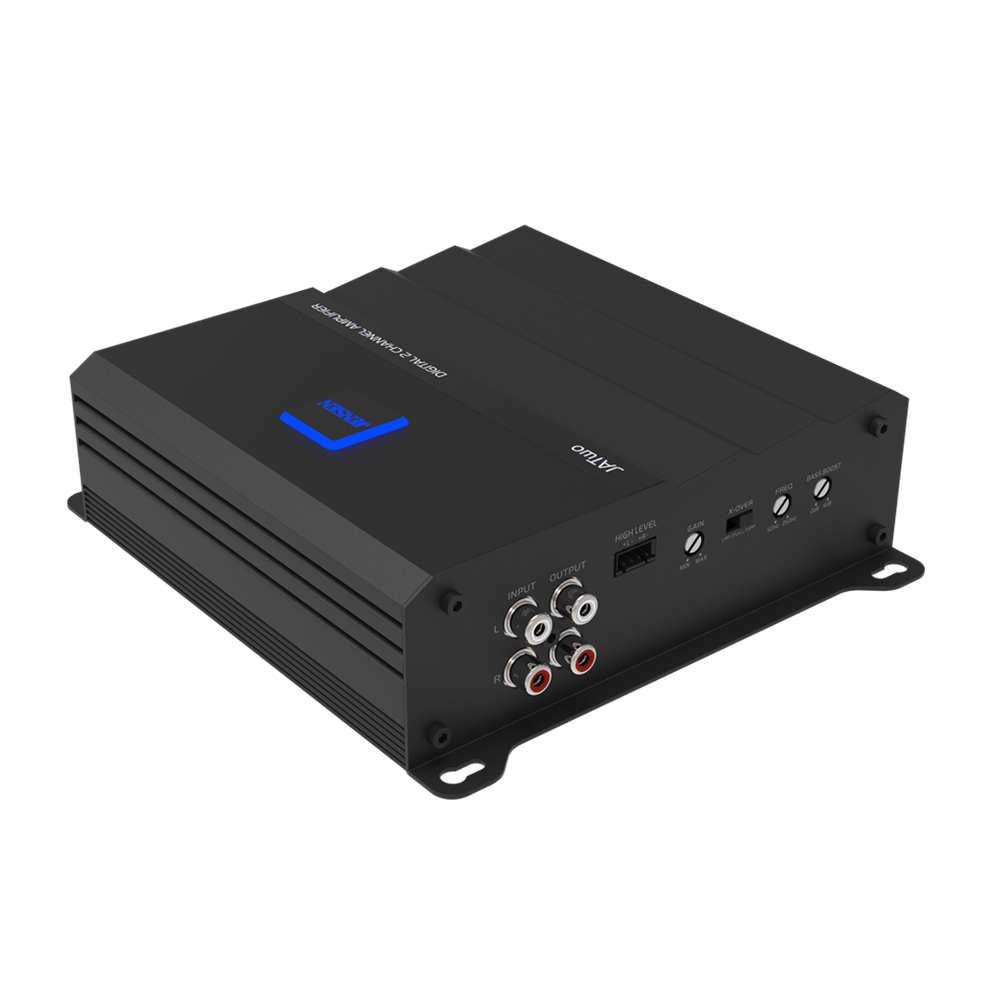

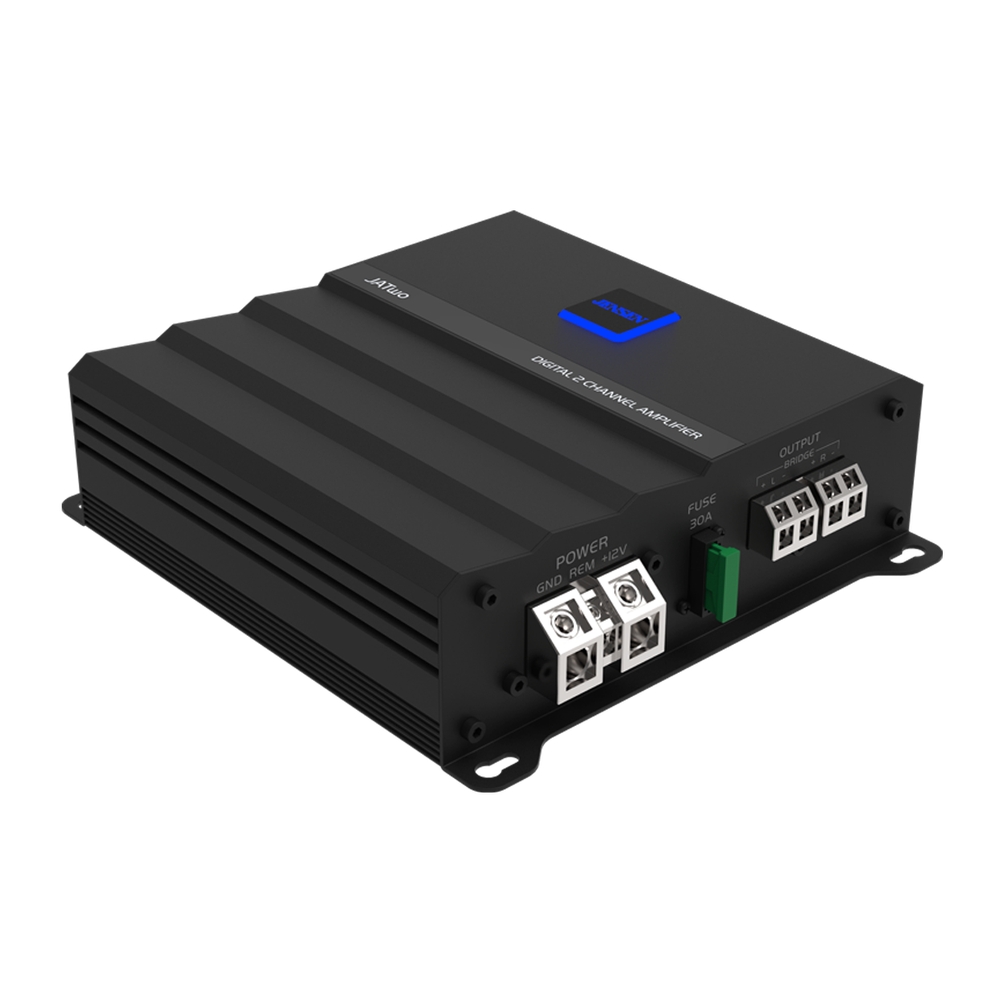

JATWO amp angled view
JATWO amp accessories

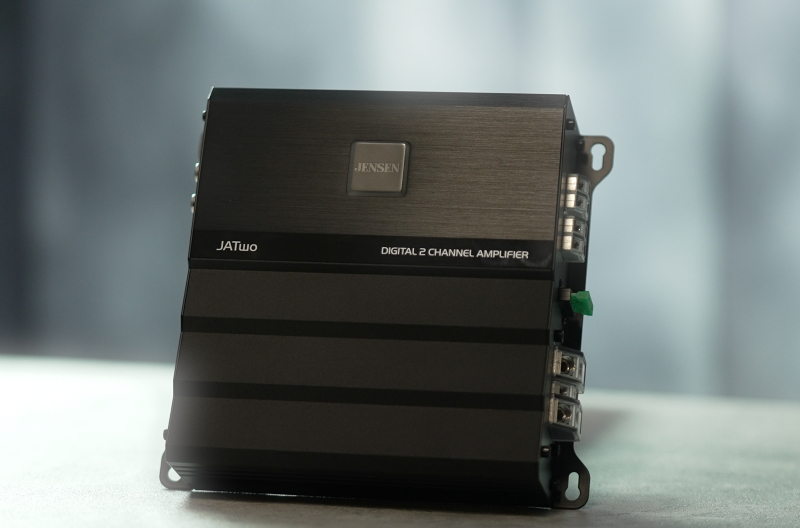

JATwo Amplifier 2-Channel MOSFET Amp

$219.99

  • 2-Channel MOSFET amplifier with Class D design
  • Selectable crossover: (high pass / low pass / full range)
  • Maximum Dynamic Power: 530 Watts
  • Dimensions: 1.99” x 6.54” x 6.77” (H x D x W)
  • CTA-2006-D Certified

*4-year limited warranty when registered within 60 days of purchase.

extend 2 year warranty image badge to 4 years
60 day return icon
free shipping icon



SKU: JATwo Category:

Redefine Your Sound.

JATwo banner shown with speakers on a table
adults celebrating in car with new car audio

Features a 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

what it looks like inside the amplifier showing parts

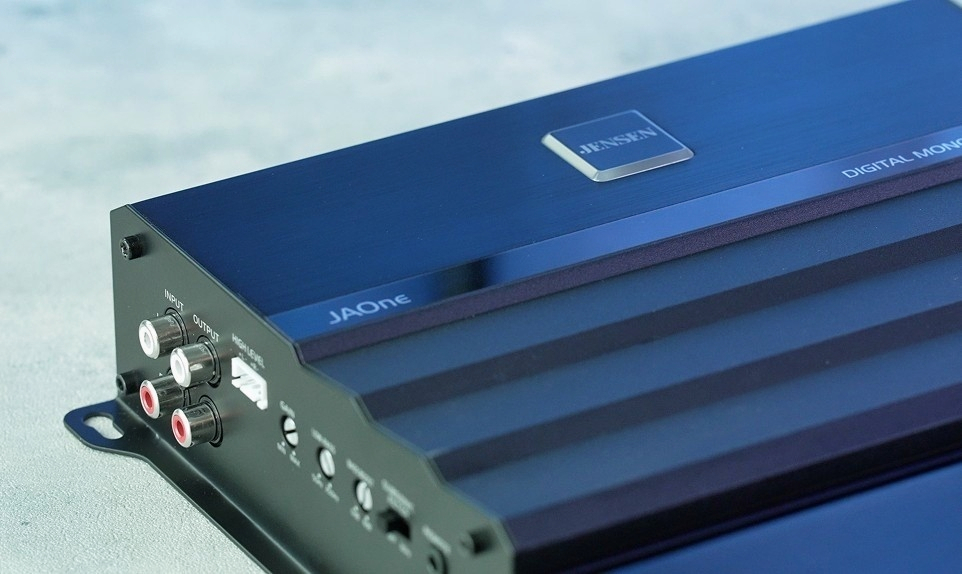

jaOne closeup image

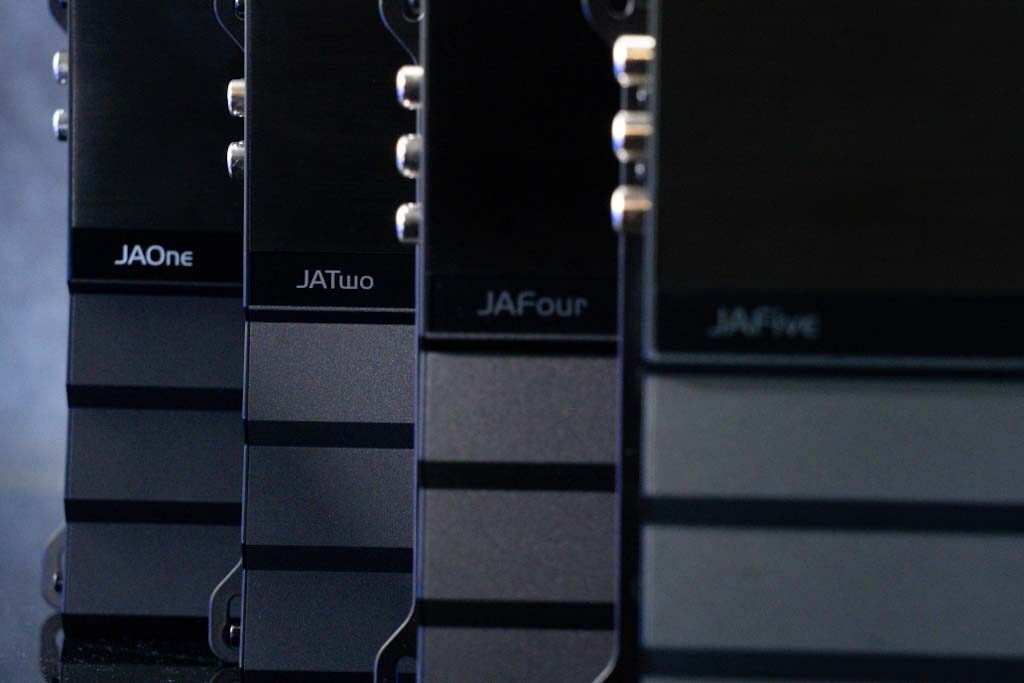

jatwo carousel

Apex Amplifiers

Higher power output with pure performance.

APEX Amplifiers stay cool at top output, even in tight spaces. Our high-efficiency digital design delivers maximum volume and clarity.

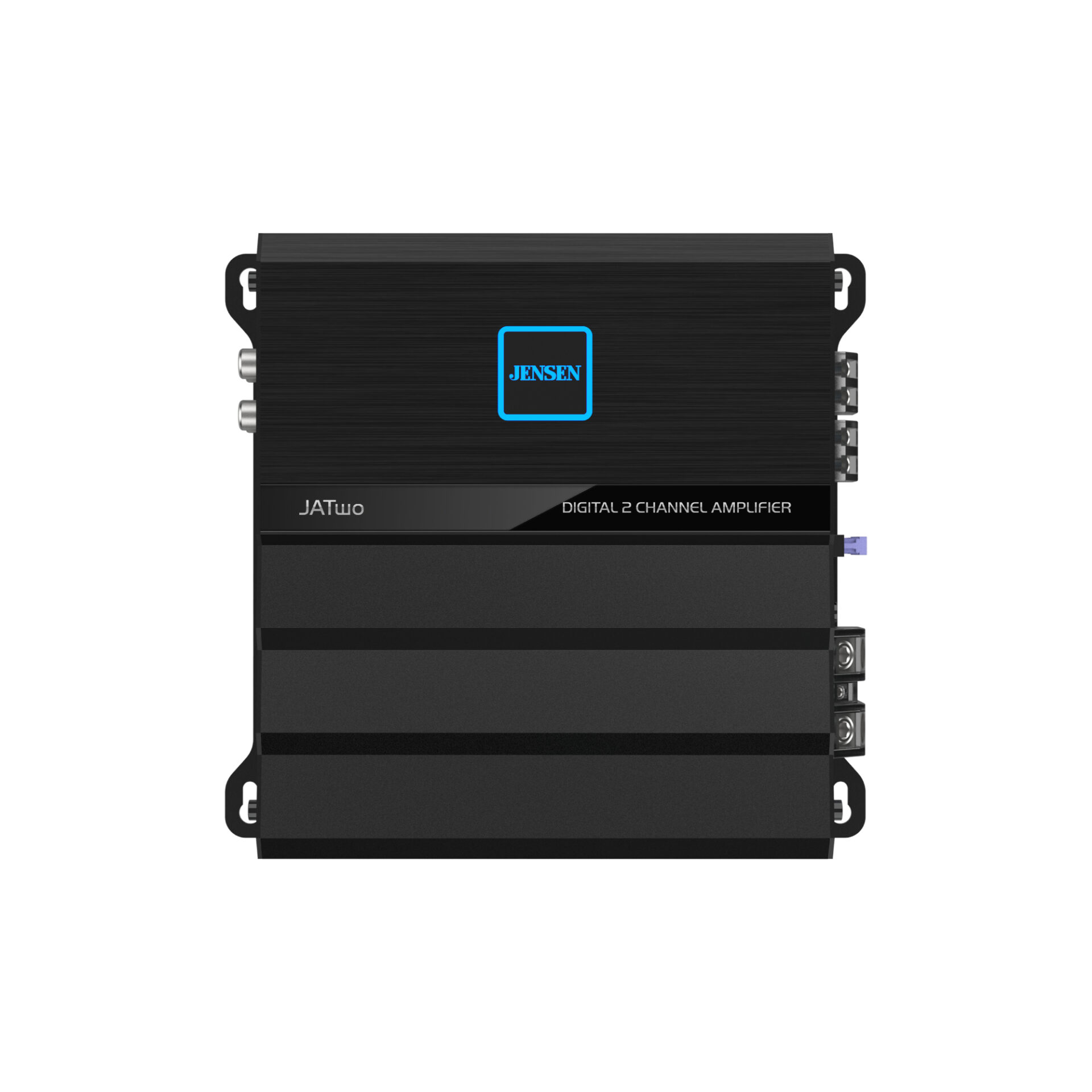

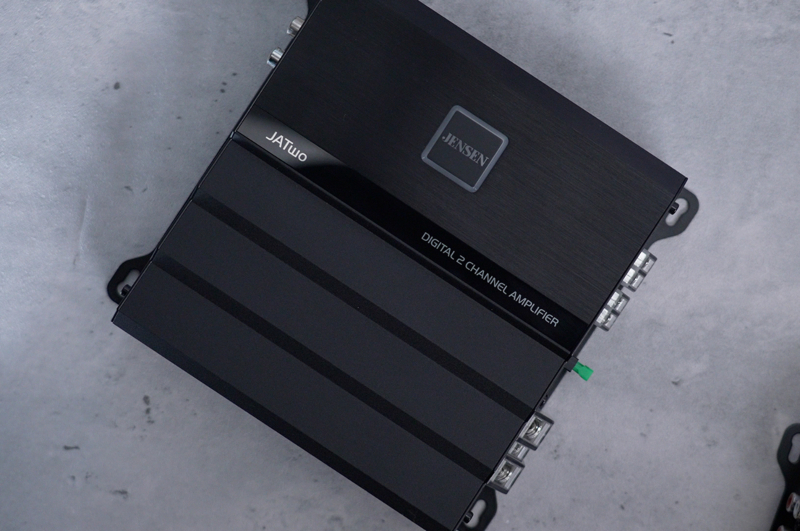

JATwo amplifier top down view
530 watts icon

Peak Power

This amp can reach a max dynamic power of 530 Watts for a powerful listening experience!

compact design icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

class d icon

Efficient Power Output

The JATwo Amp has a class D design for improved longevity and high efficiency power output.

rca icon

Easy Connection

This amp has RCA inputs for easy connection to any stereo system.

stay connected banner

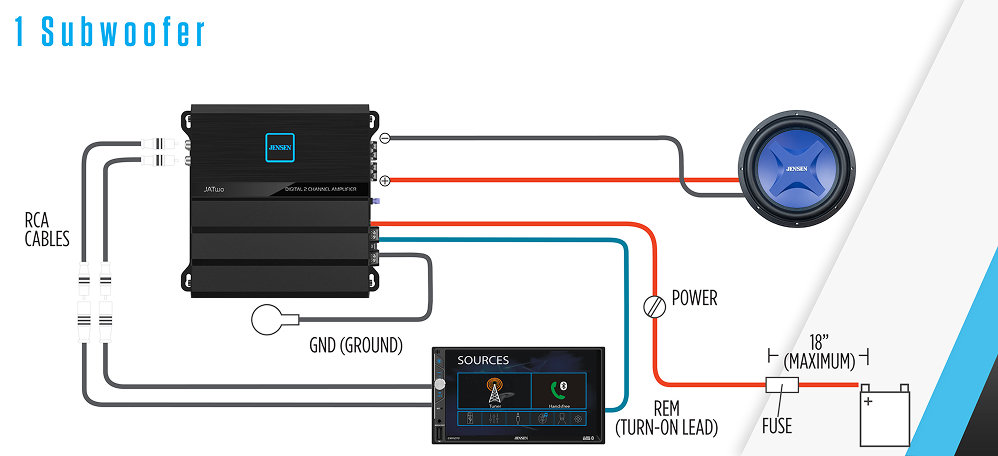

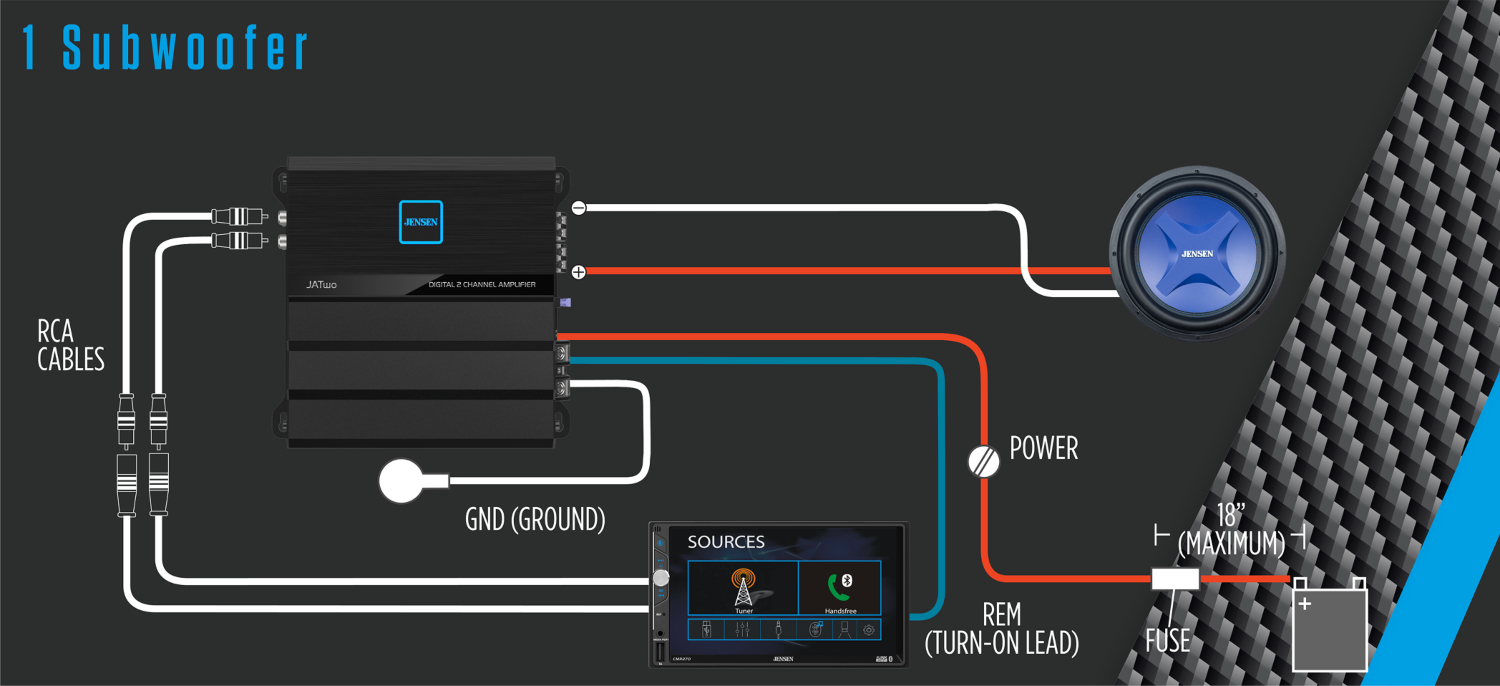

jatwo connection option to connect 1 Subwoofer

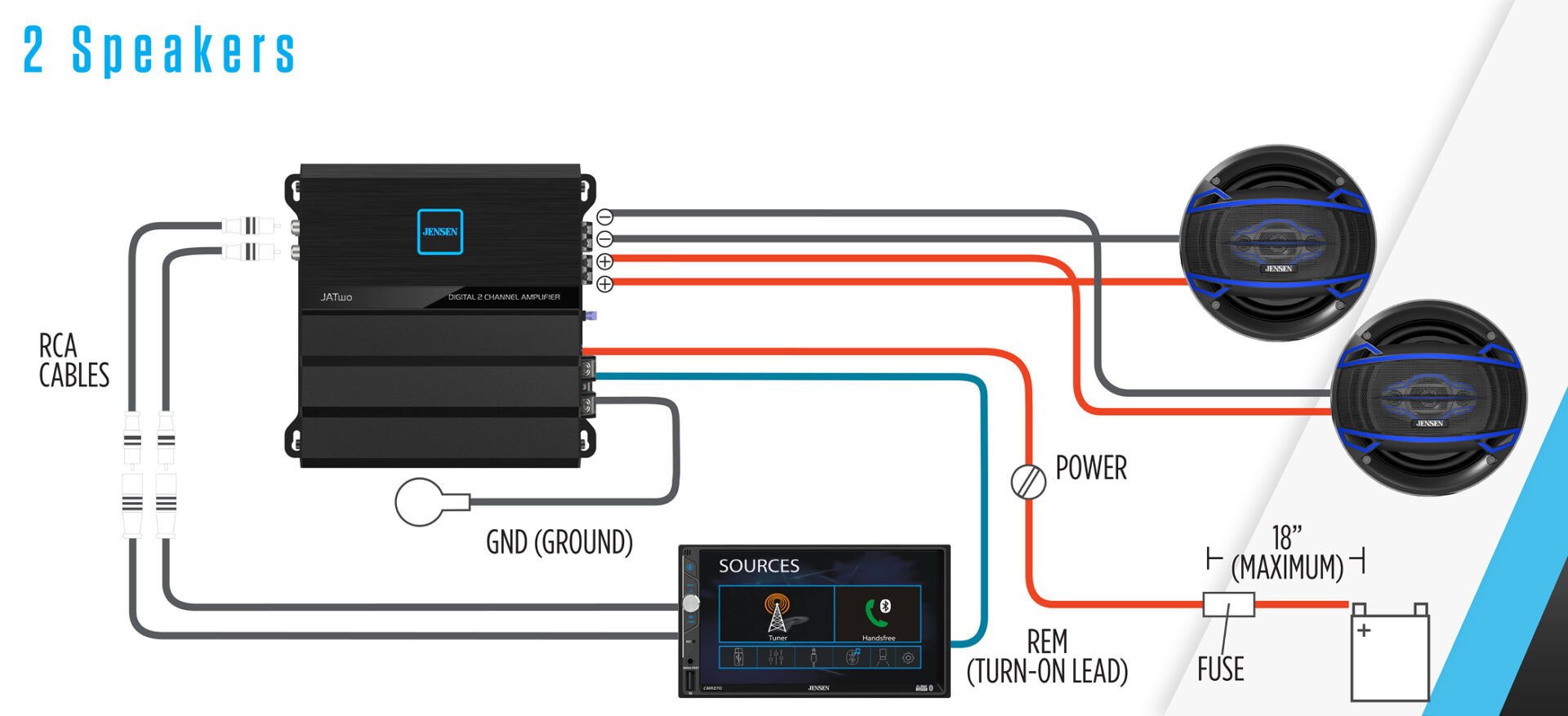

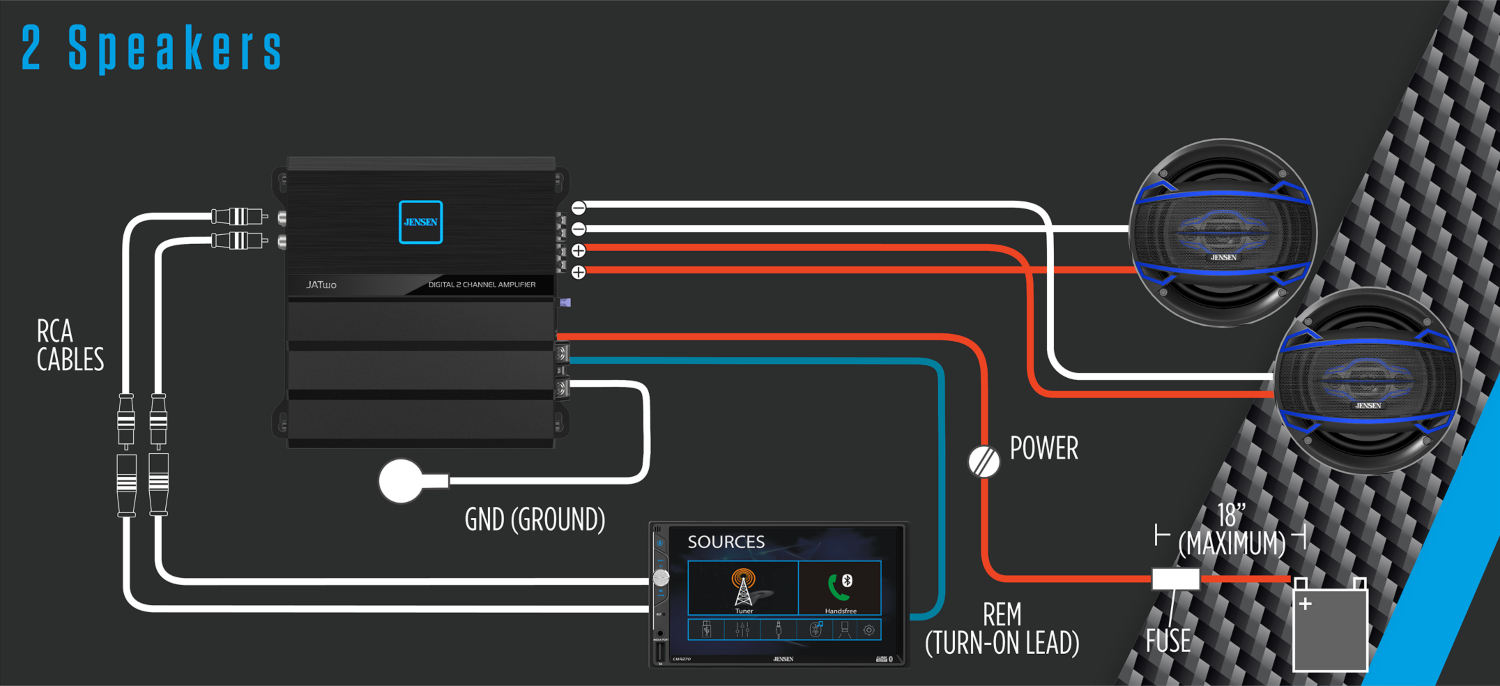

jatwo connection option to connect 2 speakers
Apex

Apex Series
Speaker Outputs

2
Class

D Digital
CTA-2006-D Certification

Certified
Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
2 Ohm Stable Stereo Operation

Yes
Total Dynamic Power

530 Watts
Crossover

Adjustable high-pass/low-pass/full range 50 Hz – 250 Hz
Frequency Response

20 Hz ~ 20 kHz
Gain Adjustment

Variable 300mV ~ 6V
Recommended Power/Ground Wire

8 AWG
Recommended Speaker Wire

12 AWG
Fuse Size and Type

20A x 3

Manuals & More

JATwo

Additional Features and Detailed Specifications:

Specification Details
Variable Gain 300 mV – 6 V
Bass Boost Variable boost at 45 Hz (0–6 dB)
Speaker Impedance 2 or 4 Ohm
Continuous Power Output (1% THD+N)
  • 125 Watts RMS x 2 Channels @ 4 Ohms
  • 215 Watts RMS x 2 Channels @ 2 Ohms
  • 445 Watts RMS x 1 Channel @ 4 Ohms (Bridged)
Maximum Dynamic Power Output (10% THD+N)
  • 150 Watts x 2 Channels @ 4 Ohms
  • 265 Watts x 2 Channels @ 2 Ohms
  • 485 Watts x 1 Channel @ 4 Ohms (Bridged)
Frequency Response 20 Hz – 20 kHz
Signal to Noise Ratio 87 dBA (reference: 1 Watt RMS)
Total Harmonic Distortion (THD+N) <0.12% at 1 Watt RMS
