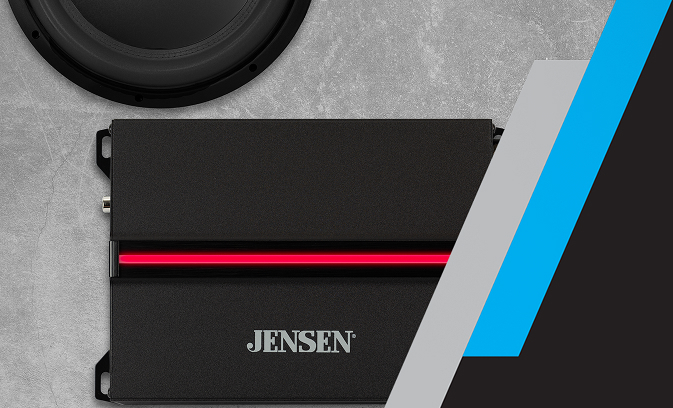

1000 Watt Class D Mono Amp with Bluetooth App Control – XDA91RB

Jensen DSP AMP App (Apple®/android™)
RGB Custom Color Illumination
Class D Design
High Level (Speaker Wire) Input
Low Level (RCA) Inputs
Dimensions: 2.16″ X 9.56″ X 5.59″ (HXWXD)
Adjustable Bass Boost At 45 HZ


*Upgrade to 3-year Warranty by Registering Your Professionally Installed Item within 60 Days of Purchase.

1 year 3 year warranty information for subwoofer

Does your amp look different? See Former Generation


SKU: XDA91RB Category:

Pardon Our Construction. We are Currently Working on this product page. Please ignore any temporary discrepancies

connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
adults celebrating in car with new car audio

Features bass control, variable gain adjustment, selectable low pass crossover, and Class D Technology for great sound!

XDA91RB Model Features

1000 Watts Peak Power Icon

Peak Power

This amp can reach a peak power of 1000 Watts for a powerful listening experience!

Compact Amp Design Icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

Class D Design Icon

Efficient Power Output

The XDA91RB Amp’s Class D design provides improved longevity and high efficiency power output.

RCA Spaker Wire Inputs Icon

Flexible Inputs

This amp has flexible input options and selectable crossovers, allowing for a customizable sound experience.

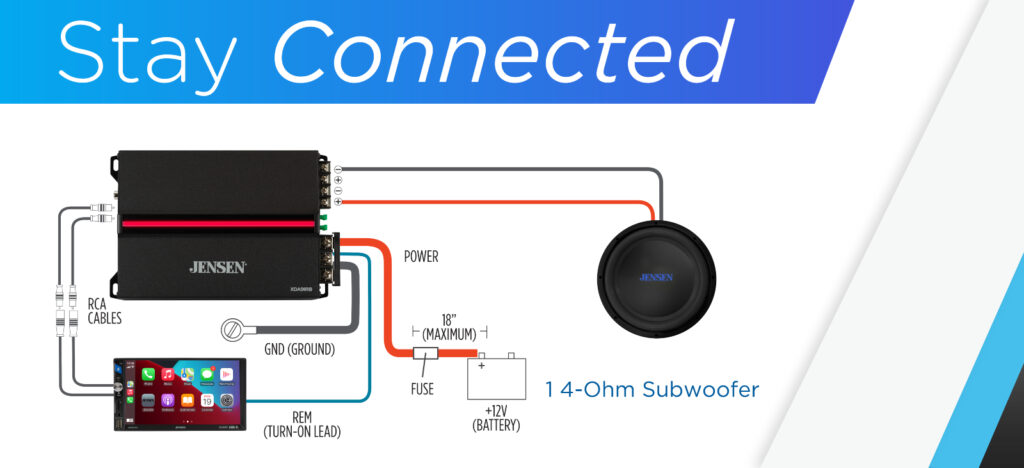

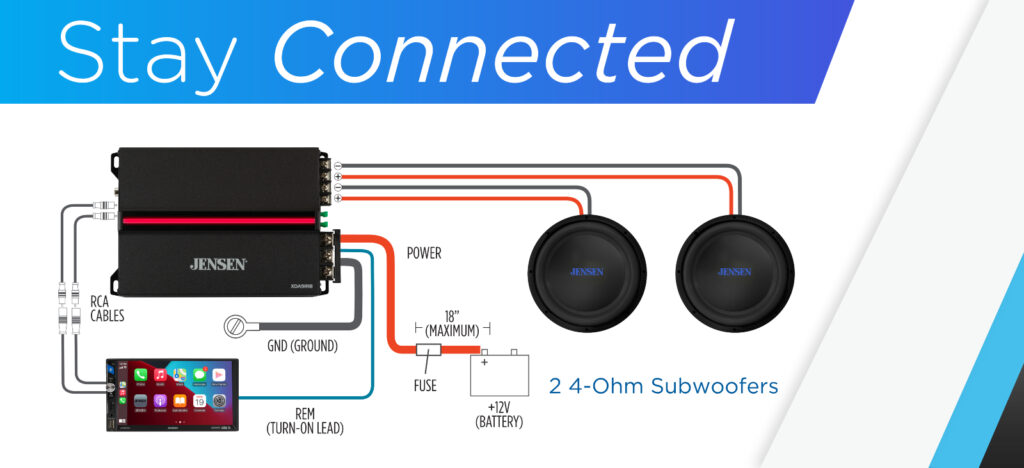

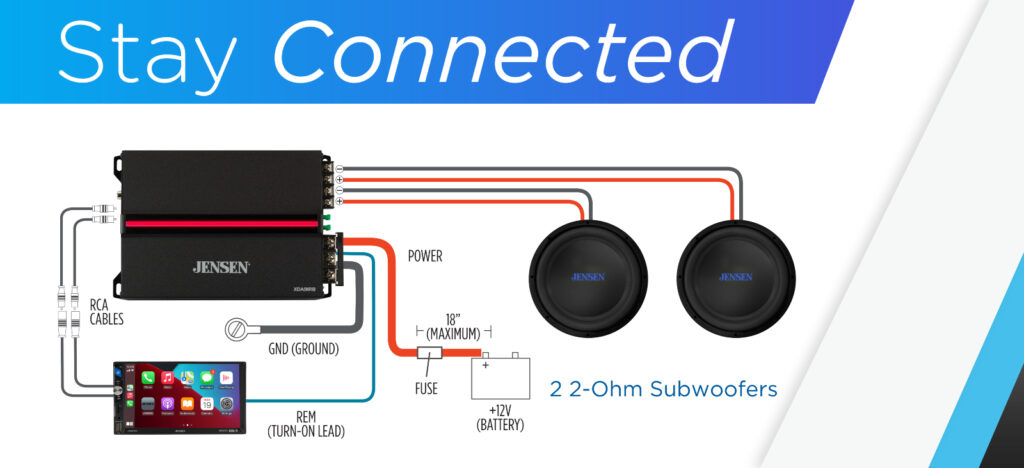

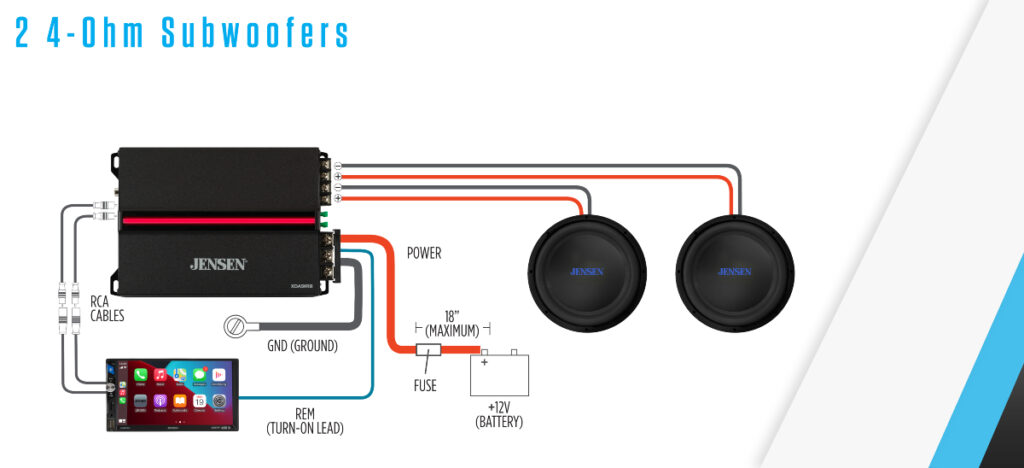

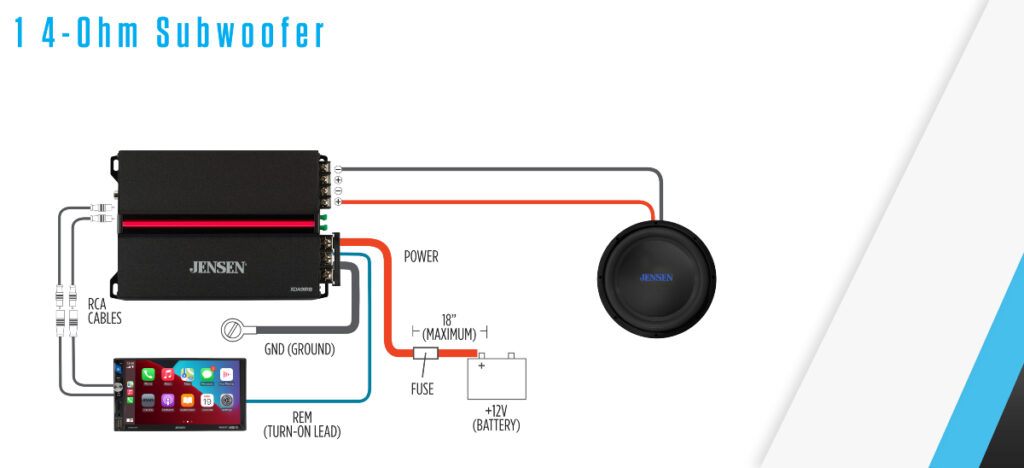

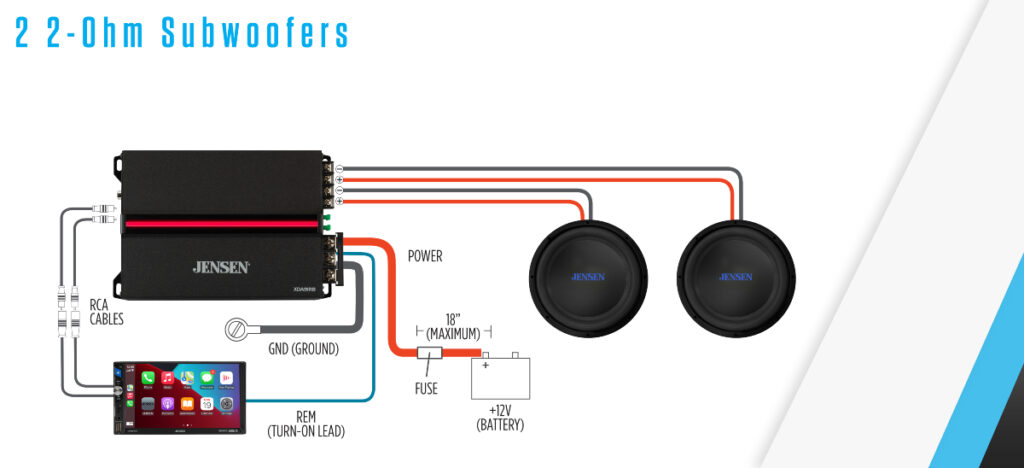

XDA91RB Connection Diagram back of unit Setup 1
XDA91RB Connection Diagram back of unit Setup 2
XDA91RB Connection Diagram back of unit Setup 3
Speaker Outputs

Mono

Class

D Digital

Speaker Inputs

High level (Speaker Wire), Low Level (RCA)

Illumination

RGB

App Control

Yes

Crossover

Adjustable low-pass crossover (32 Hz – 350 Hz)

Frequency Response

20 Hz ~ 250 Hz

Power

240 Watts RMS x 1 channel @ 4 ohms, 400 Watts RMS x 1 channel @ 2 ohms, 600 Watts RMS x 1 channel @ 1 ohm

Signal to Noise Ratio

68 dBA

Total Dynamic Power

1200 Watts

Outputs

RCA Pass Through

RMS Power Per Channel (2 Ohm)

101W -400W

Gain Adjustment

Variable 200 mV ~ 6 V

Adjustable Bass Boost

45 Hz

Power Supply

PWM MOSFET

Fuse Size and Type

25A x 2

Dimensions

2.16″ X 9.56″ X 5.59″ (HXWXD)

Specifications

CLASS D MONO AMPLIFIER – the 1 channel configuration ensures an overall improvement in sound quality and power output while reducing distortion and refining efficiency

CLASS D EFFICIENT DESIGN – produces 1,200 Watts of total dynamic power, 600 Watts RMS x 1 channel @ 1 ohm, 400 Watts RMS x 1 channel @ 2 ohms and 240 Watts RMS x 1 channel @4 ohms

RGB ILLUMINATION VIA BLUETOOTH APP – the Jensen DSP app allows you to have full control over your amplifiers various functions such as: Illumination, Remote Bass, Frequency, Volume & Gain

FULL RANGE CROSSOVERS & BASS BOOST – when constructing your Jensen mono amplifier, we added a low pass variable crossover for versatility and use of full range speakers or subwoofers plus a variable bass boost at 45Hz

SHORT CIRCUIT PROTECTION – given the vast amounts of dynamic power in your mono amplifier we built-in a thermal DC offset safety protection

Specifications:

  • Jensen DSP Amp app (Apple®/Android™) to control illumination and system set-up via Bluetooth®
    (Free App required for system set-up)
  • RGB Custom color illumination via Bluetooth app control
  • Class D design
  • Amplifier dimensions: 2.16″ x 9.56″ x 5.59″ (HxWxD)
  • Inputs / Outputs:
    • High level (speaker wire)
    • Low level (RCA)
    • RCA Pass-thru outputs
  • Power Output:
    • 240 Watts RMS x 1 channel @ 4 ohms
    • 400 Watts RMS x 1 channel @ 2 ohms
    • 600 Watts RMS x 1 channel @ 1 ohm
    • Total dynamic power: 1,200 Watts
  • Features:
    • Frequency response: 20 Hz ~ 350 Hz
    • Signal to noise ratio 68 dBA
    • Adjustable bass boost at 45 Hz
    • Gain adjustment: 200 mV ~ 6 V
    • Adjustable low-pass x-over: 32 Hz – 320 Hz
    • Power terminal connector: 4 – 8 AWG
    • Speaker terminal connector: 12 – 18 AWG
    • Fuse size: 25 A x 2
