XDA92RB Front/Top of Car Amplifier
XDA92RB Side of Car Amplifier
XDA92RB Side A of Car Amplifier Connections
XDA92RB Side B of Car Amplifier Connections
XDA92RB bottom/back of car amplifier with manufacturer's label
XDA92RB Angled View of Car Amplifier Red Illumination
XDA92RB Front/Top of Car Amplifier
XDA92RB Side of Car Amplifier
XDA92RB Side A of Car Amplifier Connections
XDA92RB Side B of Car Amplifier Connections
XDA92RB bottom/back of car amplifier with manufacturer's label
XDA92RB Angled View of Car Amplifier Red Illumination

600 Watt Class D 2-Channel AMP with Bluetooth App Control – XDA92RB

Jensen DSP AMP App (Apple®/android™)
RGB Custom Color Illumination
Class D Design
High Level (Speaker Wire) Input
Low Level (RCA) Inputs
Dimensions: 2.16″ X 9.56″ X 5.59″ (HXWXD)
Adjustable Bass Boost At 45 HZ


*Upgrade to 3-year Warranty by Registering Your Professionally Installed Item within 60 Days of Purchase.

1 year 3 year warranty information for subwoofer

Does your amp look different? See Former Generation


SKU: XDA92RB Category:

Pardon Our Construction. We are Currently Working on this product page. Please ignore any temporary discrepancies

connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
xda92rb new amplifier v2 shown on table with 2 speakers
adults celebrating in car with new car audio

Features 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

XDA92RB Model Features

600 Watts Peak Power Icon

Peak Power

This amp can reach a peak power of 600 Watts for a powerful listening experience!

Compact Amp Design Icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

Class D Design Icon

Efficient Power Output

The XDA92RB Amp’s Class D design provides improved longevity and high efficiency power output.

RCA Spaker Wire Inputs Icon

Flexible Inputs

This amp has flexible input options and selectable crossovers, allowing for a customizable sound experience.

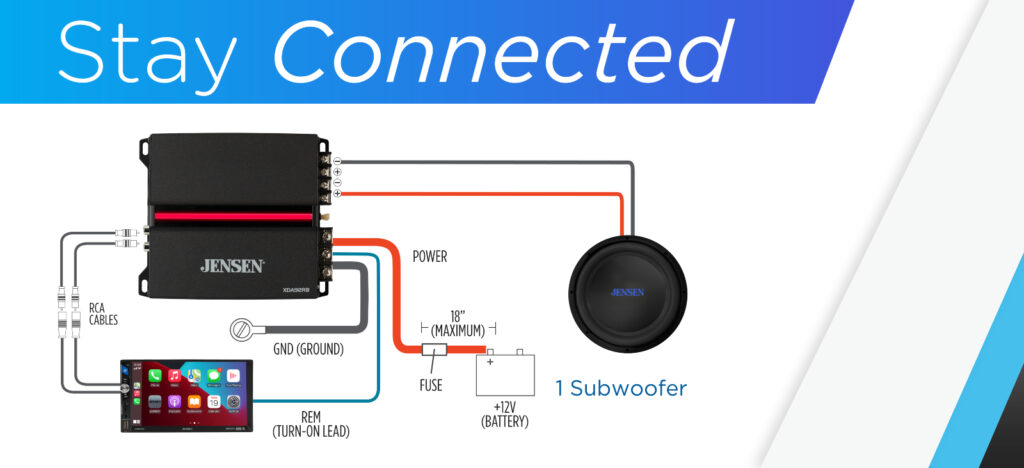

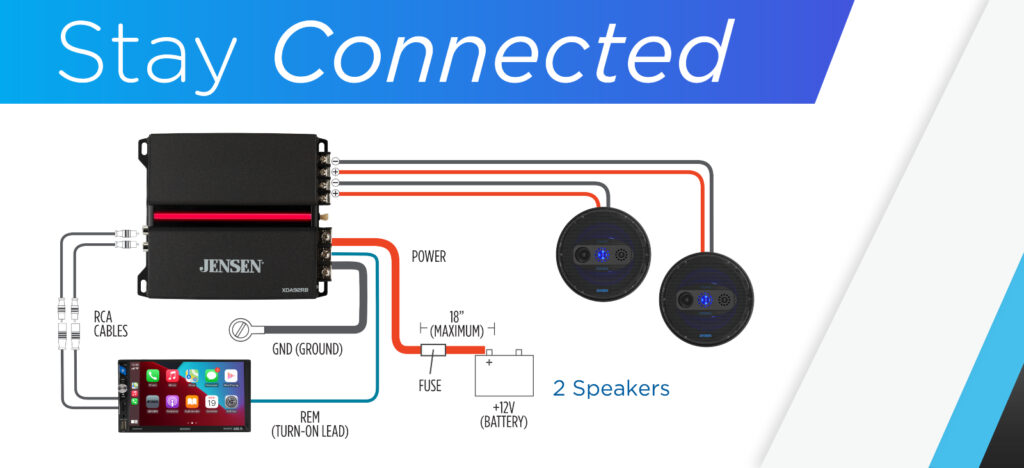

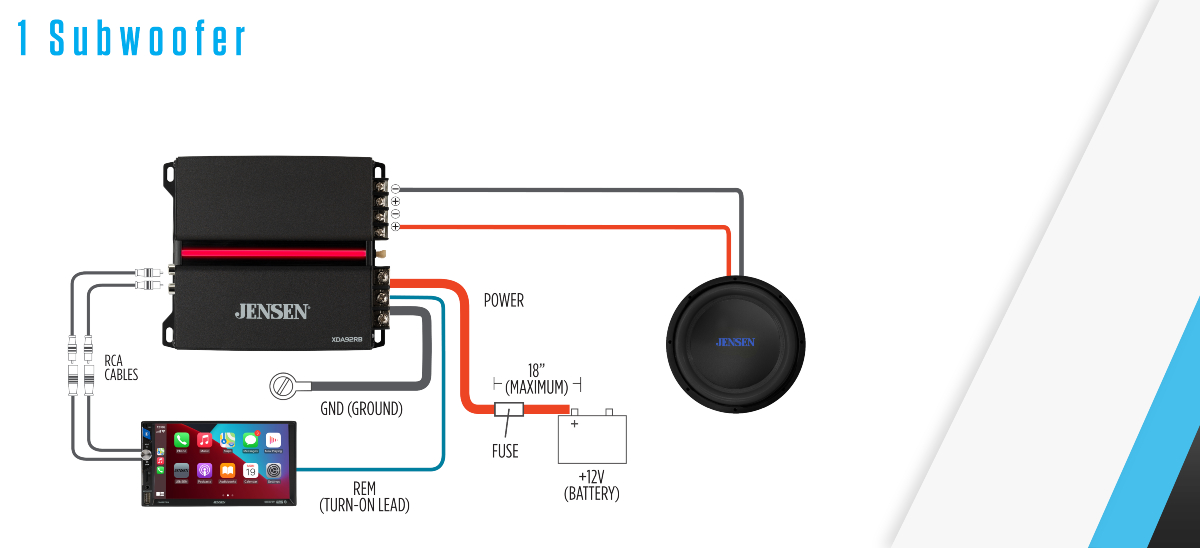

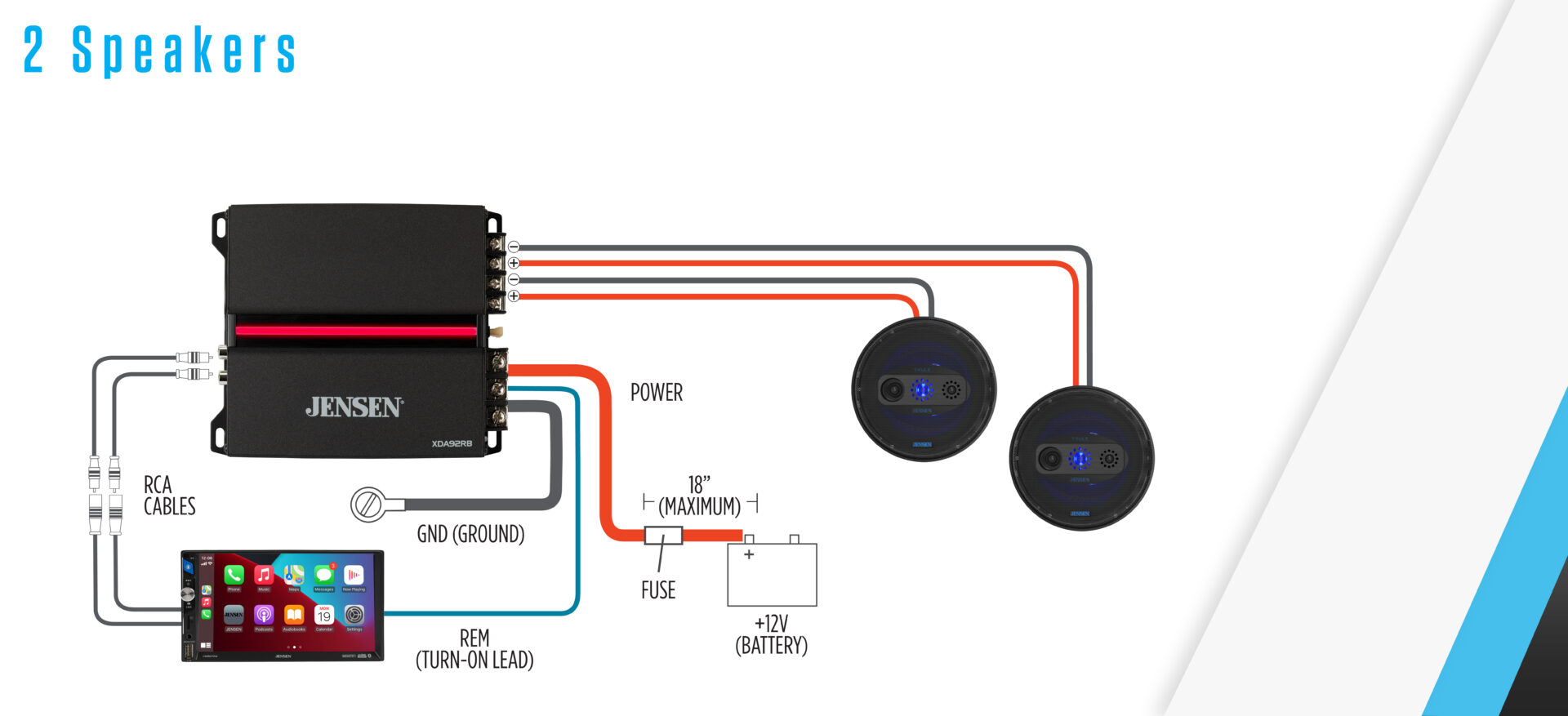

XDA92RB Connection Diagram back of unit Setup 1
XDA92RB Connection Diagram back of unit Setup 1
Speaker Outputs

2
Class

D Digital
Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
Bridgeable

Yes
2 Ohm Stable Stereo Operation

Yes
Illumination

RGB
App Control

Yes
Crossover

Adjustable High and Low-Pass Crossovers (32-320 Hz)
Frequency Response

20 Hz ~ 20 kHz
Power

80 Watts RMS x 2 channels @ 4 ohms, 120 Watts RMS x 2 channels @ 2 ohms, 240 Watts RMS x 1 channel @ 4 ohms (bridged)
Signal to Noise Ratio

68 dBA
Total Dynamic Power

600 Watts
Outputs

RCA Pass Through
RMS Power Per Channel (2 Ohm)

51-75W
Gain Adjustment

Variable 200 mV ~ 6 V
Adjustable Bass Boost

45 Hz
Power Supply

PWM MOSFET
Fuse Size and Type

25A x ATO
Dimensions

2.16″ x 6.57″ x 5.59″ (HxWxD)
Recommended Power/Ground Wire

4-8 AWG
Recommended Speaker Wire

12-18 AWG

Specifications

CLASS D EFFICIENT DESIGN

Produces 600 Watts of total dynamic power, 240 Watts RMS x 1 channel @ 4 ohms and 80 Watts RMS x 2 channels @ 4 ohms

RGB ILLUMINATION VIA BLUETOOTH APP

The Jensen DSP app allows you to have full control over your amplifiers various functions such as: Illumination, Remote Bass, Frequency, Volume & Gain

FULL RANGE CROSSOVERS & BASS BOOST

When constructing your Jensen 2-channel amplifier, we added a low pass variable crossover for versatility and use of full range speakers or subwoofer plus a variable bass boost at 45Hz

Specifications

  • Jensen DSP Amp app (Apple®/Android™) to control illumination and system set-up via Bluetooth®
    (Free App required for system set-up)
  • RGB Custom color illumination via Bluetooth app control
  • Class D design
  • Amplifier dimensions: 2.16″ x 6.57″ x 5.59″ (HxWxD)
  • Inputs / Outputs:
    • High level (speaker wire)
    • Low level (RCA)
    • RCA Pass-thru outputs
  • Power Output:
    • 80 Watts RMS x 2 channel @ 4 ohms
    • 120 Watts RMS x 2 channel @ 2 ohms
    • 240 Watts RMS x 1 channel @ 4 ohms (Bridged)
    • Total dynamic power: 600 Watts
  • Features:
    • Frequency response: 20 Hz ~ 250 Hz
    • Signal to noise ratio 68 dBA
    • Adjustable bass boost at 45 Hz
    • Gain adjustment: 200 mV ~ 6 V
    • Adjustable high and low-pass x-overs: 32 Hz – 320 Hz
    • Power terminal connector: 4 – 8 AWG
    • Speaker terminal connector: 12 – 18 AWG
    • Bridgeable operation for subwoofers: Yes
    • Fuse size: 25 A x 1
