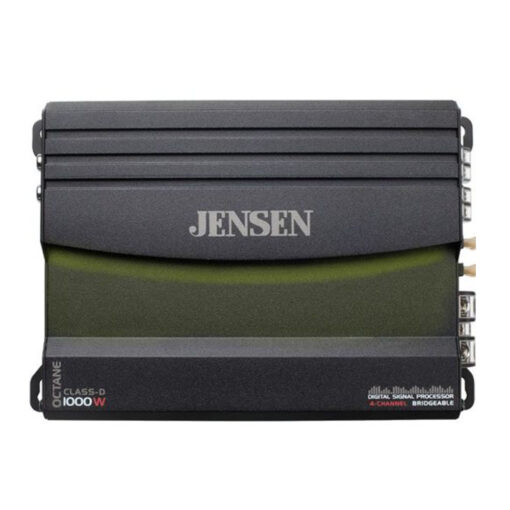

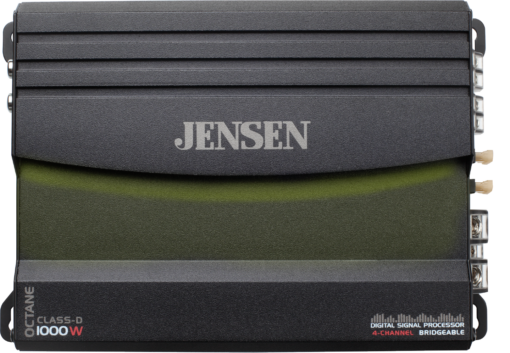

XDA94RB Front/Top of Car Amplifier with red illumination
XDA94RB angled view of Car Amplifier
XDA94RB angled view of Car Amplifier
XDA94RB Side of Car Amplifier
XDA94RB Connections Side B of Car Amplifier

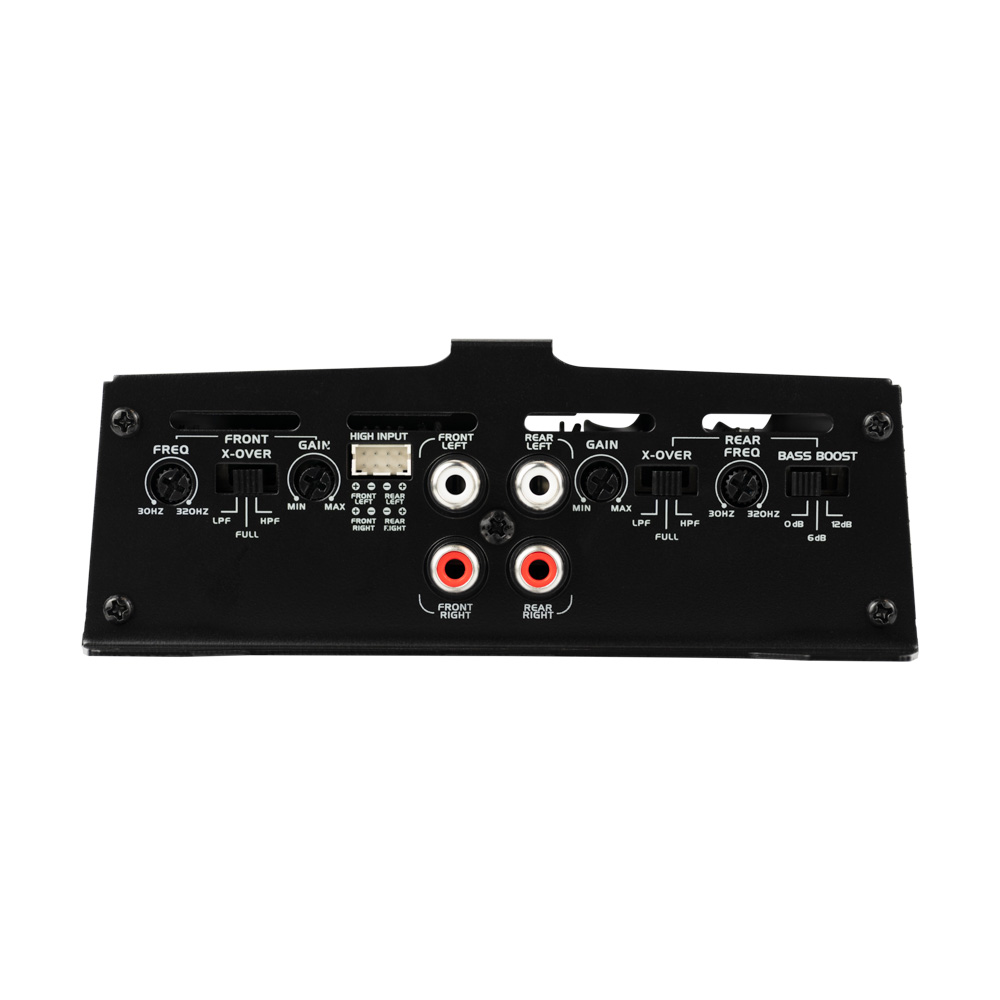

XDA94RB Connections Side A of Car Amplifier
XDA94RB Connections Bottom of Car Amplifier with manufacturer's label
XDA94RB Car Amplifier Accessories
XDA94RB Front/Top of Car Amplifier with red illumination
XDA94RB angled view of Car Amplifier
XDA94RB angled view of Car Amplifier
XDA94RB Side of Car Amplifier
XDA94RB Connections Side B of Car Amplifier
XDA94RB Connections Side A of Car Amplifier
XDA94RB Connections Bottom of Car Amplifier with manufacturer's label
XDA94RB Car Amplifier Accessories

1000 Watt Class D 4-Channel AMP with Bluetooth App Control – XDA94RB

  • Jensen DSP AMP App (Apple®/Android™)
  • RGB Custom Color Illumination
  • Class D Design
  • High Level (Speaker Wire) Input
  • Low Level (RCA) Inputs
  • Dimensions: 2.16″ X 9.56″ X 5.59″ (HXWXD)
  • Adjustable Bass Boost At 45 HZ

*Upgrade to 3-year Warranty by Registering Your Professionally Installed Item within 60 Days of Purchase.

1 year 3 year warranty information for subwoofer

Does your amp look different? See Former Generation


SKU: XDA94RB Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
xda94rb new amplifier v2 shown on table with 2 speakers
adults celebrating in car with new car audio

Features 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

XDA94RB Model Features

1000 Watts Peak Power Icon

Peak Power

This amp can reach a peak power of 1000 Watts for a powerful listening experience!

Compact Amp Design Icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

Class D Design Icon

Efficient Power Output

The XDA94RB Amp’s Class D design provides improved longevity and high efficiency power output.

RCA Spaker Wire Inputs Icon

Flexible Inputs

This amp has flexible input options and selectable crossovers, allowing for a customizable sound experience.

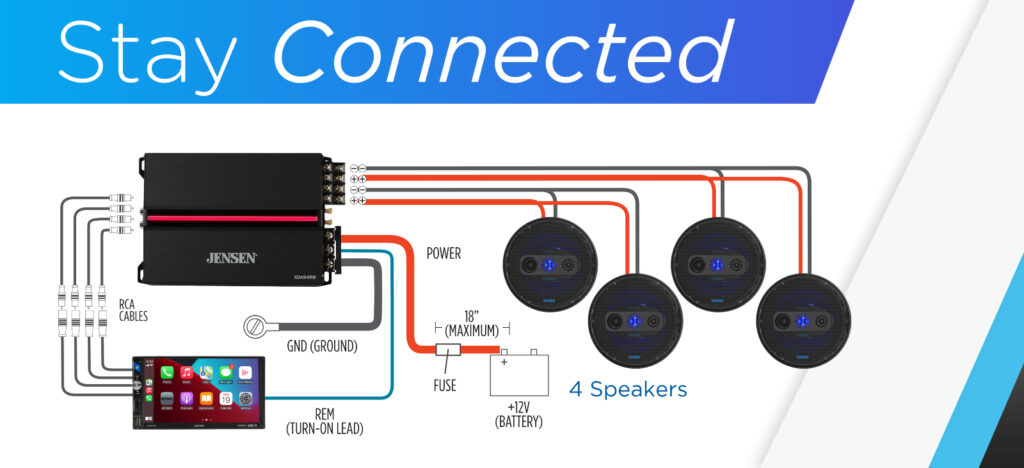

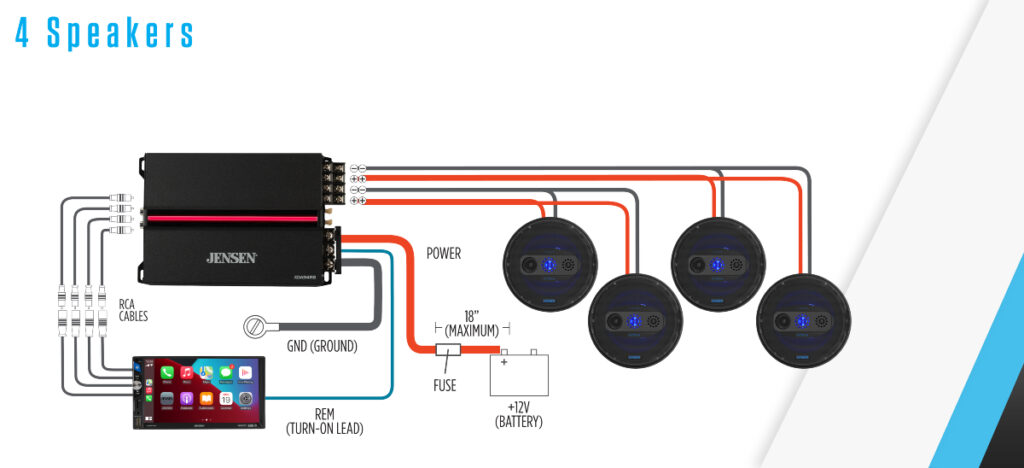

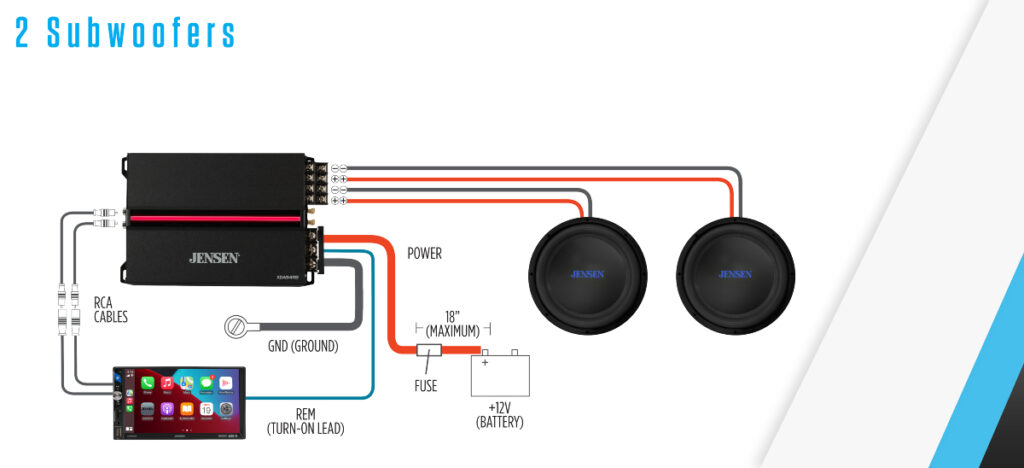

XDA94RB Connection Diagram back of unit Setup 1

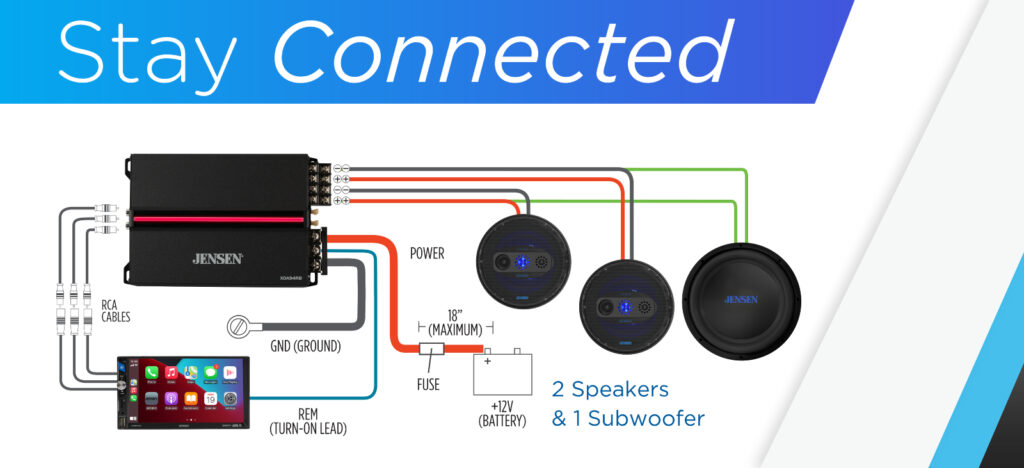

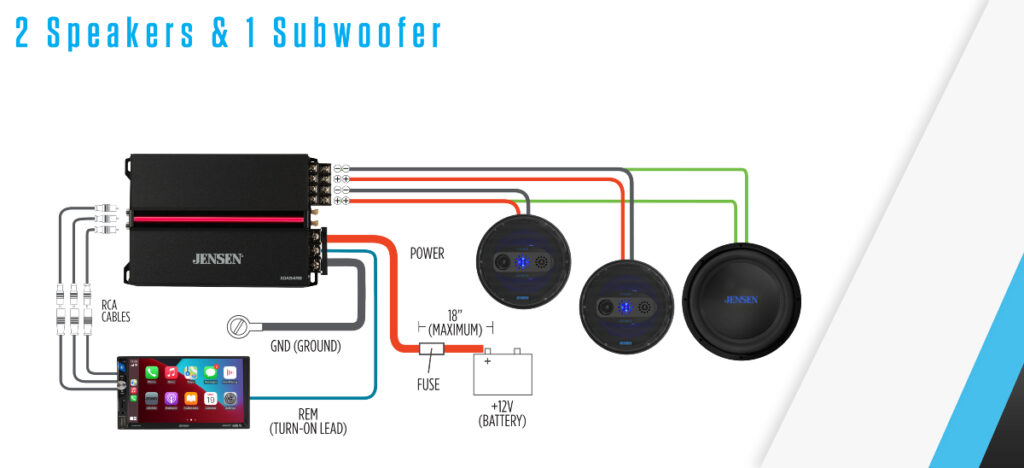

XDA94RB Connection Diagram back of unit Setup 2

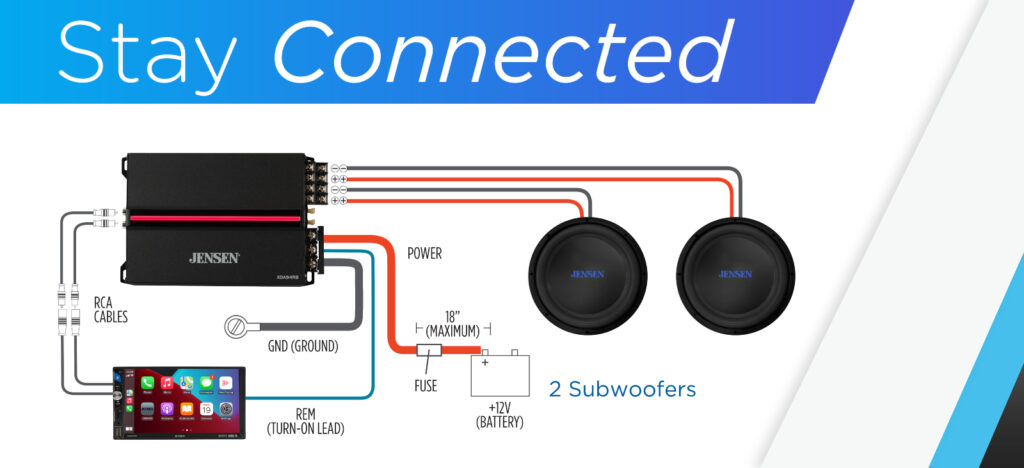

XDA94RB Connection Diagram back of unit Setup 3
Speaker Outputs

4
Class

D Digital
Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
Bridgeable

Yes
2 Ohm Stable Stereo Operation

Yes
Illumination

RGB
App Control

Yes
Crossover

Adjustable High and Low-Pass Crossovers (32-320 Hz)
Frequency Response

20 Hz ~ 20 kHz
Power

80 Watts RMS x 4 channels @ 4 ohms, 120 Watts RMS x 4 channels @ 2 ohms, 240 Watts RMS x 2 channel @ 4 ohms (bridged)
Signal to Noise Ratio

68 dBA
Total Dynamic Power

1000 Watts
RMS Power Per Channel (2 Ohm)

51-75W
Gain Adjustment

Variable 200 mV ~ 6 V
Adjustable Bass Boost

45 Hz
Power Supply

PWM MOSFET
Fuse Size and Type

25A x 2
Dimensions

2.16″ X 8.38″ X 5.59″ (HXWXD)
Recommended Power/Ground Wire

4-8 AWG
Recommended Speaker Wire

12-18 AWG

Specifications

CLASS D EFFICIENT DESIGN

Produces 1000 Watts of total dynamic power, 240 Watts RMS x 2 channels @ 4 ohms (bridged), 120 Watts RMS x 4 channels @ 2 ohms and 80 Watts RMS x 4 channels @ 4 ohms

RGB ILLUMINATION VIA BLUETOOTH APP

The Jensen DSP app allows you to have full control over your amplifiers various functions such as: Illumination, Remote Bass, Frequency, Volume & Gain

FULL RANGE CROSSOVERS & BASS BOOST

When constructing your Jensen 4-channel amplifier, we added a low pass variable crossover for versatility and use of full range speakers or subwoofer plus a variable bass boost at 45Hz

  • Jensen DSP Amp app (Apple®/Android™) to control illumination and system set-up via Bluetooth®
    (Free App required for system set-up)
  • RGB Custom color illumination via Bluetooth app control
  • Class D design
  • Amplifier dimensions: 2.16″ x 8.38″ x 5.59″ (HxWxD)
  • Inputs / Outputs:
    • High level (speaker wire)
    • Low level (RCA)
    • RCA Pass-thru outputs
  • Power Output:
    • 80 Watts RMS x 4 channel @ 4 ohms
    • 120 Watts RMS x 4 channel @ 2 ohms
    • 240 Watts RMS x 2 channel @ 4 ohms (Bridged)
    • Total dynamic power: 1000 Watts
  • Features:
    • Frequency response: 20 Hz ~ 250 Hz
    • Signal to noise ratio 68 dBA
    • Adjustable bass boost at 45 Hz
    • Gain adjustment: 200 mV ~ 6 V
    • Adjustable high and low-pass x-overs: 32 Hz – 320 Hz
    • Power terminal connector: 4 – 8 AWG
    • Speaker terminal connector: 12 – 18 AWG
    • Bridgeable operation for subwoofers: Yes
    • Fuse size: 25 A x 1
