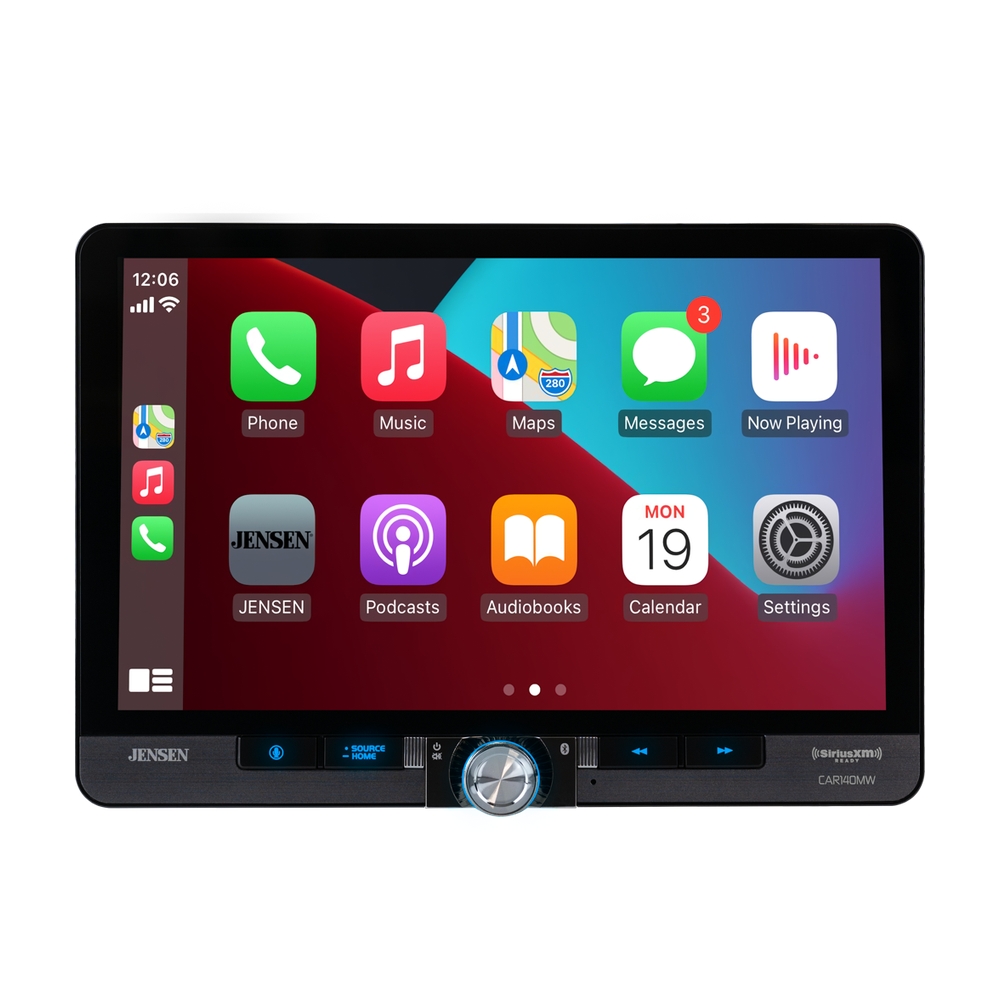

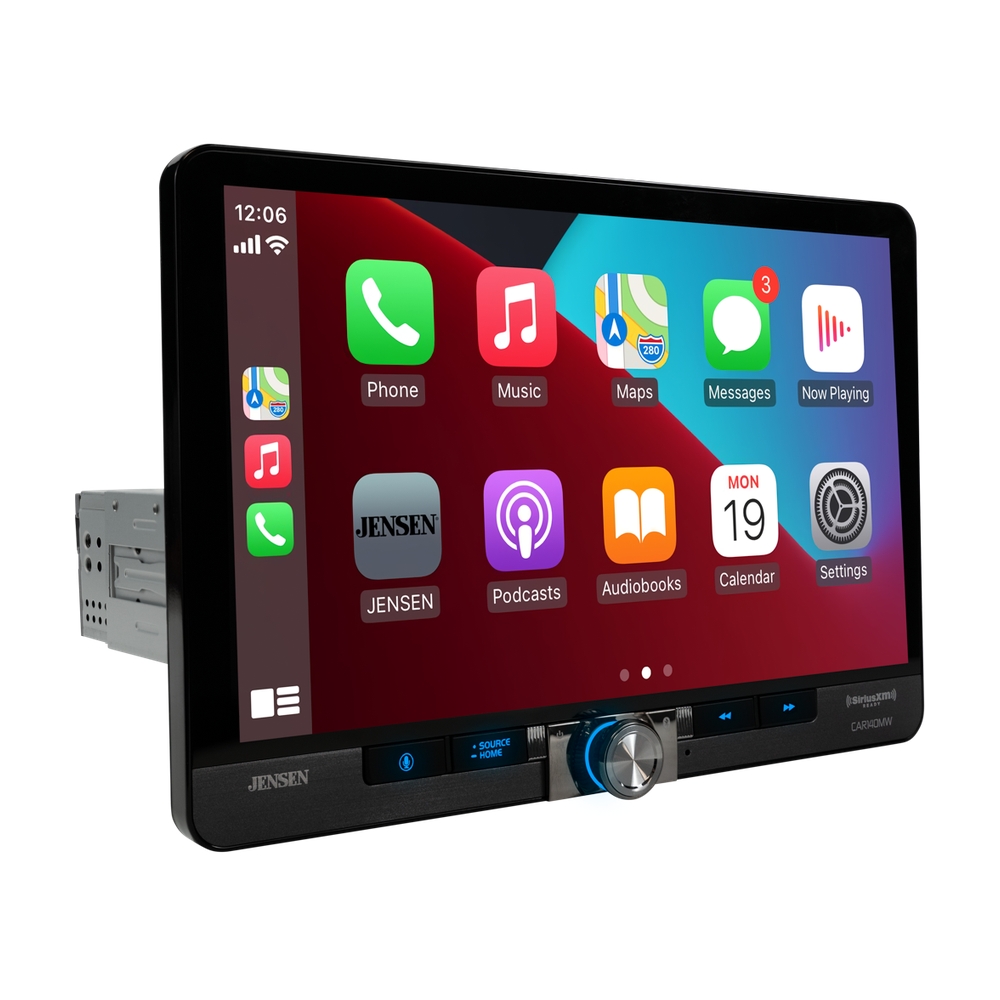

10.1” LED Backlit Touchscreen Car Radio/AV Receiver – CAR140MW
$429.99
- iDatalink Maestro Radio Replacement Interface Module compatible: keep your current car digital convenience features
- 10.1” LED Backlit Touchscreen: High-resolution display (1024p x 600p) for clear visuals.
- Apple CarPlay & Android Compatibility: Wireless and wired connection support for seamless smartphone integration.
- SiriusXM-Ready: Connect to SiriusXM with a subscription (tuner sold separately) for premium satellite radio.
- Built-in Bluetooth: Hands-free calling, music streaming, and phonebook support for safe driving.
- High Power Output: 240 Watts (60 W x 4) MOSFET power for robust, high-quality sound.


With Apple CarPlay and Android Auto, seemlessly control key phone features directly from the receiver’s touchscreen or via voice-control, significantly reducing driver distraction.
With voice-control, you can ask your phone to control your messages, maps, music and phone.
Both Apple CarPlay and Android Auto launches upon connecting a compatible phone to the receiver wirelessly or via USB.


Bluetooth Hands-Free Calling
Safely answer and make calls from your receiver using touchscreen icons and the included microphone.

CAR140MW Features

10.1″ Touchscreen
Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach!

Front and Rear Camera
You have the option to install a backup camera and connect it to your car receiver so you are always aware of your surroundings as you reverse.

Push-To-Talk Button
Communicates via your phone’s bluetooth connection to the radio. Interact with your smartphone’s assistant while you drive with only a push of a button.

8 Preset EQ Curves
let you tweak the audio settings to suit your listening preferences. Switch between Off, User, Jazz, HipHop, Pop, Rock, R&B and Classic.

Fits 1 or 2 Din Openings
Dash Mount Adapter Allows for 1 DIN and 2 DIN Installation Download and Print Size Guide PDF to See if it Fits Your Car

The Jensen CAR140MW is a premium 10.1” touchscreen media receiver designed to enhance your in-car entertainment experience.
A high-resolution 1024p x 600p LED-backlit display delivers crisp and vibrant visuals that make navigation, media, and calls a breeze.
With support for both wireless and wired Apple CarPlay and Android Auto, this receiver ensures seamless integration with your smartphone, allowing you to access apps, stream music, and make calls effortlessly while on the road.
For those seeking premium entertainment options, the CAR140MW is SiriusXM-Ready. It lets you connect a SiriusXM tuner (sold separately) to enjoy your favorite satellite radio stations.

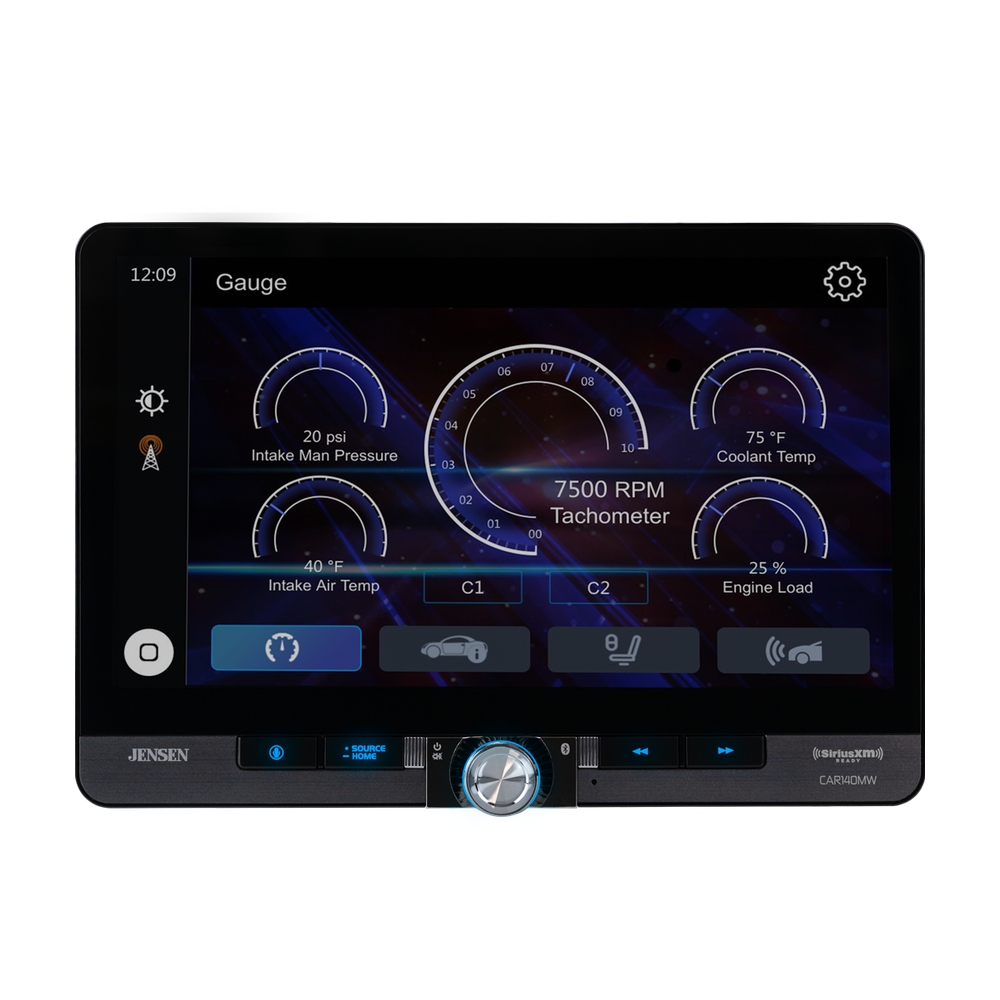

Additionally, the receiver is compatible with the iDatalink Maestro interface, enabling you to retain factory features when replacing your vehicle’s radio.
Built-in Bluetooth enhances your driving experience with hands-free calling, music streaming, and phonebook support, all controlled via an external microphone for clear communication.
The unit offers extensive connectivity options, including rear USB inputs for fast charging, RCA A/V inputs, and front and rear camera inputs, making it a versatile choice for any vehicle setup.
The audio capabilities are equally impressive. They feature a 10-band graphic equalizer with eight presets, subwoofer gain control, and a built-in crossover with adjustable frequencies, allowing you to customize your sound system. It supports high-quality FLAC and MP3 playback via USB, although it does not support CD/DVD playback, focusing on modern digital media formats.
With a powerful 240-watt MOSFET amplifier, the CAR140MW delivers robust sound, making your drives more enjoyable. The unit also includes RGB button illumination with six preset colors and three selectable backgrounds, allowing you to personalize the look to match your vehicle’s interior. Additionally, it’s compatible with most steering wheel control interfaces, ensuring you can keep your hands on the wheel while accessing key features.
Designed to fit both 1-DIN and 2-DIN openings (with an included bracket), the Jensen CAR140MW is a versatile, feature-packed media receiver perfect for anyone upgrading their car’s audio system with modern technology and high-quality sound.
Playback | Digital Multimedia |
---|---|
Size | Double Din, Single Din |
Phone Connectivity | Android Auto, Android Auto Wireless, Bluetooth, CarPlay, CarPlay Wireless |
Inputs | 3.5mm (Front), Audio / Video (Rear), Auxiliary (Rear), Front View Camera, Rear View Camera, USB (Front), USB x 2 (Rear) |
File Playback | FLAC, MP3 |
Amplifier Outputs | 3 Pair (Front + Rear + Sub) |
Crossover | Built-In Subwoofer Crossover (Off/50Hz/80Hz/120Hz/160Hz) |
Gain Adjustment | Yes – Subwoofer Gain Control |
Steering Wheel Control Compatible | Yes – Adapter Required |
Tech Type | Digital Multimedia, DVD Multimedia |
Screen Size | 10.1" |
Peak Power | 240W (60W x 4) MOSFET |
Bluetooth Features | Audio Streaming, External Microphone, Hands-free Calling, Phonebook Support, Voice Activation Button |
USB Charge | 2.1A |
Preamp Outputs | 3 Pair (Front + Rear + Sub) 4V |
RCA Preamp Voltage | 4V |
Front Panel | Touchscreen |
Audio Processing | 10 Band EQ, 8 EQ Presets |
AM/FM Receiver | 30 Station presets (18FM/12AM), RDS |
Satellite Radio | SiriusXM Ready (Tuner Required) |
Documents
Firmware
Firmware Update Instructions
A Note about Firmware Update via USB Devices
We recommend following the guidelines below for your USB drive:
- Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
- Some recommended brands include:
- SanDisk®
- Kingston®
- PNY®
- Verbatim®
- Corsair®
- The drive should support USB 2.0 or faster transfer speeds. Older version USB 1.0 drives are not compatible.
- Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.
This update addresses the following:
- Improves settings issue of iDatalink Maestro Module
Note: Software is not interchangeable between models. Please do not attempt this update on any model
other than the CAR140MW.
How to Update:
- Download the firmware file from the link below.
- Unzip the downloaded file. Note: To unzip the file, the program WINRAR is required and can be
downloaded from this link:
WINRAR Download - Copy the
ISPBOOT.BIN
file to an empty USB Thumb Drive formatted to FAT32. - Insert the USB Thumb Drive with Update Firmware into the CAR140MW USB A Port.
- Navigate to Settings and scroll till you get to the About button on the left
side of the menu. - Press the About button and you will see on the right-hand side Software
Update. - Press Software Update and you will see the Update button. Press
Update to begin the firmware upgrade. - Once the update is complete, remove the USB thumb drive.
- The update is now complete.
Download Firmware Zipped File: CAR140MW Firmware Download
