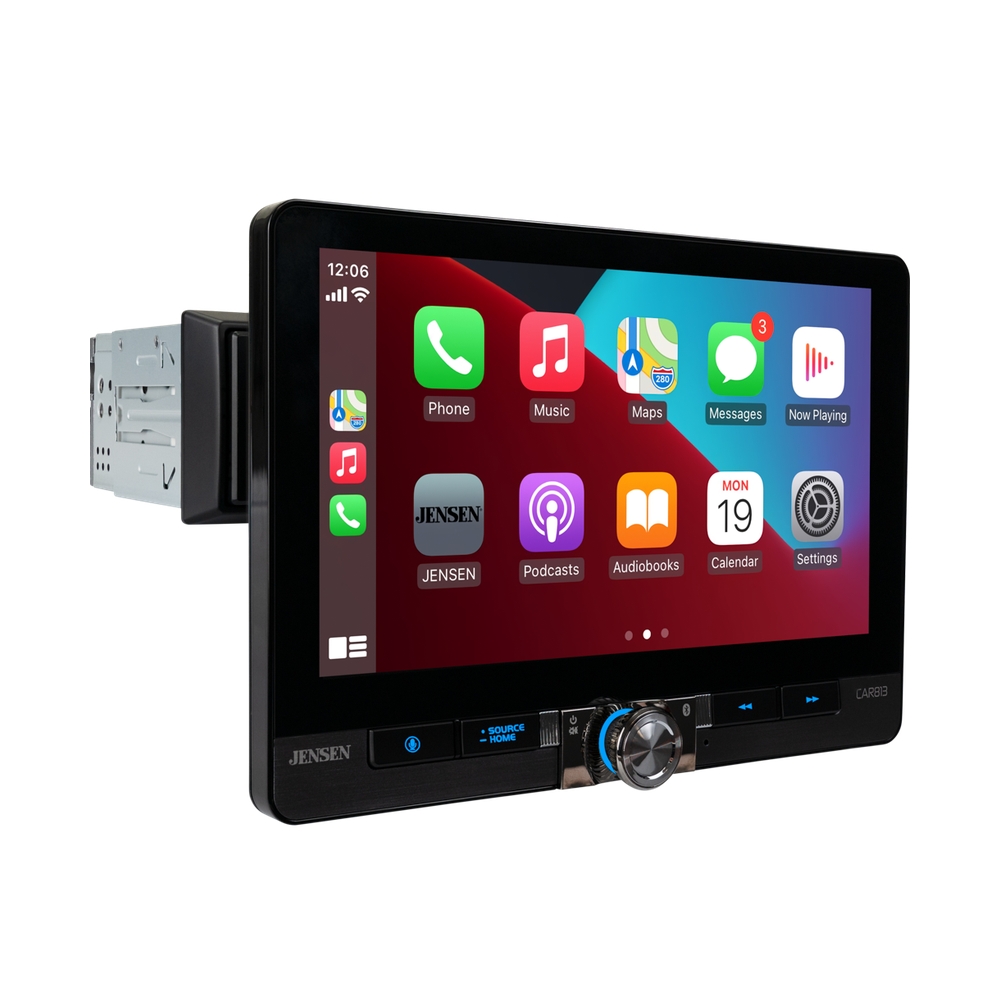

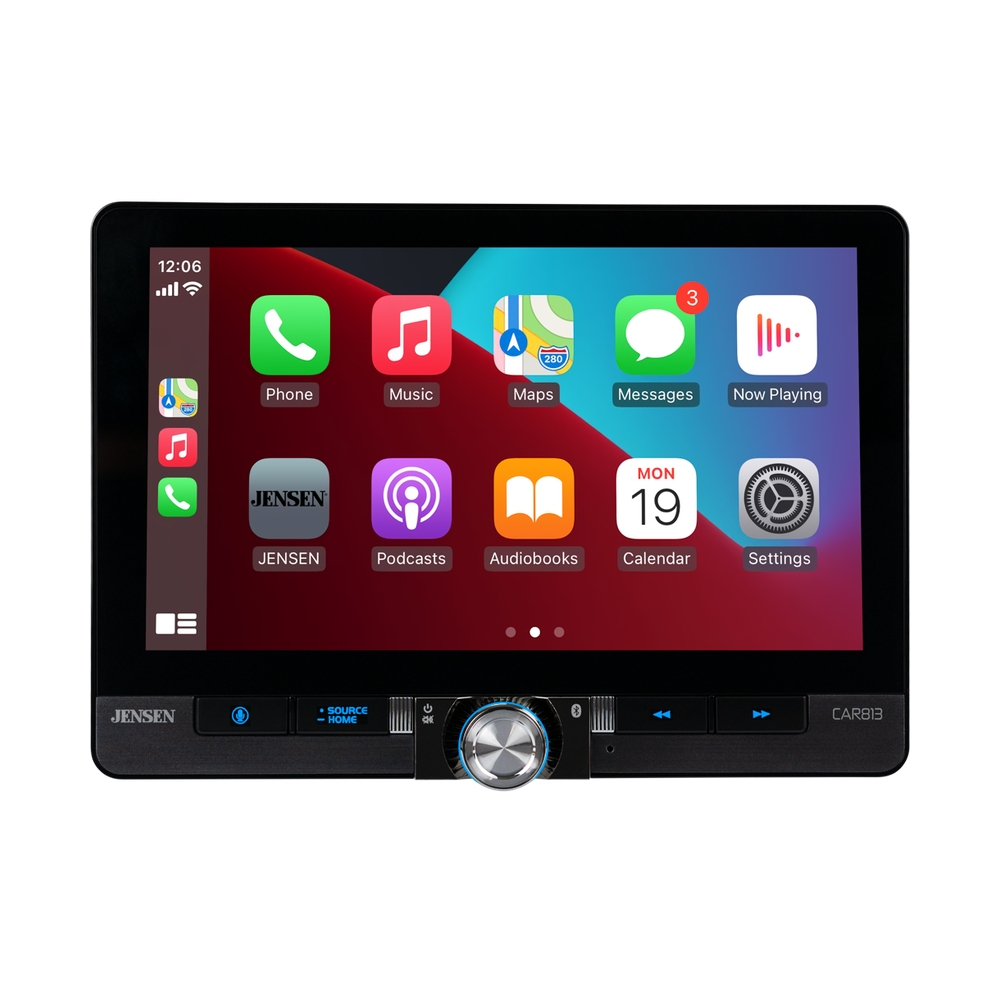

CAR813

10.1″ Capacitive Touch Screen
Apple CarPlay™
Android Auto
Built-in Bluetooth
MP4, Xvid, FLAC And MP3 Playback
Back-up Camera Input
Front And Rear USB Inputs

SKU: CAR813-1 Category:
car play and android car receiver logos

Apple Carplay / Android Auto

Control key phone features directly from the receiver's touchscreen or via voice-control, significantly reducing driver distraction.

With voice-control you can ask your phone to control your messages, maps, music and phone.

Both Apple CarPlay and Android Auto launches upon connecting a compatible phone to the receiver via USB.

mobile phone with charging cable in car
mobile phone with charging cable in car
bluetooth logo

Bluetooth Hands-Free Calling

Safely answer and make calls from your receiver using touchscreen icons and the included microphone.

handsfree calling
bt audiostreaming
10 touchscreen icon

10" Touchscreen

Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach!

touchscreen
bt audiostreaming
push to talk icon

Push-To-Talk Button

Communicates via your phone's bluetooth connection to the radio. Interact with your smartphone's assistant while you drive with only a push of a button.

car radio music image
bt audiostreaming
rear camera icon

Backup Camera

You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse.

backup
bt audiostreaming

Specifications

10.1″ Extra-Large Touchscreen Display

The 10.1″ Extra-large LED backlit LCD touchscreen maximizes your driving experience. The large display is easy to navigate and makes managing your music and apps effortless and convenient.

The Extra-Large screen is adjustable allowing you to dial it in to the perfect angle. Installation screws lock the screen at the customized angle without requiring you to readjust it for each use.

Specifications

  • 10.1″ Extra-large capacitive touchscreen LCD (1024×600)
  • Works with Apple CarPlay™
  • Supports Android Auto™
  • Bluetooth® with hands-free calling, music streaming, phonebook support
    (HFP, A2DP, AVRCP, PBAP)

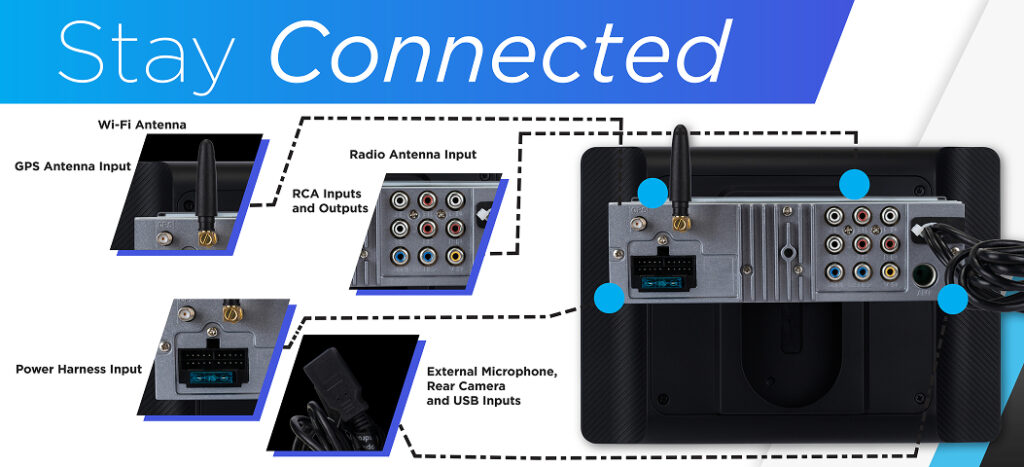

  • Inputs:
    • Front USB input (1A)
    • Rear USB input (1.5A fast charging)
    • microSD card input
    • Rear RCA A/V input
    • Back-up camera input (RCA)
    • Steering Wheel Control input (SWC adapter required)
  • Outputs:
    • 3 Pairs of 4V preamp outputs (F/R/S)
  • Power: 200 Watts (50 W x 4) MOSFET
  • Media playback: USB/microSD card
  • File formats: XviD/MP3/MP4/FLAC
  • Time Alignment
  • 8 Band graphic EQ
  • 8 EQ presets (POP, JAZZ, ROCK, CLASSICAL, BEAT, FLAT, USER and SOFT)
  • Tuner: AM/FM with 30 stations presets (18FM/12AM)
  • Display: 10.1” LED Backlit LCD touchscreen (1024p x 600p)
  • Wireless remote control

Documents

Manuals & More

CAR1000

Firmware

CAR1000 Firmware Update

This update addresses the following:
• Adds Color Brightness Control to the Settings Menu
• Fixes clock issue
• Adds date to home screen
• Improves the screen resolution while in Apple CarPlay or Android Auto

Note: Software is not interchangeable between models. Please do not attempt this update on any other model then the CAR1000

Download File: CAR1000 Firmware Update

How to Update:

  1. Download the firmware file from the link above.
  2. Unzip the downloaded file. (NOTE: To unzip the file, the program WINRAR is required and can be downloaded from this link: https://www.rarlab.com/download.htm)
  3. Copy the 2 ISPBOOT.BIN files to an empty USB Thumb Drive formatted to FAT32.
  4. With the vehicle Off , insert the USB Thumb Drive with Update Firmware into the CAR1000 USB Port.
  5. Turn the vehicle On, the radio will boot up with the update screen.
  6. Once the update is complete, the radio will shut down and power back up.
  7. Remove the USB Thumb Drive from the unit.
  8. The update is now complete.

To check that the update was done correctly, goto Settings and press Others and then press System Version. If you see he below information, the update was done correctly.
– Version: CAR1000 V1.2
– Date: 20210811_1041
– SDK: 24.0.2.2.2.0.1.0
– Mcu:SP_38_20190926_01
