Jensen XDA95RB 1500 Watt Truck and Car Amplifier – XDA95RB

  • 5-Channel Class D MOSFET Amplifier: Efficient, high-power design for multi-channel setups.
  • RGB Custom Illumination: Control lighting via app (Apple/Android) with Bluetooth.
  • High and Low-Level Inputs: Flexible inputs for easy connection to any stereo system.
  • Selectable Crossovers: High-pass, low-pass, and full-range options for custom sound.
  • Peak Power: 1,500 watts for dynamic performance.

Authorized Retailer

*Upgrade to 3-year Warranty by Registering Your Professionally Installed Item within 60 Days of Purchase.

1 year 3 year warranty information for subwoofer



SKU: XDA95RB Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible

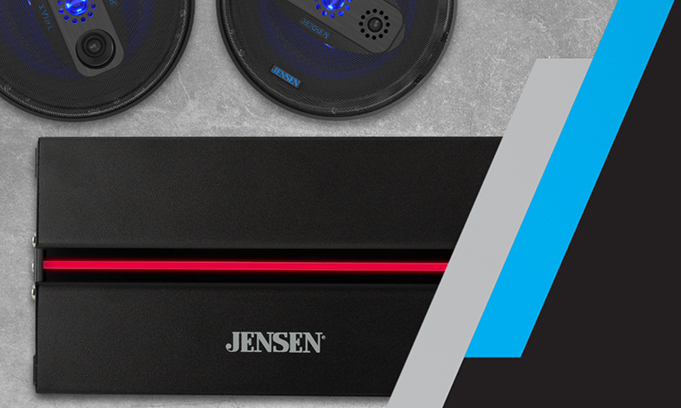

xda95rb new amplifier v2
adults celebrating in car with new car audio

Features 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

XDA95RB Model Features

1500 Watt Icon

Peak Power

This amp can reach a peak power of 1500 Watts for a powerful listening experience!

Compact Amp Design Icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

Class D Design Icon

Efficient Power Output

The XDA95RB Amp’s Class D design provides improved longevity and high efficiency power output.

RCA Spaker Wire Inputs Icon

Easy Connection

This amp has RCA inputs for easy connection to any stereo system.

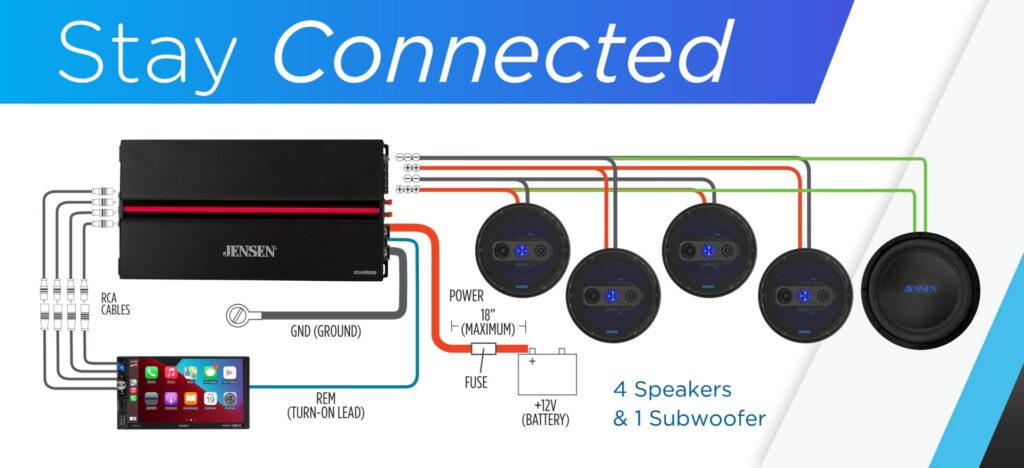

XDA95RB Connection Diagram 1

XDA95RB 5-Channel MOSFET Amplifier

The XDA95RB is a high-efficiency 5-channel MOSFET amplifier designed for multi-channel setups, offering powerful sound with a sleek design. Featuring custom RGB illumination that can be controlled via Bluetooth with the Jensen DSP Amp app, this amplifier brings both style and performance to any vehicle audio system. The selectable crossover and bass control give you full flexibility over the sound output, while the Class D design ensures efficiency and reliability.

Our high-performance MOSFET Amplifier is built for power and efficiency, thanks to its Class D design. It delivers up to 1,500 watts of peak power, providing dynamic sound for 4 speakers and a subwoofer, ensuring your music stays crisp and clear, even at higher volumes. With RGB custom lighting, you can add a personalized touch to your amp, easily controlled through Jensen’s DSP Amp app. Selectable crossovers (high-pass, low-pass, and full-range) give you the flexibility to fine-tune your sound. Our Bluetooth app control makes it simple to adjust settings and customize your system. Built with low-level RCA inputs and 2-ohm stable operation, this amplifier is designed for versatility. It is compatible with a wide range of audio setups. Whether you’re looking for performance, style, or control, the XDA95RB amplifier brings it all together in one high-efficiency package.

Installation Notes:

The XDA95RB requires a 4 AWG amplifier installation kit and 12 AWG speaker wire for proper installation. It supports 2-ohm stable operation, making it versatile for both standard and bridged setups. The amplifier’s RGB illumination can be fully customized via the Jensen DSP Amp app available for both Apple and Android devices.

Speaker Outputs

5

Class

D Digital

Speaker Inputs

High level (Speaker Wire), Low Level (RCA)

Bridgeable

Yes

2 Ohm Stable Stereo Operation

Yes

Illumination

RGB

App Control

Yes

Crossover

Adjustable low-pass(50Hz – 150Hz) & high-pass (40Hz – 250Hz)

Frequency Response

20 Hz ~ 20 kHz

Signal to Noise Ratio

68 dBA

Total Dynamic Power

1500 Watts

Gain Adjustment

Variable 200 mV ~ 6 V

Power Supply

PWM MOSFET

Fuse Size and Type

40A x 2

Dimensions

2.11″ x 5.63″ x 11″ (HxDxW)

Documents

Manuals & More

XDA95RB

Power Information

Additional Features and Detailed Specifications:

Specification Details
Continuous power output (1% THD+N)
  • 70 Watts RMS x 4 Channels + 240 Watts RMS x 1 Channel @4 Ohms
  • 100 Watts RMS x 4 Channels + 350 Watts RMS x 1 Channel @ 2 Ohms
  • 200 Watts RMS x 2 Channels @ 4 Ohms (bridged)
Max Dynamic Power 1,500 Watts
Total Harmonic Distortion (THD+N) <0.15% at 1 Watt RMS
Frequency Response 20 Hz ~ 20 kHz, 20Hz ~ 150Hz
Signal-to-Noise Ratio 68 dBA (reference: 1 Watt RMS @ 4 Ohms)
Recommended Wire Sizes Power/Ground: 4 AWG, Speaker: 12 AWG
