4-Way 6.5 inch Car Audio Speakers Pair – JS6504

  • Sold in Pairs
  • 6.5-Inch Speakers
  • 35mm Mylar Balanced Dome Midrange / Two 15mm Piezo Tweeters
  • RMS Power: 40 Watts / Peak Power: 160 Watts

Authorized Retailer

amazon logo with link to product

*3-year warranty when professionally installed and registered within 60 days of purchase.

3 year warranty icon
60 day return icon
free shipping icon


SKU: JS6504 Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible

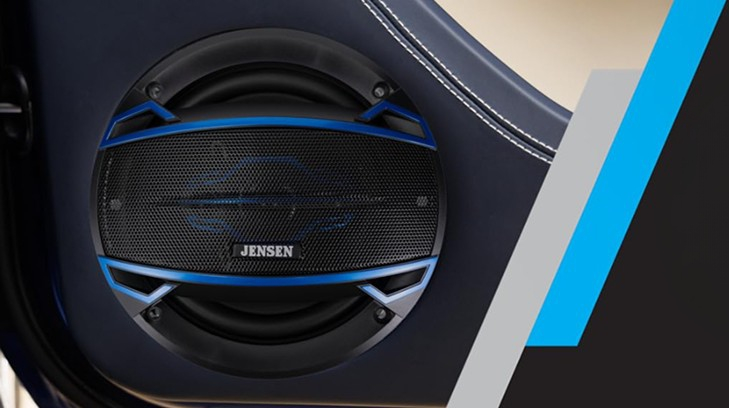

js6504 mounted in car door
adults celebrating in car with new car audio

These 6.5-inch speakers deliver up to 160 Watts of Peak Power and 40 Watts RMS at a 4 Ohm Impedance and Frequency Response between 70Hz-20kHz for high output efficiency.

JS6504 Model Features

6.5-inch icon

6.5″ Size

This speaker has a cut-out diameter of 5.60”, a top mounting depth of 2.36”, and a bottom mounting depth of 2.17”.

4-way icon

4-Way Speaker Size

The 4-Way speaker design allows for a wider range of sound. Listen to your songs in greater detail and with richer sound!

Mylar Icon

Mylar Dome

The speaker’s balanced dome midrange, made from 30mm Mylar, enhances the clarity of your sound in the midrange frequencies!

Woofer Cone Icon

Polypropylene Woofer Cone

The polypropylene injected woofer cone is resistant to moisture and sound distortion, allowing for higher quality audio.

  • Sold in Pairs
  • 6 1/2 inch 4-Way Design
  • Injection-Molded Polypropylene Woofer Cone
  • High Strength Butyl Rubber Surround
  • 35mm Mylar Balanced Dome Midrange / Two 15mm Piezo Tweeters
  • RMS Power: 40 Watts / Peak Power: 160 Watts
  • 6dB Octave High Pass Crossover
  • High Performance Coated Stamped Steel Basket
  • Sensitivity: 87dB / Frequency Response: 70Hz-20kHz
Speaker Size

6.5"
Speaker Design

4-Way
Peak Power

160 Watts
RMS Power

40 Watts
Grilles

Yes
Crossover

6 dB/Octave
Nominal Impedance

4 Ohms
Sensitivity

87dB
Frequency Response

70 Hz ~ 20 kHz
Tweeter Material

Piezo
Tweeter Size

15mm
Midrange Size

35mm
Midrange Material

Mylar
Woofer Material

Injection Molded Black Polypropylene
Surround Material

Rubber
Cutout Diameter

5.60"
Top-Mount Depth

2.17"
Bottom-Mount Depth

2.36"
Mounting Height

.79"
Tweeter Height

.59"

Documents

Manuals & More

JS6504
