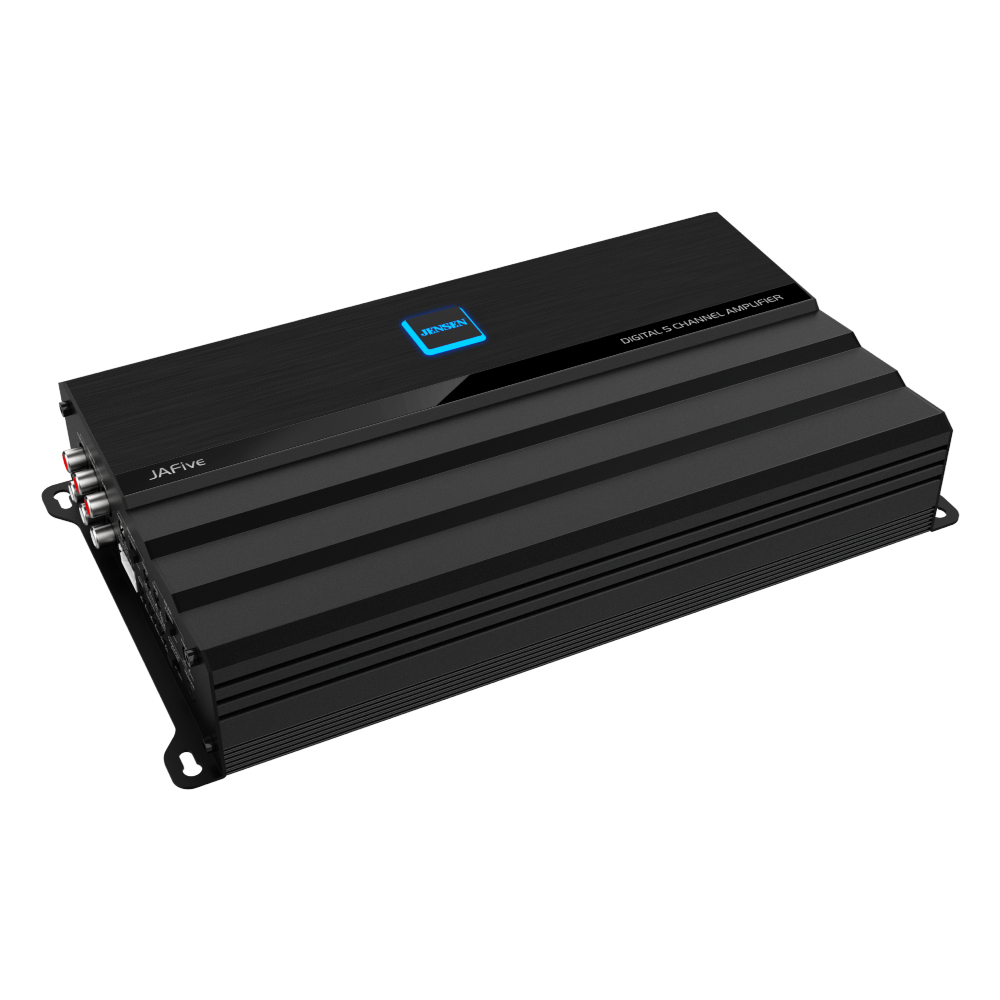

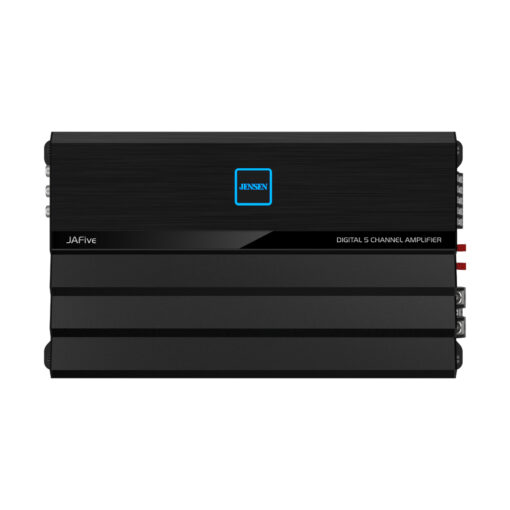

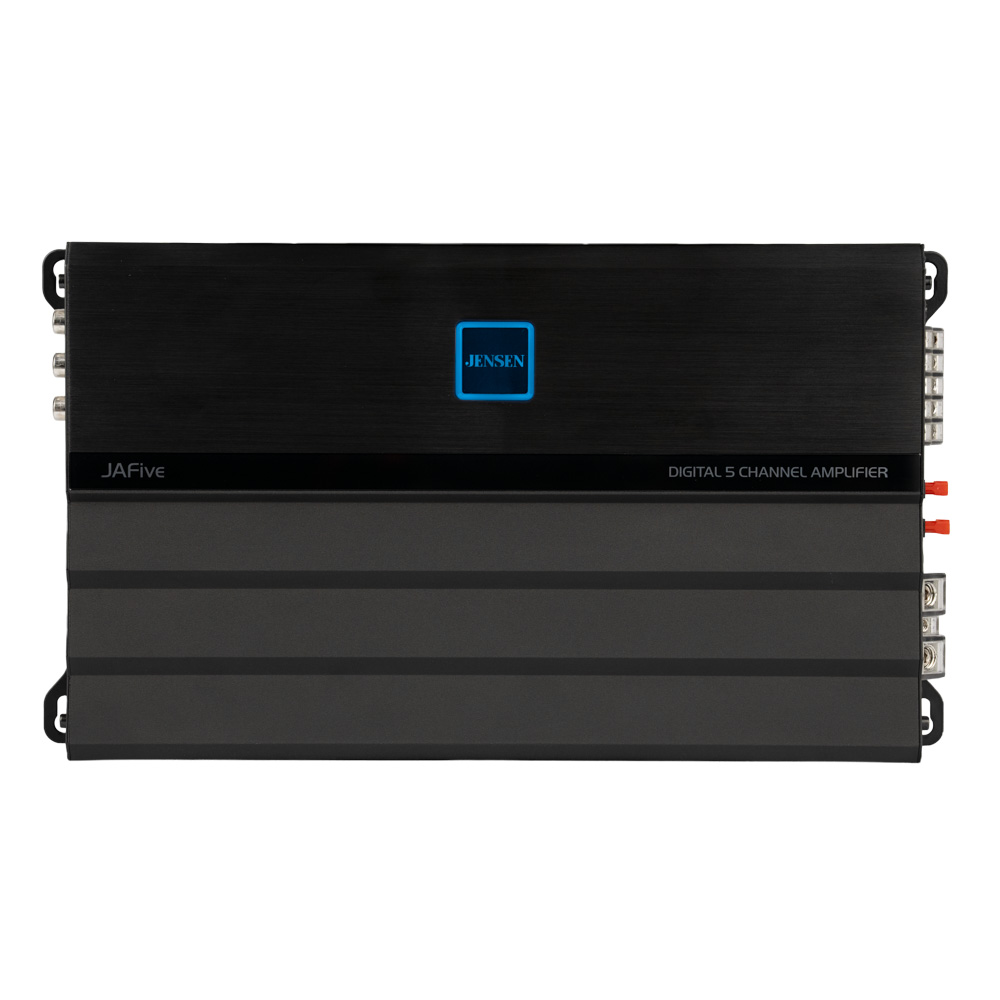

JAFive 5-Channel Class-D MOSFET Amplifier

  • 5-Channel Class D Design: MOSFET amplifier for efficient full-system power

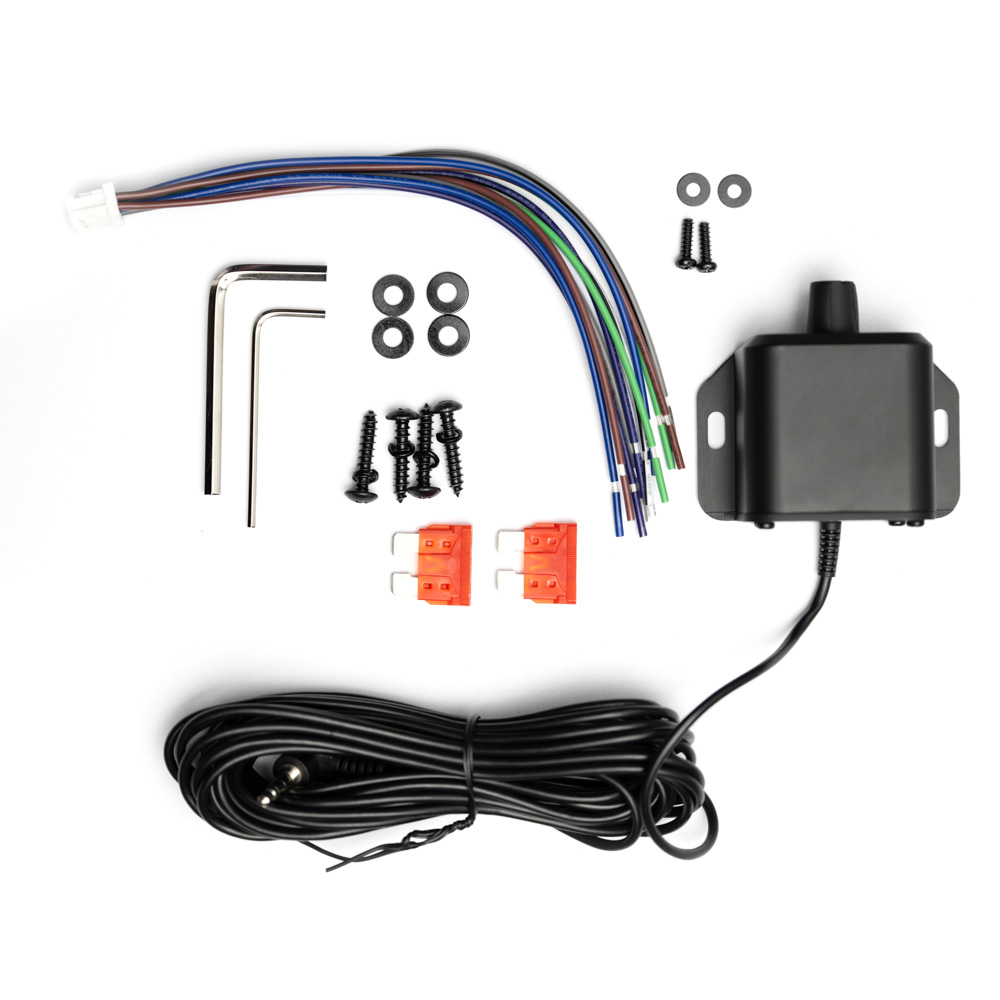

  • Wired Remote: Included for convenient bass control
  • Selectable Crossover: High pass / low pass / full range options
  • Maximum Dynamic Power: 1175 Watts
  • Compact Dimensions: 1.99” x 6.53” x 13.07” (HxDxW)

*3-year warranty when professionally installed and registered within 60 days of purchase.

3 to 5 year warranty field
60 day return icon
free shipping icon
SKU: JAFive Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
adults celebrating in car with new car audio

Features a 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

Model Features

Peak Power

This amp can reach a max dynamic power of 1175 Watts for a powerful listening experience!

compact design icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

class d design icon

Efficient Power Output

The JAFive Amp has a class D design for improved longevity and high efficiency power output.

rca input icon

Easy Connection

This amp has RCA inputs for easy connection to any stereo system.

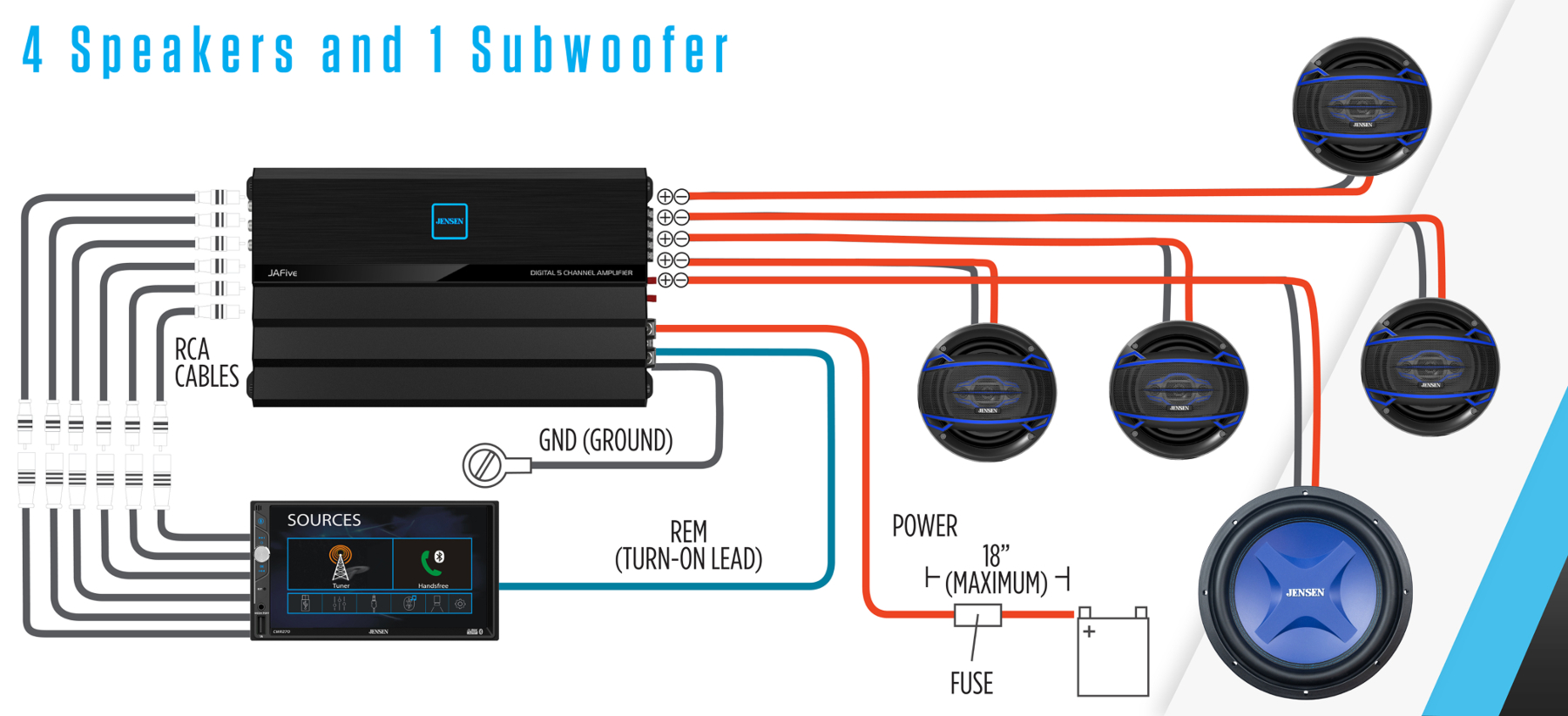

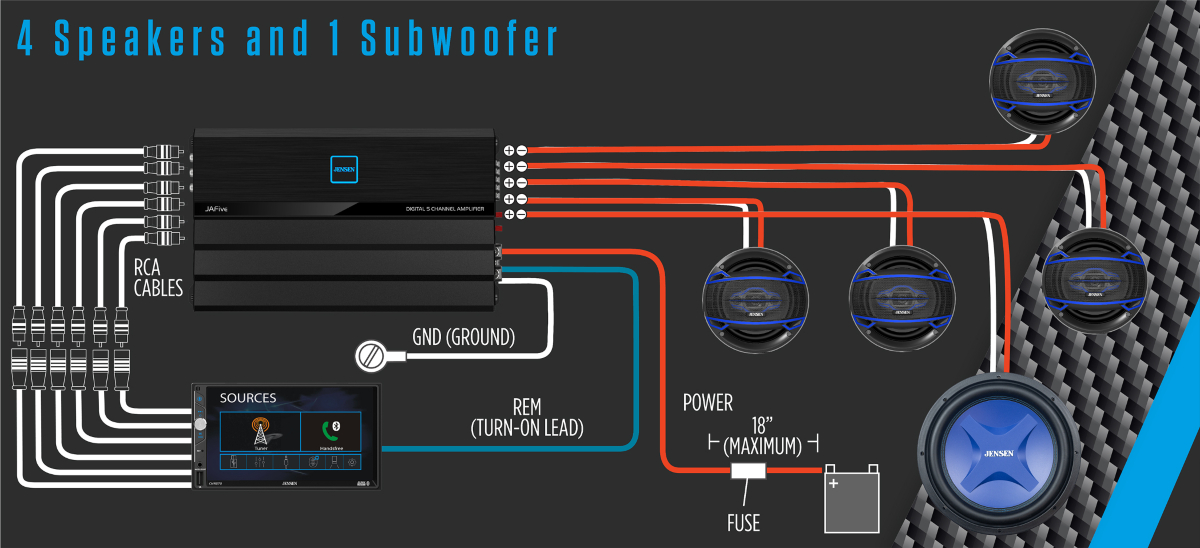

jafive 4 speakers 1 sub connections graphic

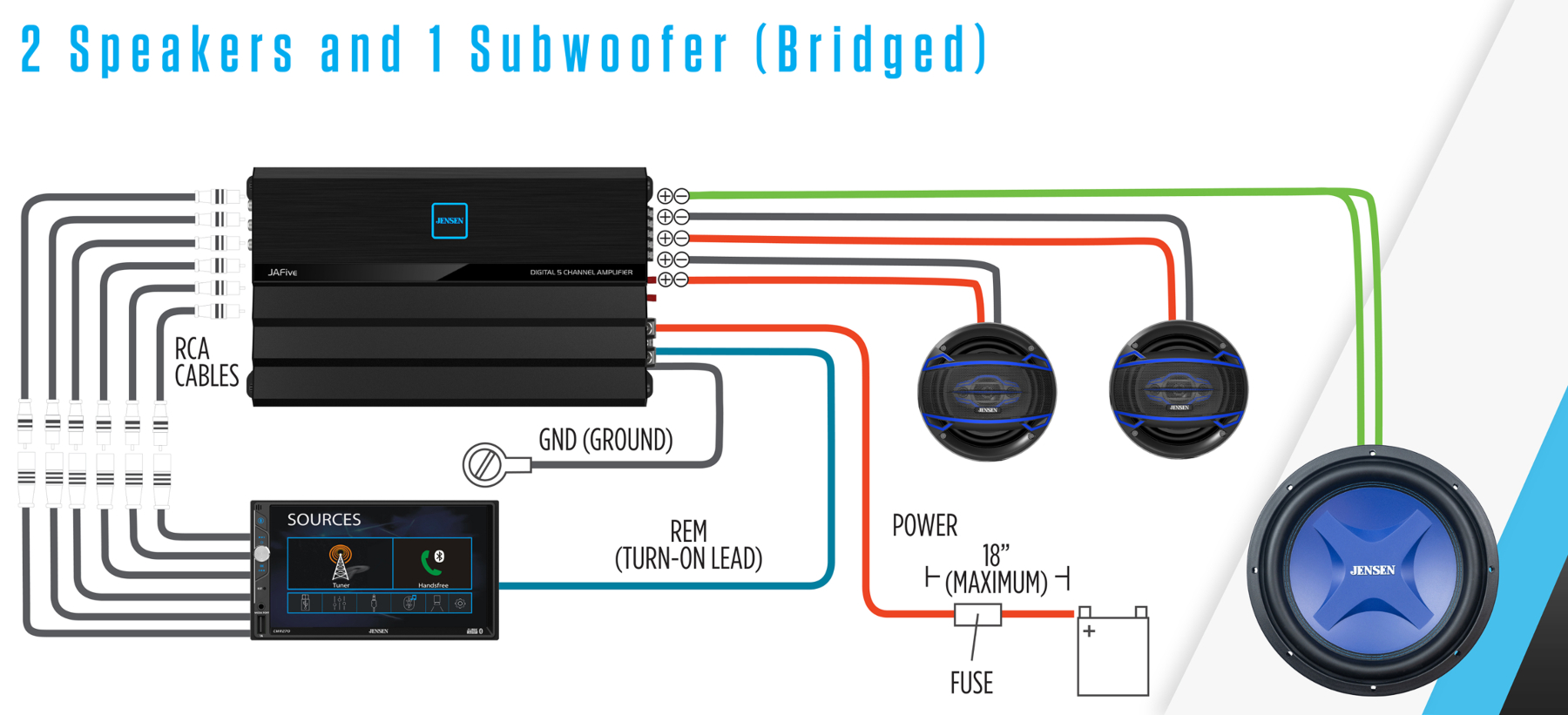

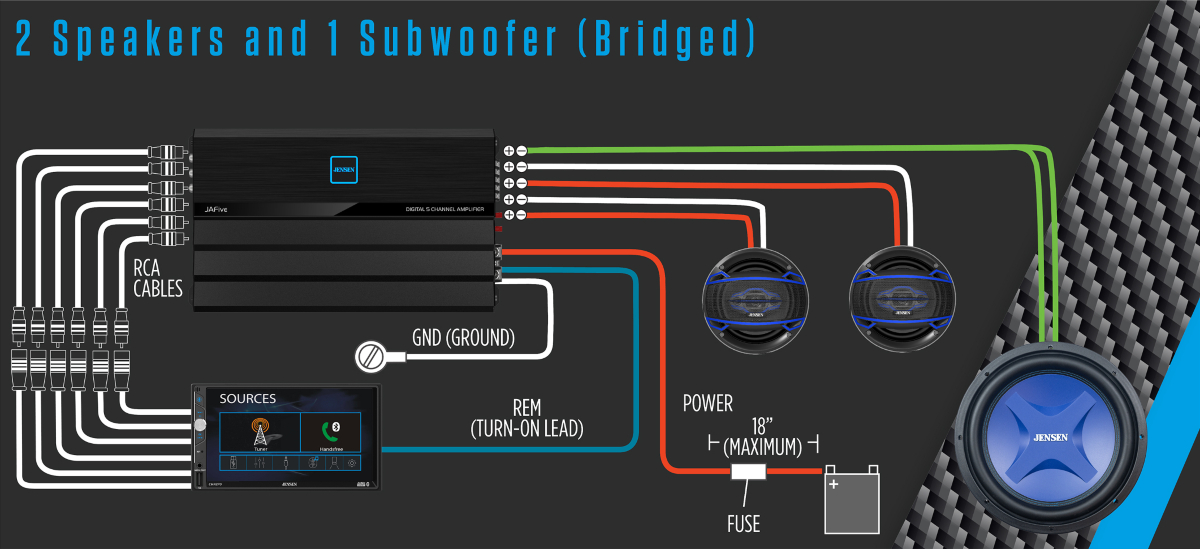

jafive 2 speakers 1 sub bridged connections graphic

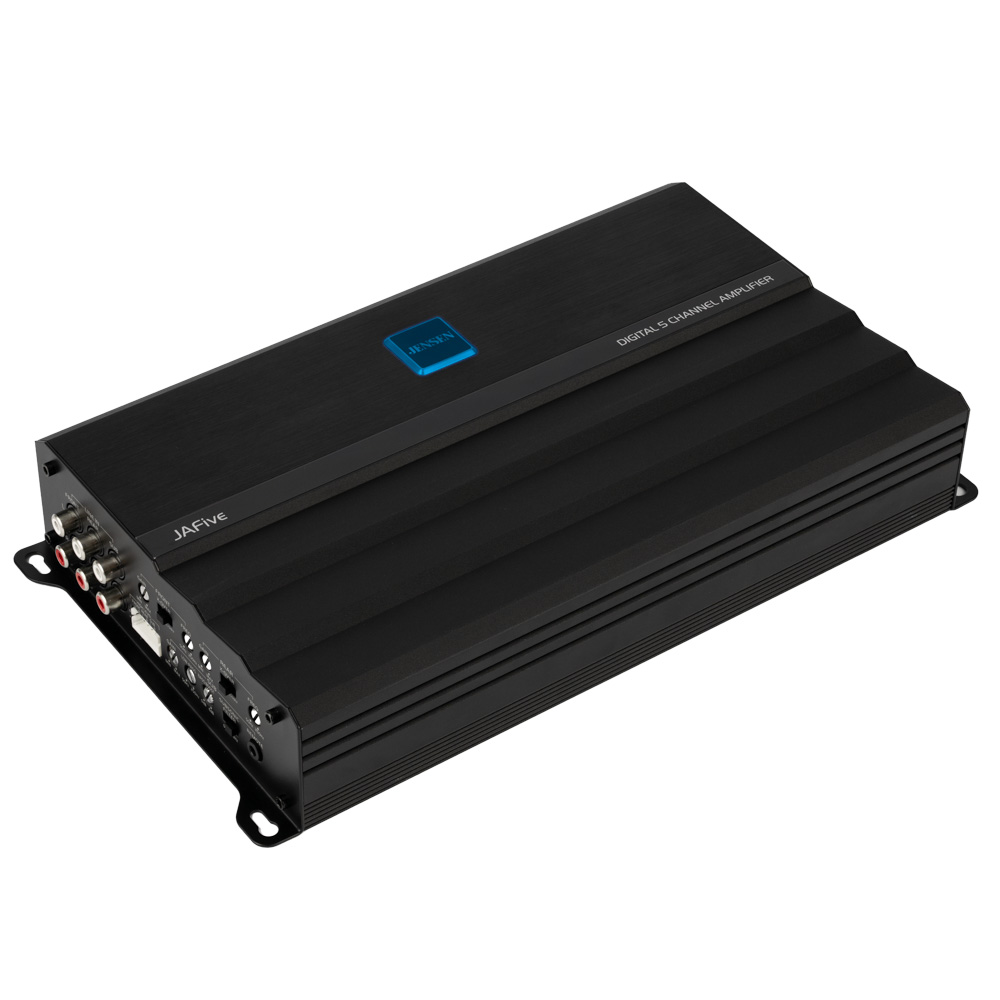

JAFive 5-Channel Class-D Amplifier

All-in-One Powerhouse for Full-System Control

The JAFive is a full-range 5-channel Class-D amplifier built for clean, efficient system-wide control in a single chassis.
With four full-range outputs and a dedicated subwoofer channel, it’s ideal for powering an entire system — front, rear, and sub.
High-level (speaker wire) and low-level (RCA) inputs ensure easy integration with factory or aftermarket head units.

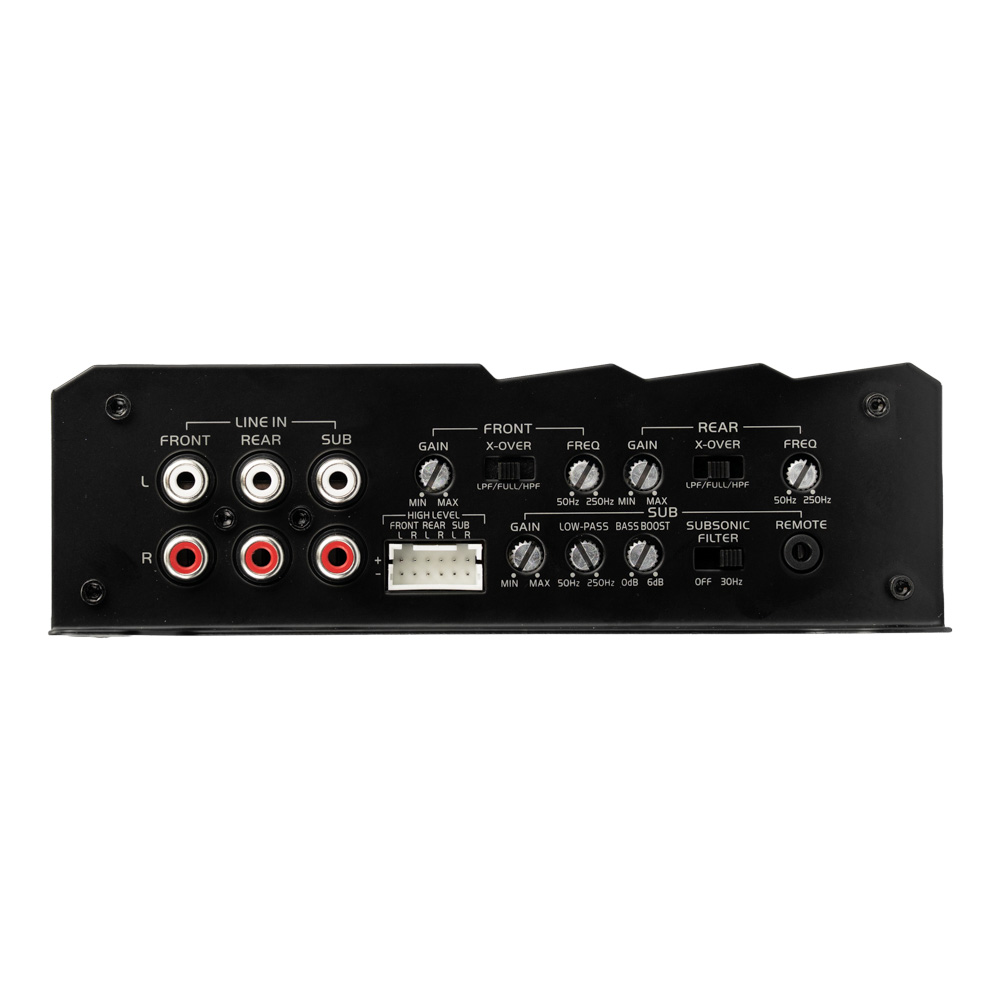

Adjustable crossovers, variable bass boost, and wide-range gain control give installers and enthusiasts flexible tuning
without sacrificing clarity, control, or power.

Why it’s robust

  • System-wide performance: 85W x4 + 310W x1 @ 4Ω, or 135W x4 + 495W x1 @ 2Ω (1% THD+N).
  • Dynamic headroom: Up to 1175W max dynamic power (10% THD+N).
  • Precision tuning: Selectable high-pass/low-pass filters (50–250 Hz), subsonic filter (30 Hz/24 dB), and variable bass boost @ 45 Hz (0–6 dB).
  • Clean signal path: 86 dBA S/N (CH1–4) / 88 dBA (Sub) and <0.12% / <0.20% THD+N at 1W for low-noise, high-impact output.
  • Ready for any system: Works with RCA and speaker-level inputs; 2/4-ohm stereo stable for flexible installations.
  • Installer focused: Variable gain (300 mV–6 V), 4 AWG power/ground and 12 AWG speaker wire recommendations,

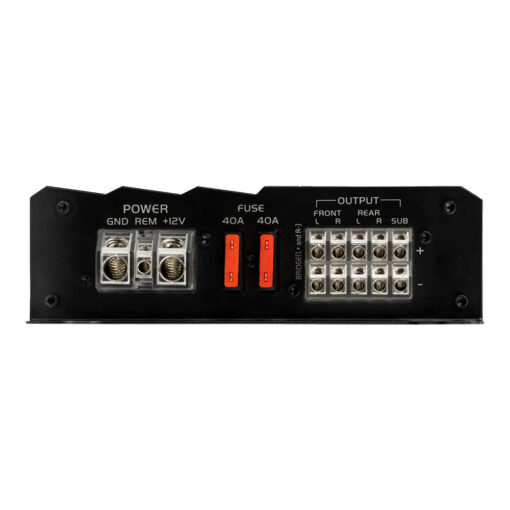

    dual 40A fuses, and a compact chassis: 1.99” x 6.53” x 13.07” (H x D x W).
Speaker Outputs

5
Class

D Digital
Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
Total Dynamic Power

1175 Watts
Crossover

Adjustable high-pass/low-pass/full range 50 Hz – 250 Hz
Frequency Response

20 Hz ~ 20 kHz
Gain Adjustment

Variable 300mV ~ 6V
Recommended Power/Ground Wire

4 AWG
Recommended Speaker Wire

12 AWG

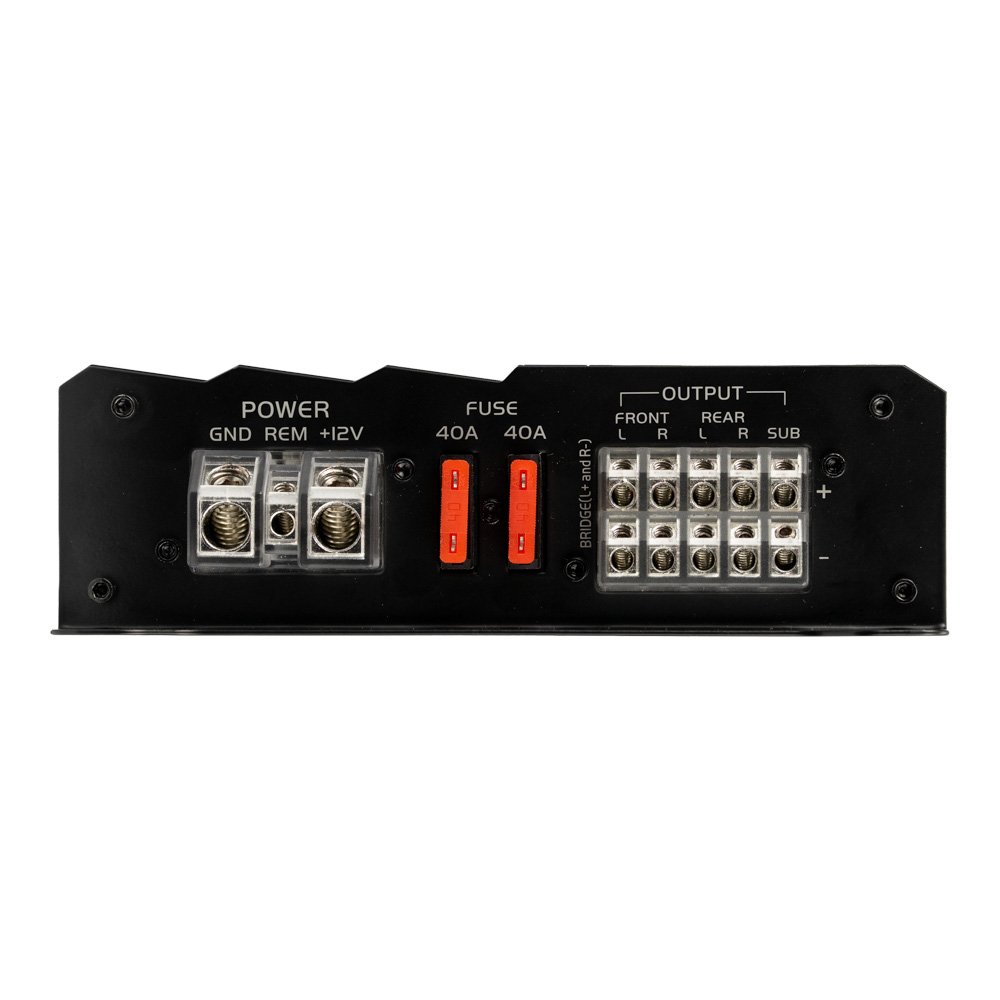

Fuse Size and Type

40A x 2

Power Information

Additional Features and Detailed Specifications:

Specification Details
Variable Gain 300 mV – 6 V
Bass Boost Variable boost at 45 Hz (0–6 dB)
Speaker Impedance 2 or 4 Ohm
Continuous Power Output (1% THD+N)
  • 85 Watts RMS x 4 Channels @ 4 Ohms + 310 Watts RMS x 1 Channel @ 4 Ohms (Sub)
  • 135 Watts RMS x 4 Channels @ 2 Ohms + 495 Watts RMS x 1 Channel @ 2 Ohms (Sub)
Maximum Dynamic Power Output (10% THD+N)
  • 90 Watts x 4 Channels @ 4 Ohms + 345 Watts RMS x 1 channel @ 4 ohms
  • 155 Watts x 4 Channels + 555 Watts x 1 Channel @ 2 Ohms
Frequency Response 20 Hz – 20 kHz (CH 1–4) / 20 Hz – 250 Hz (Sub)
Signal to Noise Ratio 86 dBA (CH 1–4) / 88 dBA (Sub) — reference: 1 Watt RMS
Total Harmonic Distortion (THD+N) <0.12% (CH 1–4) / <0.20% (Sub) at 1 Watt RMS
