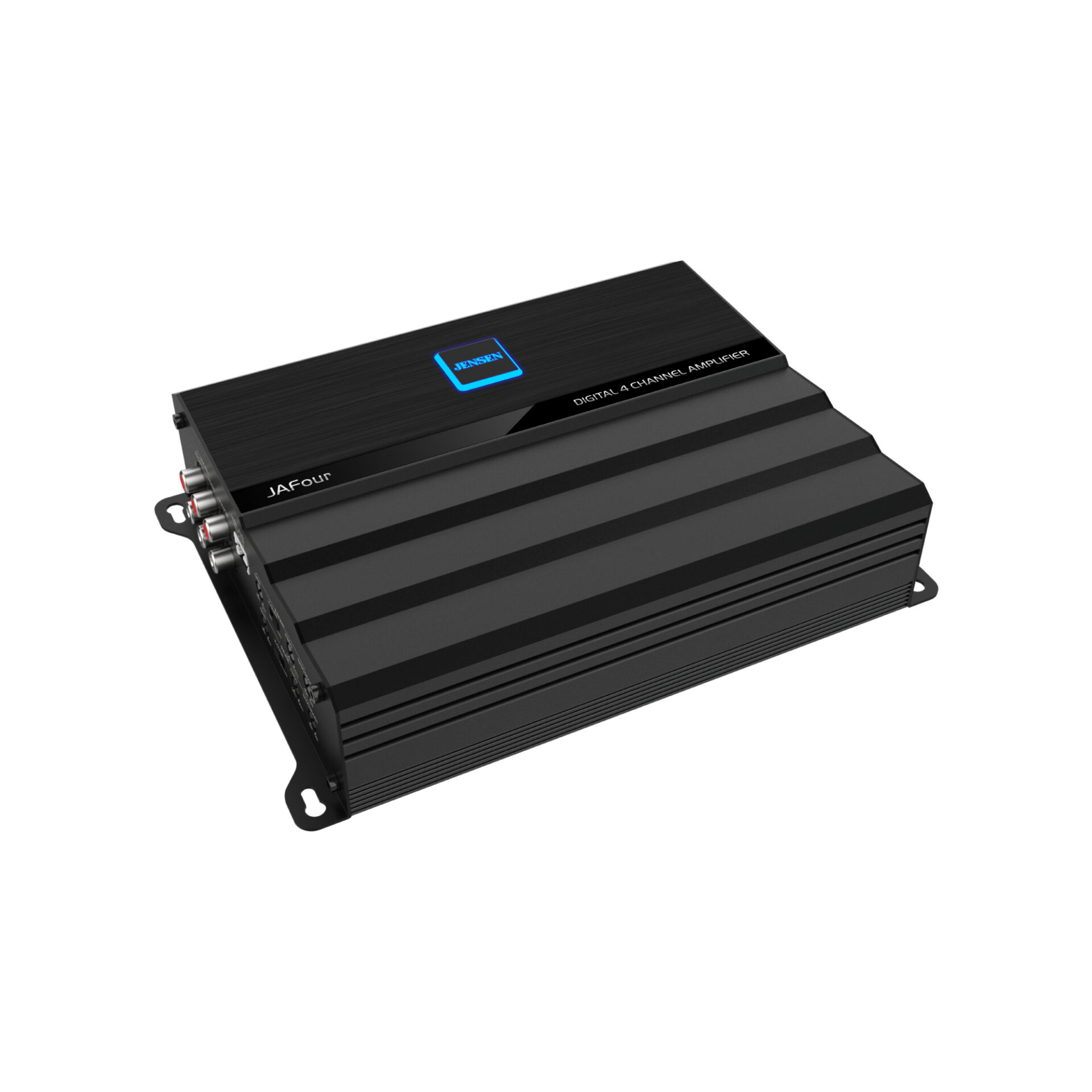

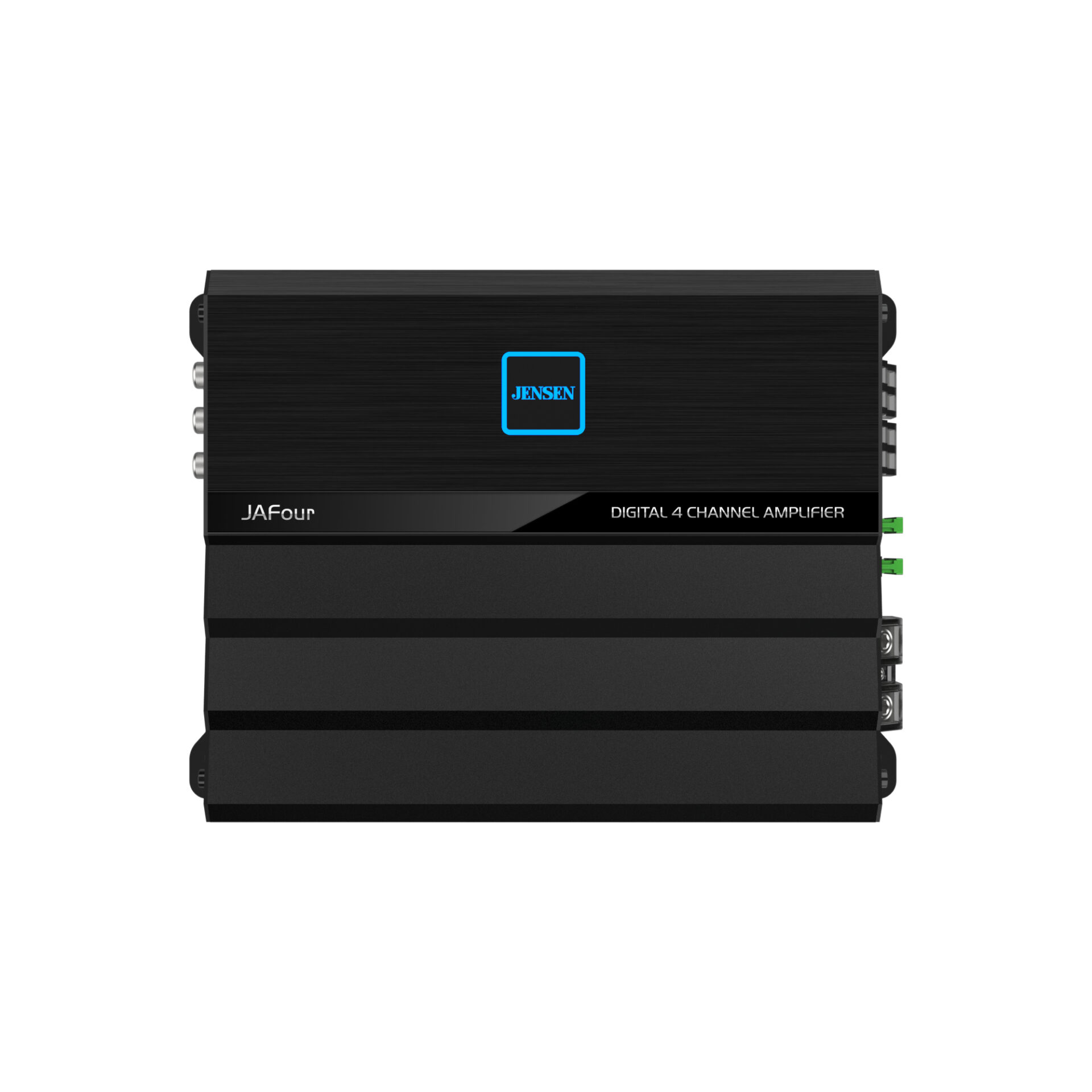

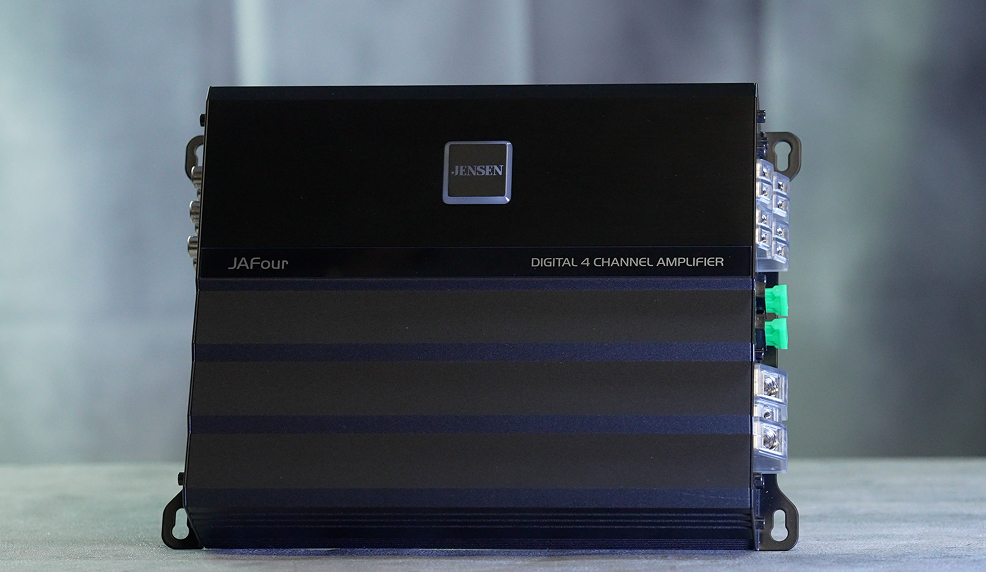

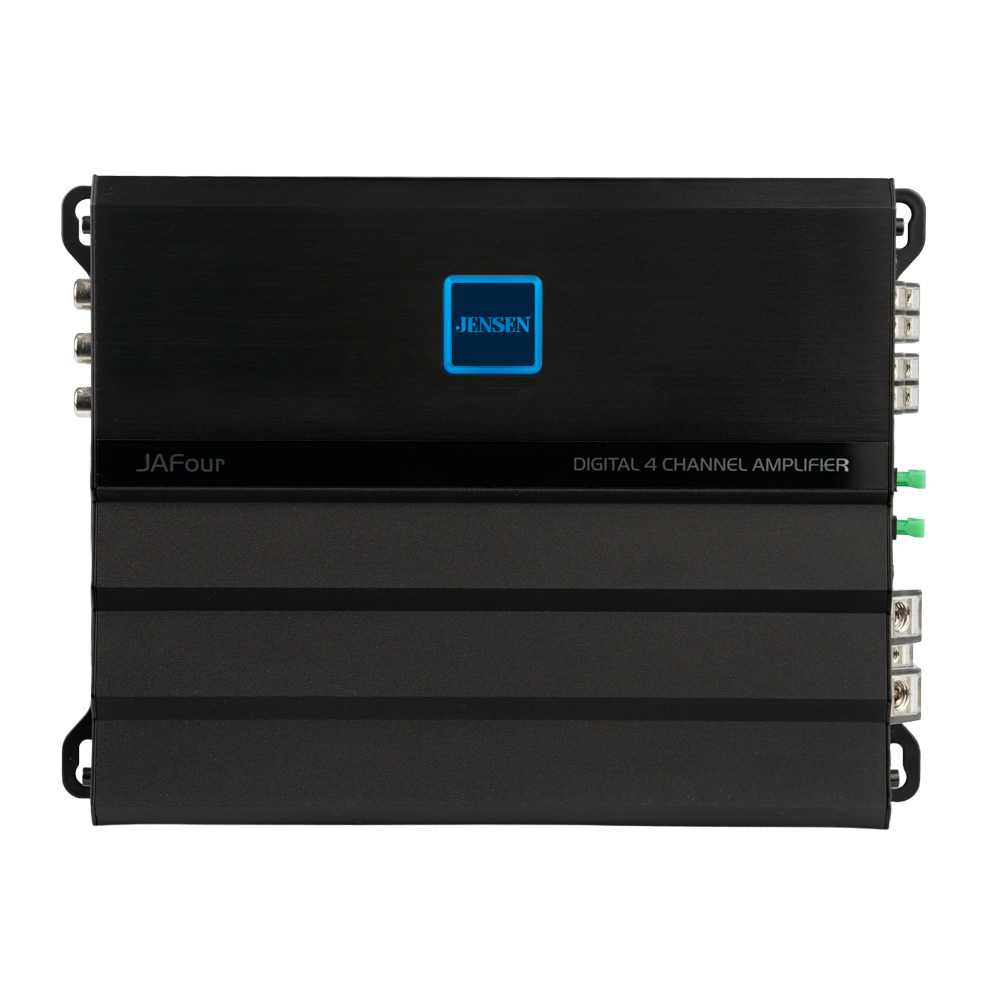

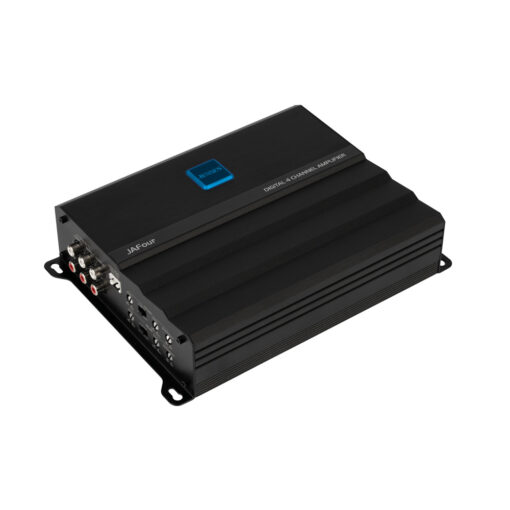

JAFour 4-Channel Class-D MOSFET Amplifier

  • 4-Channel MOSFET amplifier with Class D design
  • Selectable crossover (high pass / low pass / full range)
  • Maximum Dynamic Power: 950 Watts
  • Dimensions: 1.99” x 6.53” x 9.13” (H x D x W)
  • CTA-2006-D Certified

*5-year warranty when professionally installed and registered within 60 days of purchase.

3 to 5 year warranty field
60 day return icon
free shipping icon
SKU: JAFour Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible
JAFour banner shown with speakers on a table
adults celebrating in car with new car audio

Features a 2 Ohm stable operation, variable gain adjustment, selectable high pass/low pass/full range crossover, and Class D Technology for great sound!

Model Features

Peak Power

This amp can reach a max dynamic power of 950 Watts for a powerful listening experience!

compact design icon

Compact Design

This amp’s compact design makes for easy, non-intrusive, and convenient installation!

class d design icon

Efficient Power Output

The JAFour Amp has a class D design for improved longevity and high efficiency power output.

rca input icon

Easy Connection

This amp has RCA inputs for easy connection to any stereo system.

banner that reads stay connected

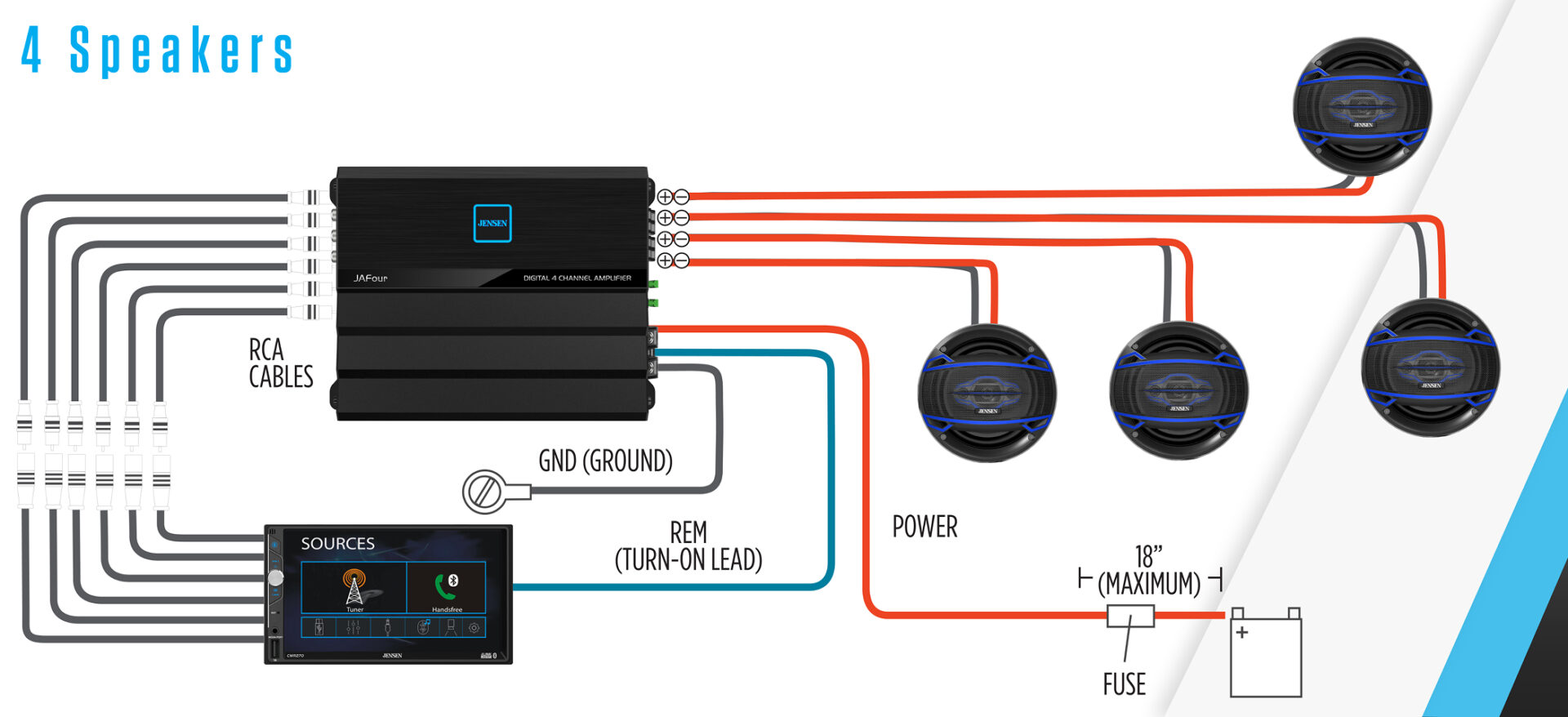

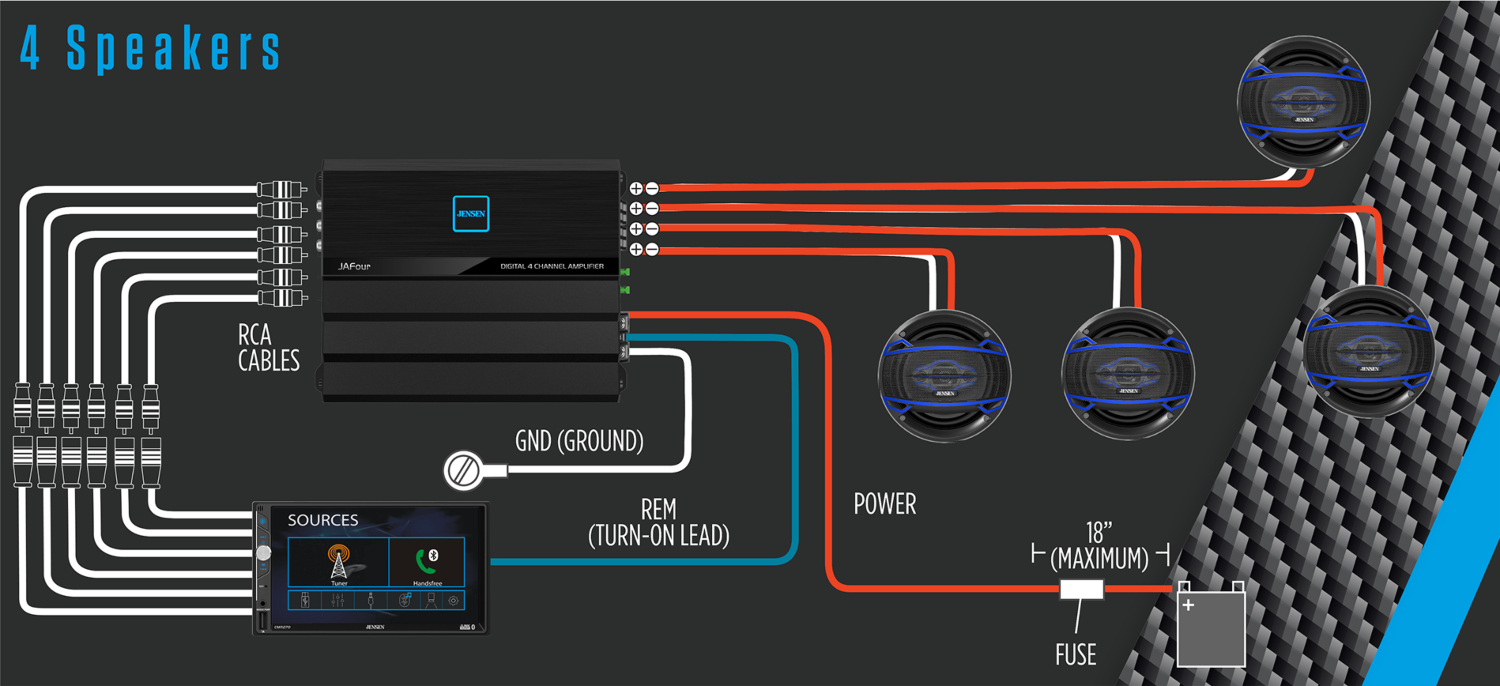

JAFour 4 Speakers Connections Graphic

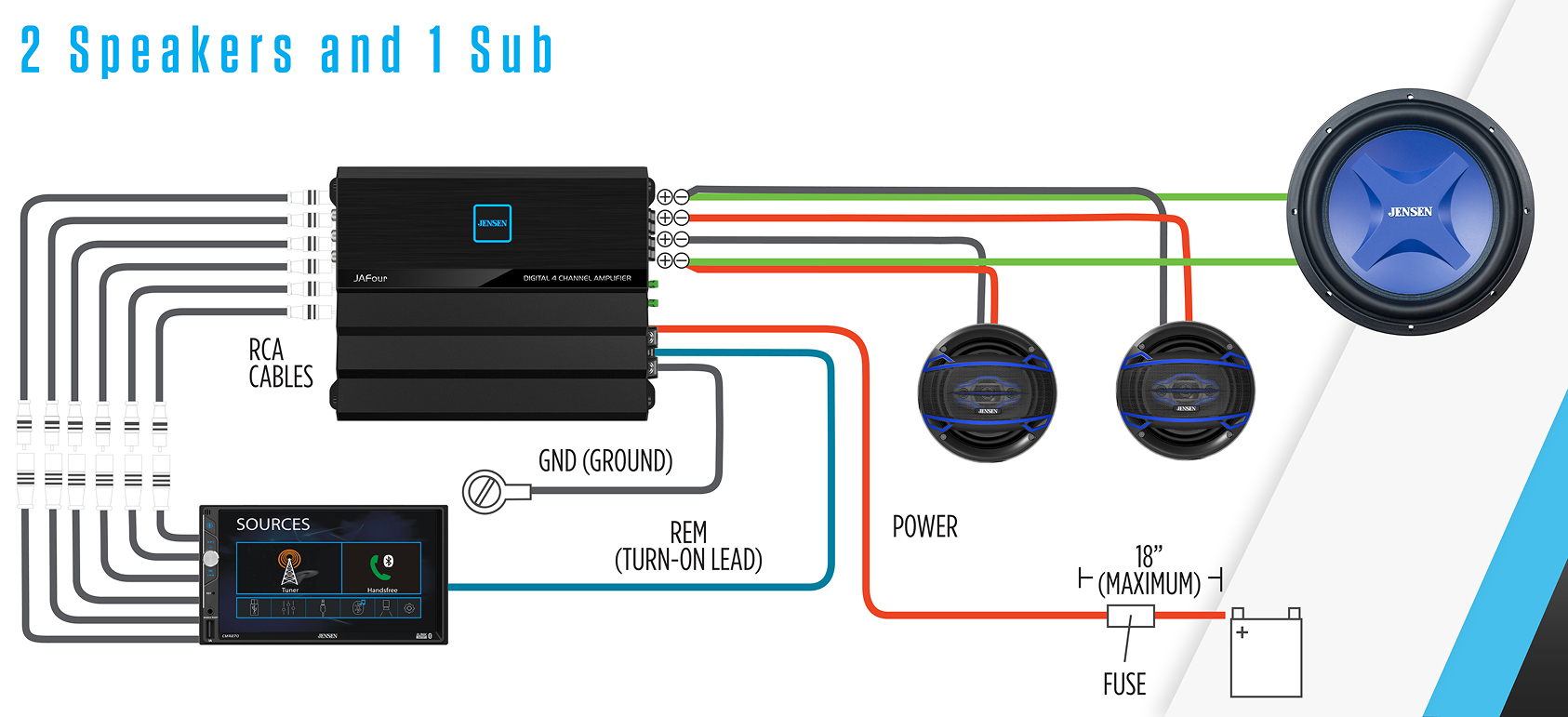

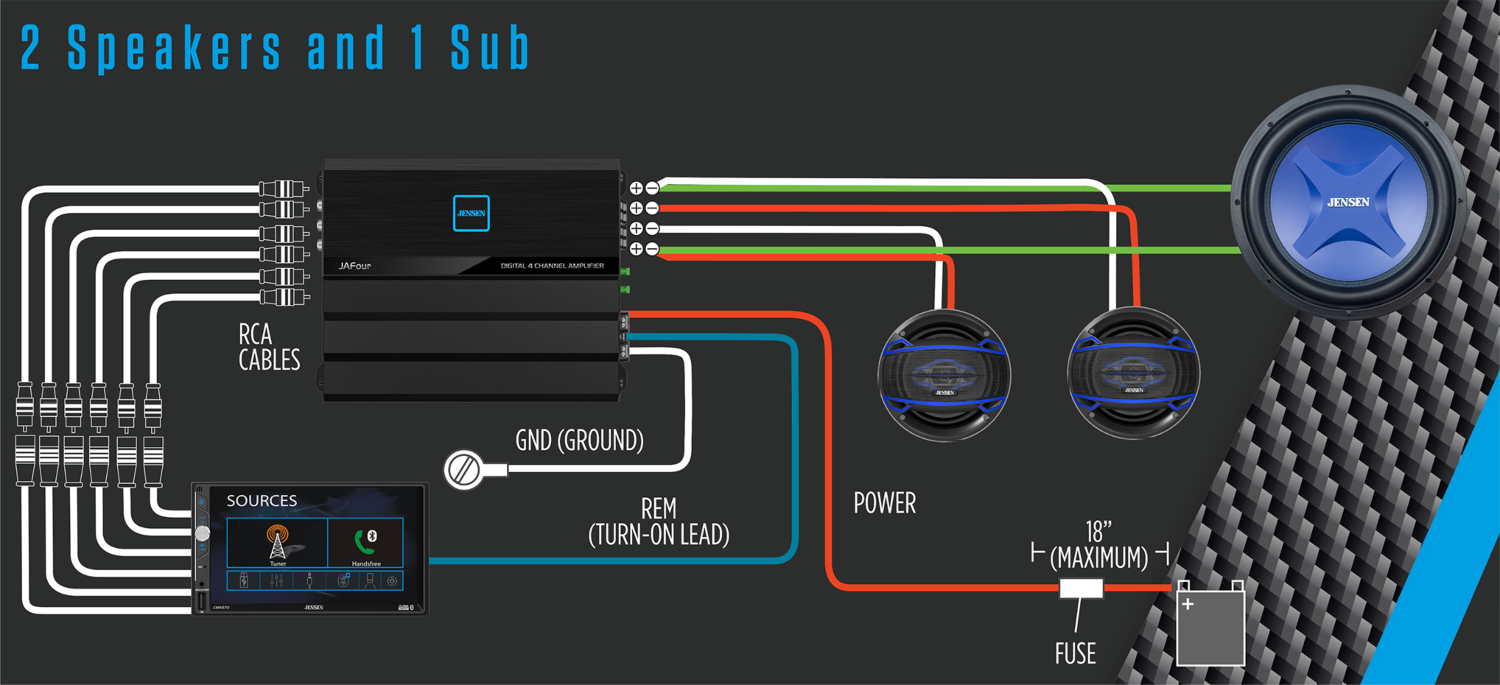

JAFour 2 Speakers 1 Sub Connections Graphic

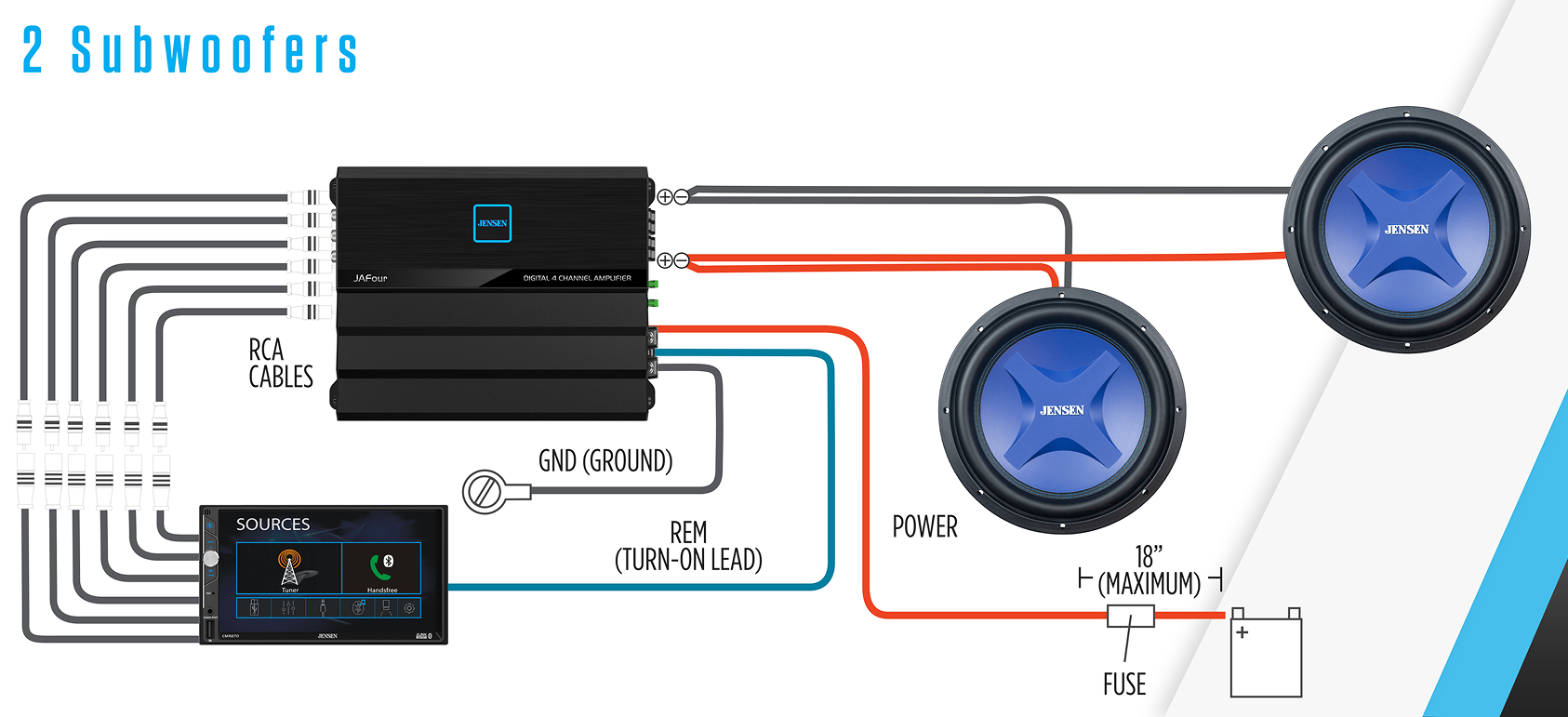

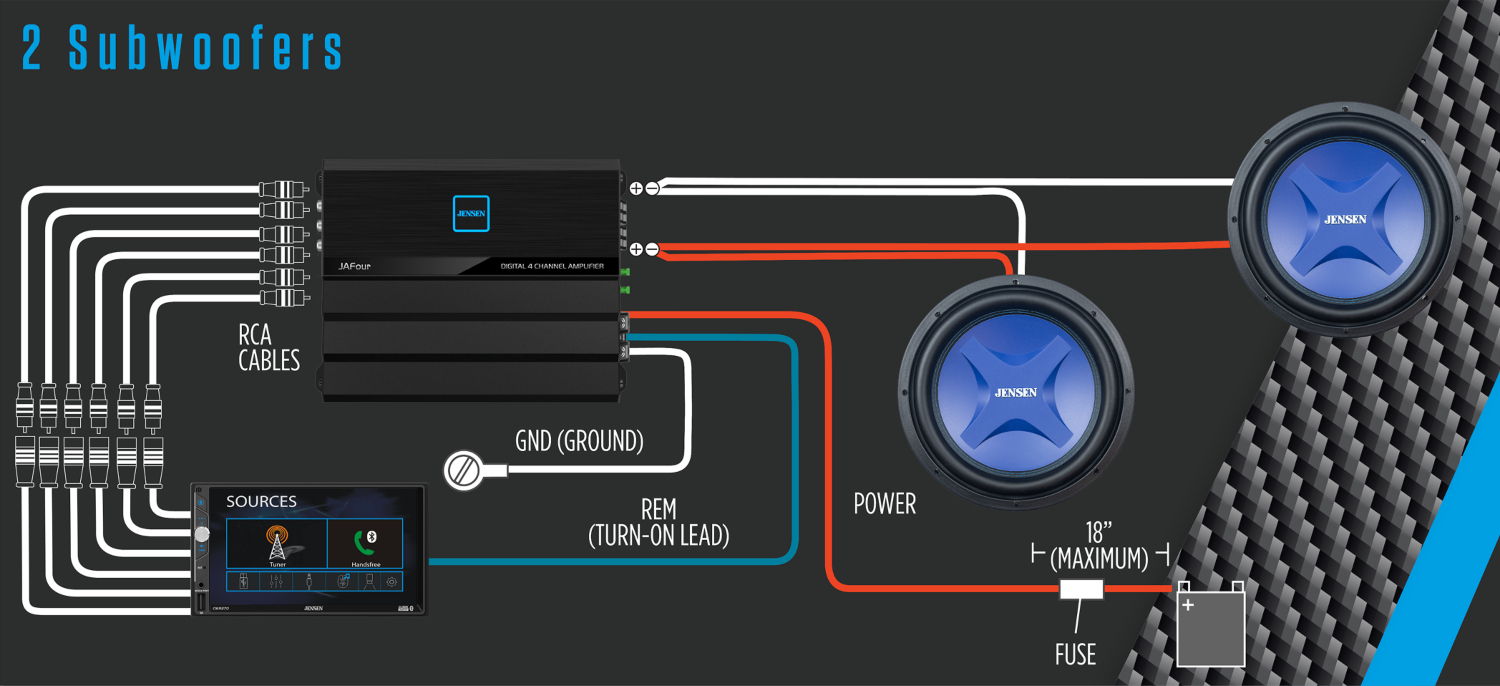

JAFour 2 Subwoofers Connections Graphic

JAFour 4-Channel Class-D Amplifier

Clean Power, Versatile Control, Compact Form

The JAFour is a powerhouse in a sleek chassis, delivering clean Class-D efficiency and 4-channel flexibility.
Whether you’re powering a full system or bridging channels for higher output, this amplifier provides precise control
and strong, reliable performance. It supports both high-level (speaker wire) and low-level (RCA) inputs, making it
compatible with virtually any audio setup. With selectable high-pass, low-pass, and full-range crossovers plus variable
bass boost, you can customize your system’s sound to match your music—or your mood.

Why it’s robust

  • Real power you can use: 125W x4 @ 4Ω, 215W x4 @ 2Ω, or 445W x2 bridged @ 4Ω (1% THD+N).
  • Strong dynamic headroom: Up to 950W max dynamic power (10% THD+N).
  • Precision tuning: Selectable HPF/LPF with wide 50–250 Hz range, plus variable bass boost @ 45 Hz (0–6 dB).
  • Clean signal path: 82 dBA S/N (1 W ref) and <0.12% THD+N at 1 W for smooth, low-noise performance.
  • Flexible integration: Works with high-level and RCA inputs; 2/4-ohm stereo stable; bridgeable for powerful sub setups.
  • Installer friendly: Variable gain (300 mV–6 V), 8 AWG power/ground and 12 AWG speaker wire recommendations,
    30A fuse, and a compact 1.99” x 6.53” x 9.13” (H x D x W) footprint.
Speaker Outputs

4
Class

D Digital
CTA-2006-D Certification

Certified

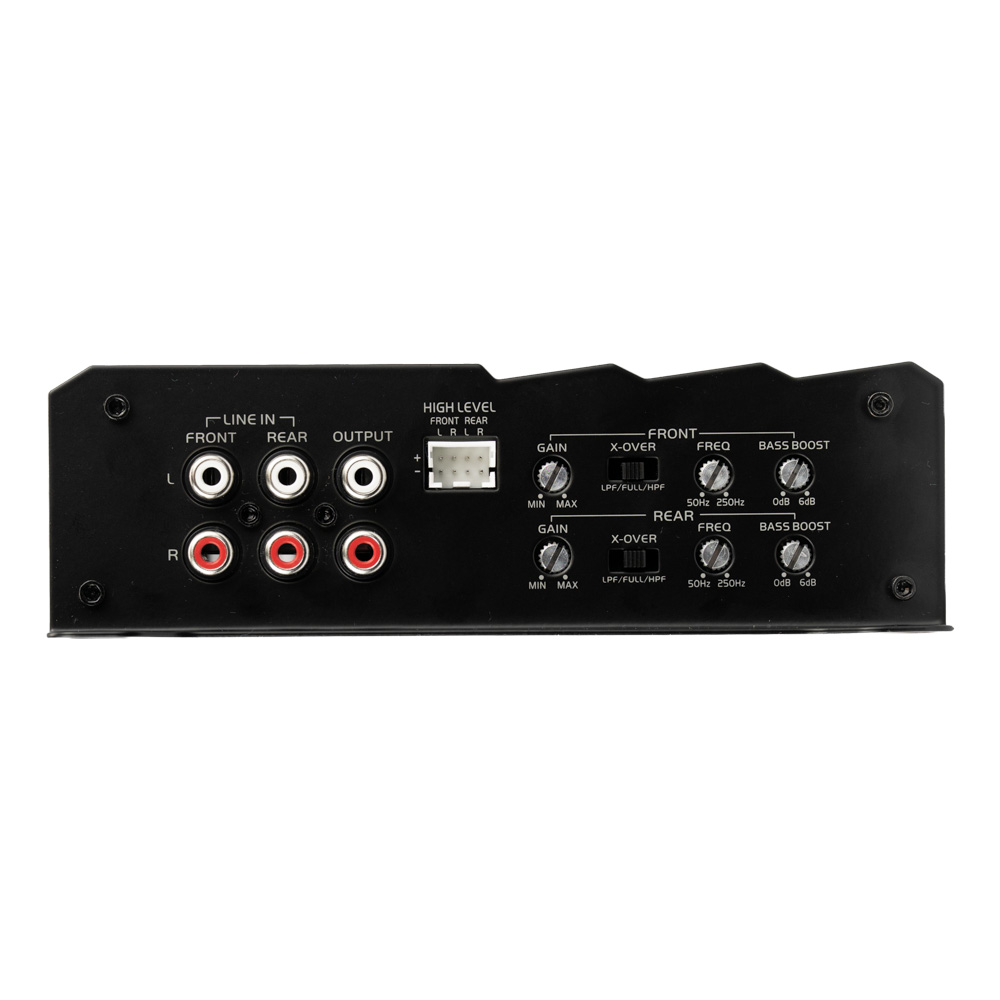

Speaker Inputs

High level (Speaker Wire), Low Level (RCA)
2 Ohm Stable Stereo Operation

Yes
Total Dynamic Power

950 Watts
Crossover

Adjustable high-pass/low-pass/full range 50 Hz – 250 Hz
Frequency Response

20 Hz ~ 20 kHz
Gain Adjustment

Variable 300mV ~ 6V
Signal to Noise Ratio

82 dBA (reference: 1 Watt RMS)
Adjustable Bass Boost

45 Hz
Recommended Power/Ground Wire

8 AWG
Recommended Speaker Wire

12 AWG

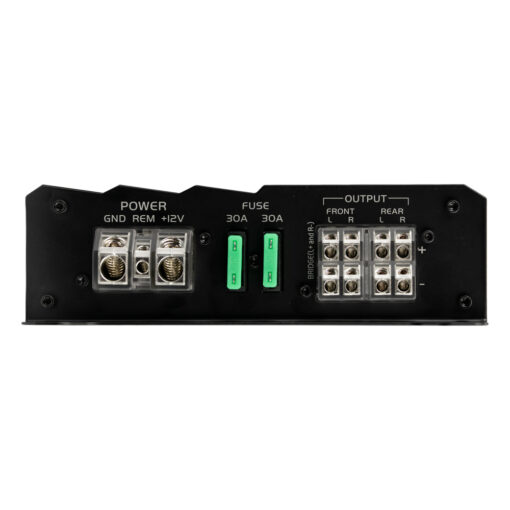

Fuse Size and Type

30A x 2

Manuals & More

JAFour

Additional Features and Detailed Specifications:

Specification Details
Variable Gain 300 mV – 6 V
Bass Boost Variable boost at 45 Hz (0–6 dB)
Speaker Impedance 2 or 4 Ohm
Continuous Power Output (1% THD+N)
  • 130 Watts RMS x 4 Channels @ 4 Ohms
  • 215 Watts RMS x 4 Channels @ 2 Ohms
  • 440 Watts RMS x 2 Channels @ 4 Ohms (Bridged)
Maximum Dynamic Power Output (10% THD+N)
  • 145 Watts x 4 Channels @ 4 Ohms
  • 235 Watts x 4 Channels @ 2 Ohms
  • 465 Watts x 2 Channels @ 4 Ohms (Bridged)
Frequency Response 20 Hz – 20 kHz
Signal to Noise Ratio 82 dBA (reference: 1 Watt RMS)
Total Harmonic Distortion (THD+N) <0.12% at 1 Watt RMS
