JATwo Amplifier 2-Channel MOSFET Amp

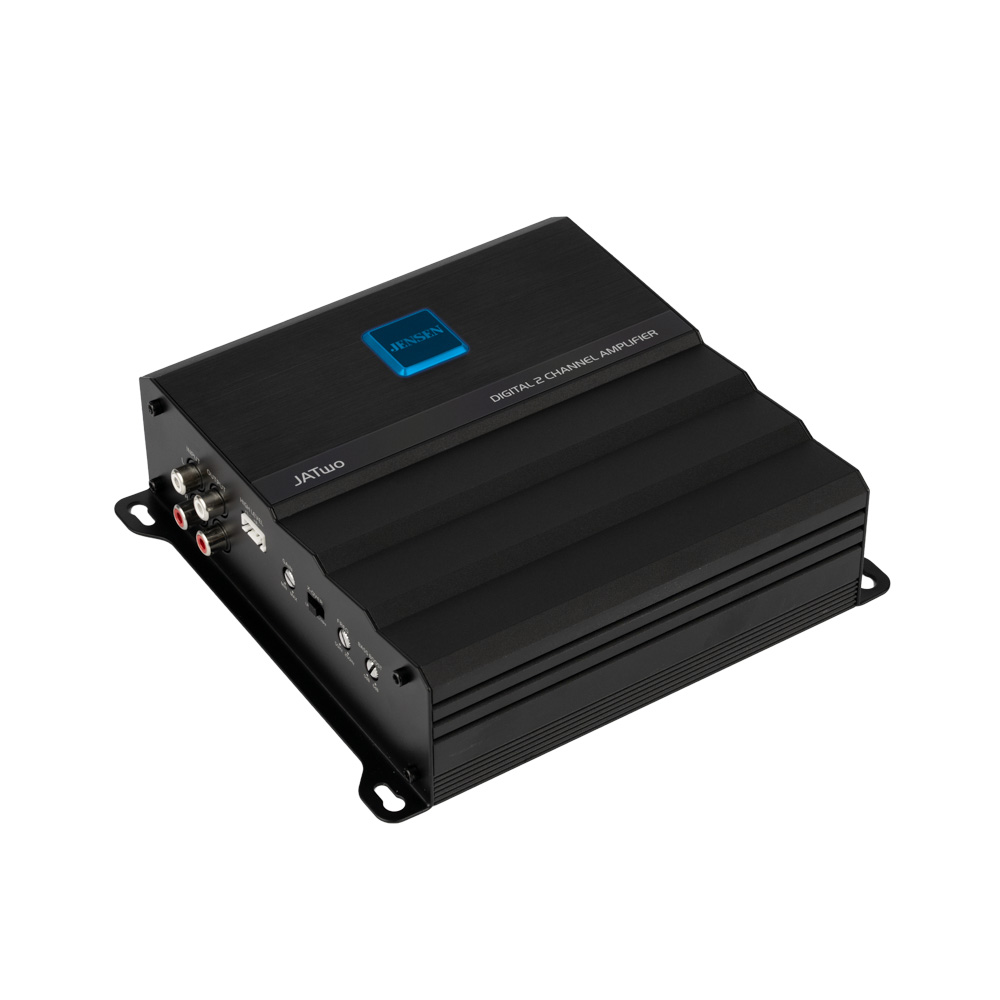

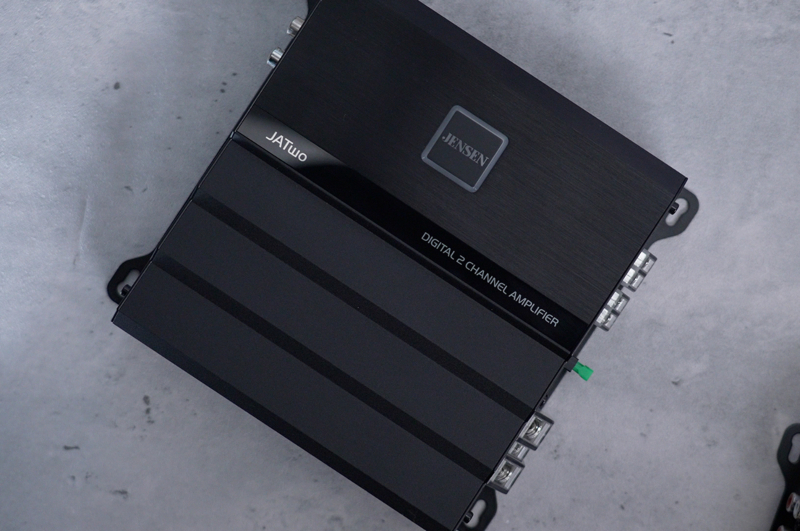

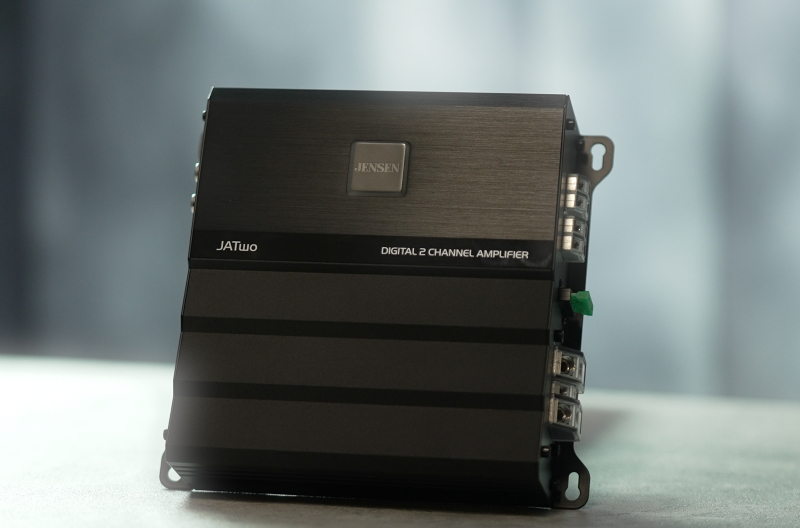

JATwo 2‑Channel Class‑D Amplifier

Clean Power, Flexible Control, Compact Size

Deliver tight, dynamic sound in tight spaces. The JATwo packs efficient Class‑D power and installer‑friendly controls into a compact chassis, giving you precise tuning and reliable output whether you’re running a pair of full‑range speakers or bridging for a subwoofer.

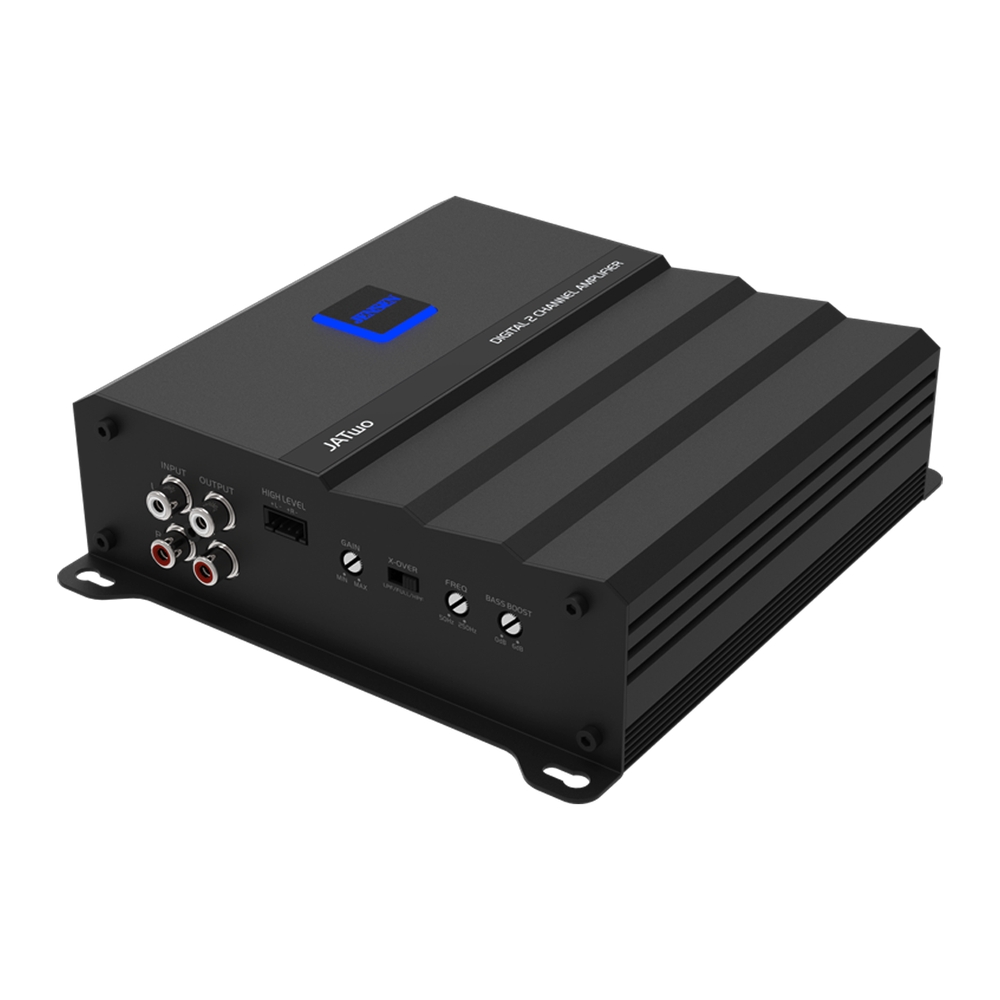

High‑level (speaker‑wire) and low‑level (RCA) inputs make integration simple with factory or aftermarket head units, while selectable high‑pass/low‑pass crossovers and variable bass boost let you dial in your system to the room—or the road.

Why it’s robust

• Real power you can use: 125W x2 @ 4Ω, 215W x2 @ 2Ω, or 445W x1 bridged @ 4Ω (1% THD+N).
• Strong dynamic headroom: Up to 530W max dynamic power (10% THD+N).
• Precision tuning: Selectable HPF/LPF with wide 50–250 Hz range, plus variable bass boost @ 45 Hz (0–6 dB).
• Clean signal path: 87 dBA S/N (1 W ref) and <0.12% THD+N at 1 W for clear, low‑noise playback.

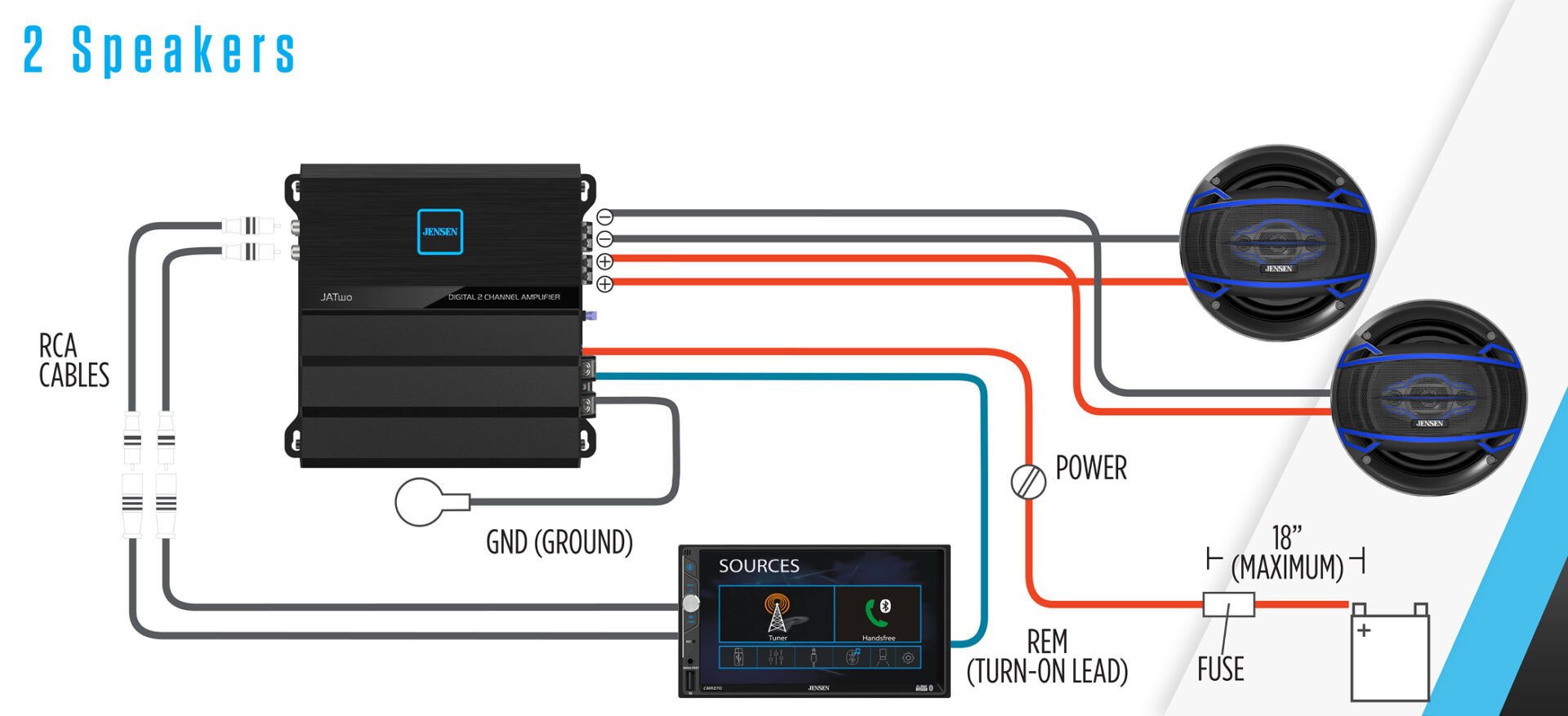

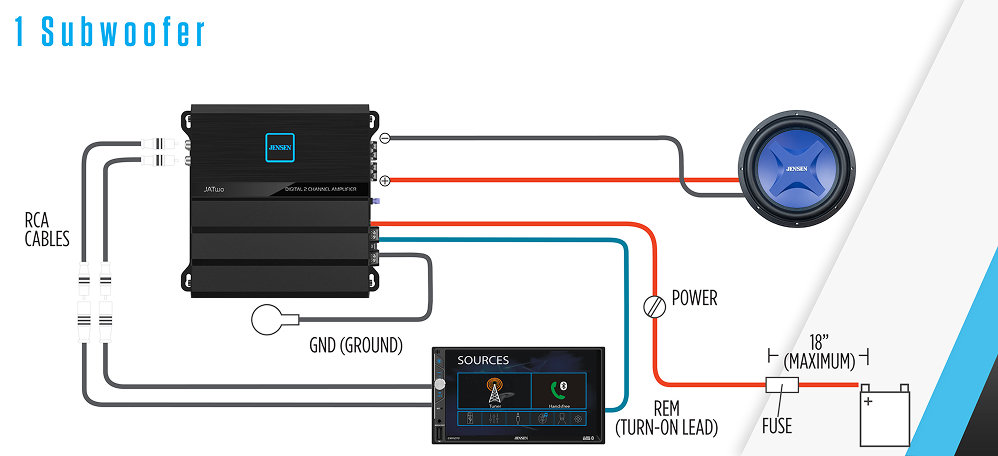

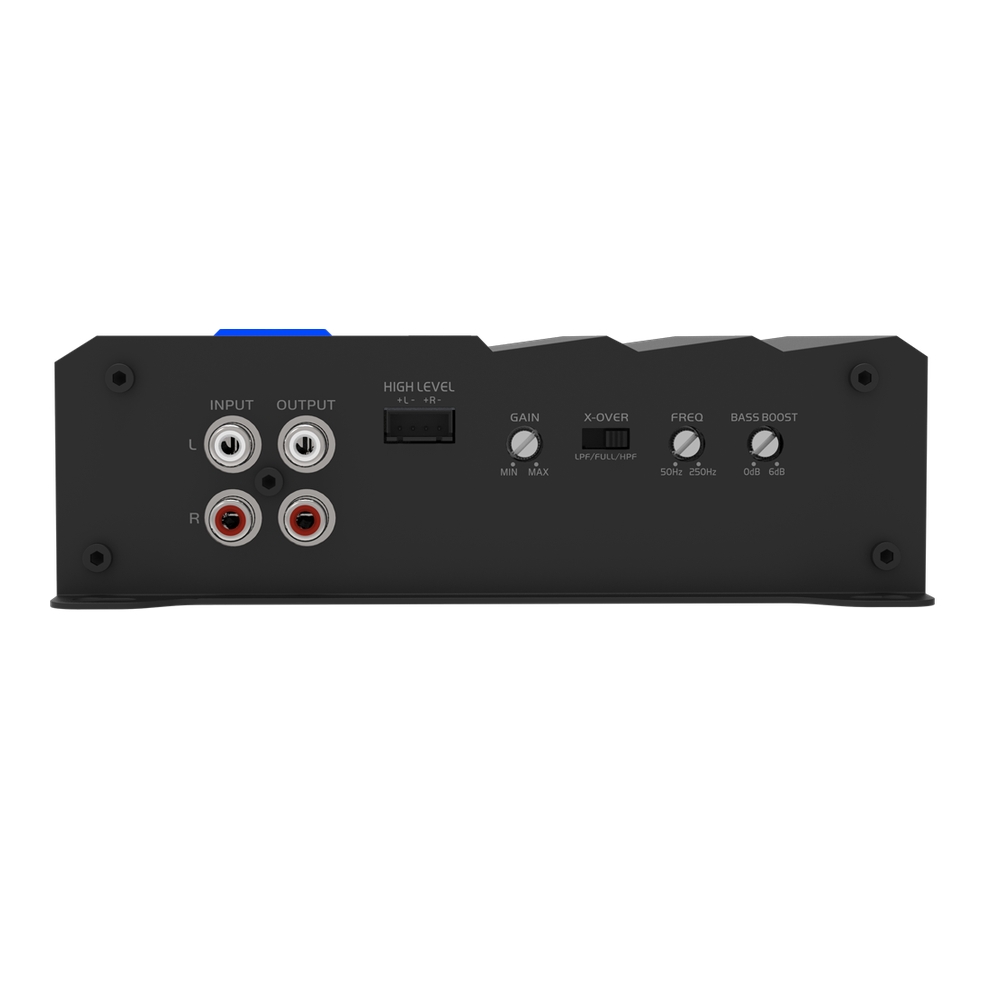

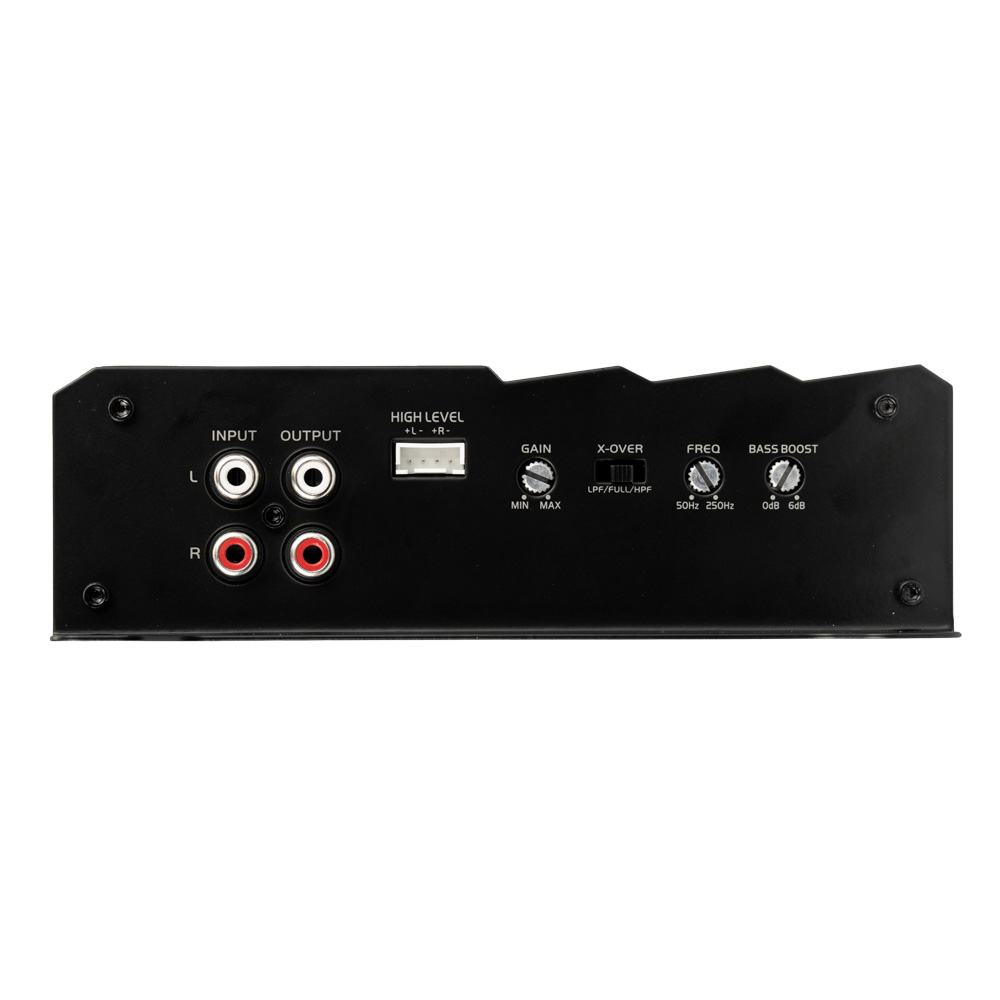

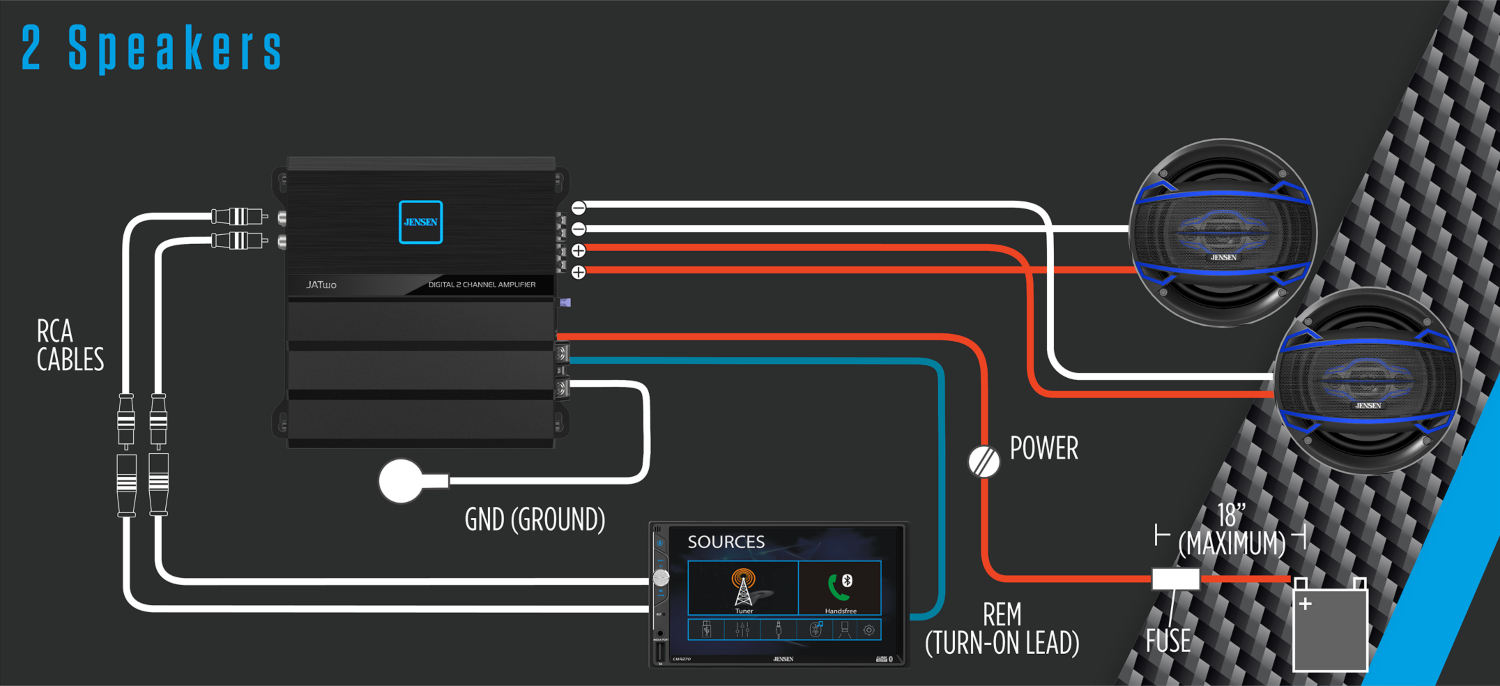

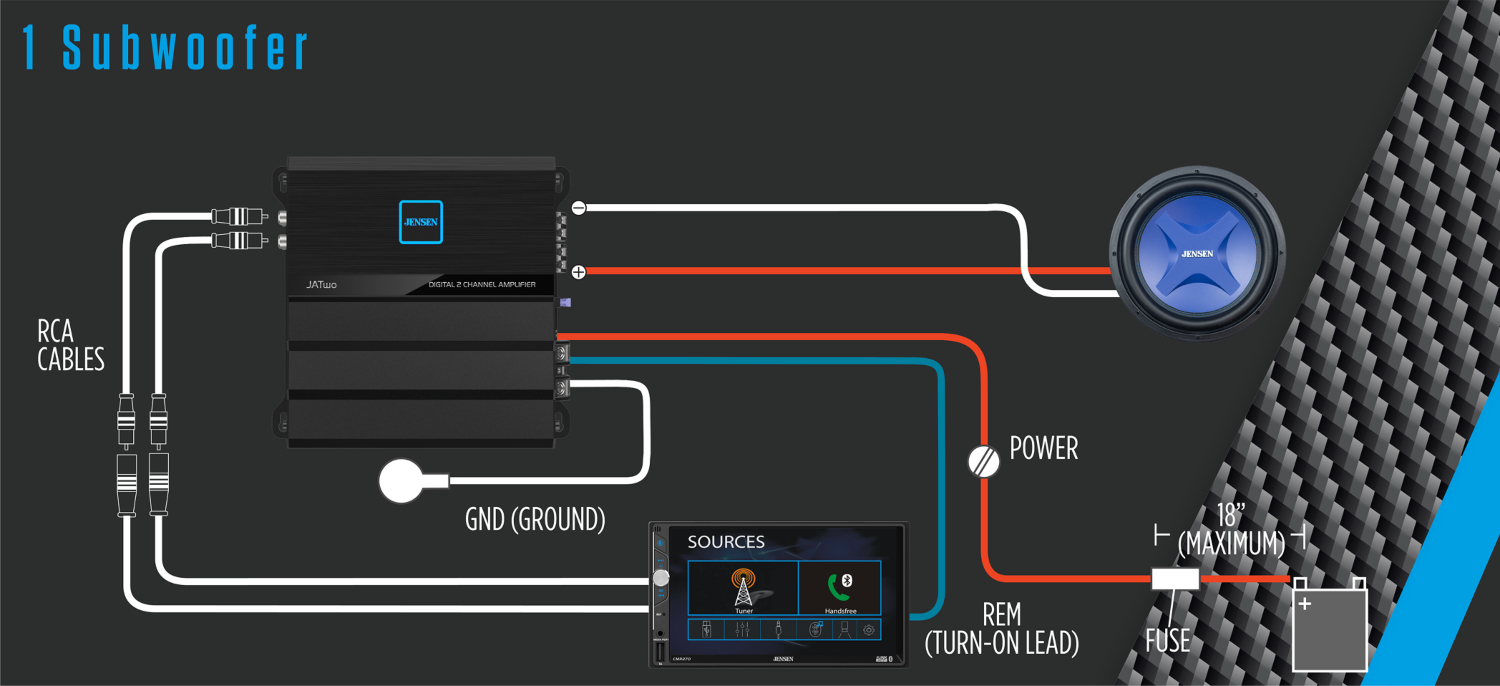

• Easy integration: High‑level and RCA inputs; 2/4‑ohm stable stereo; bridgeable for sub applications.

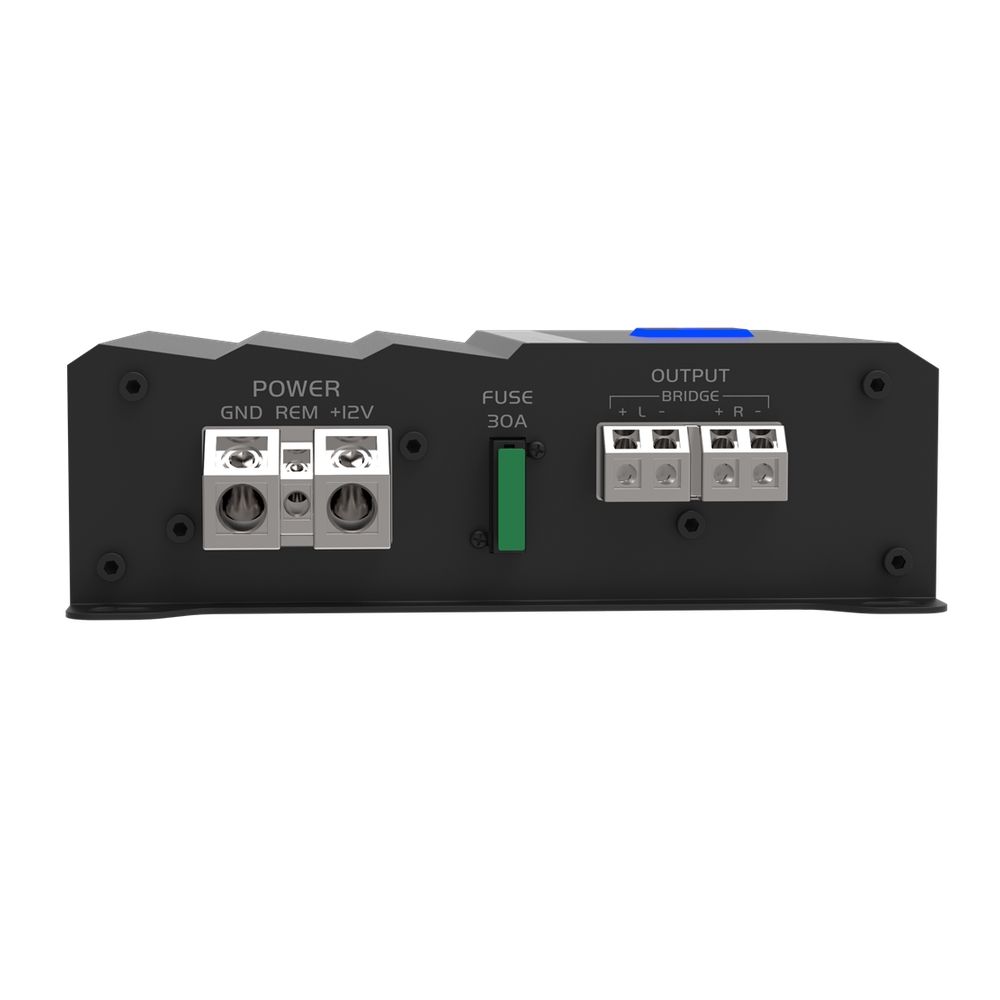

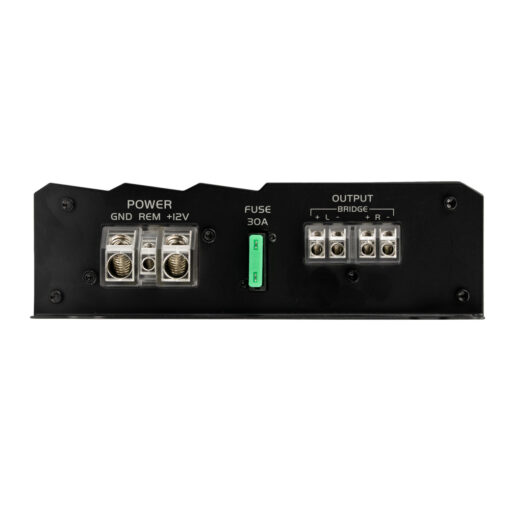

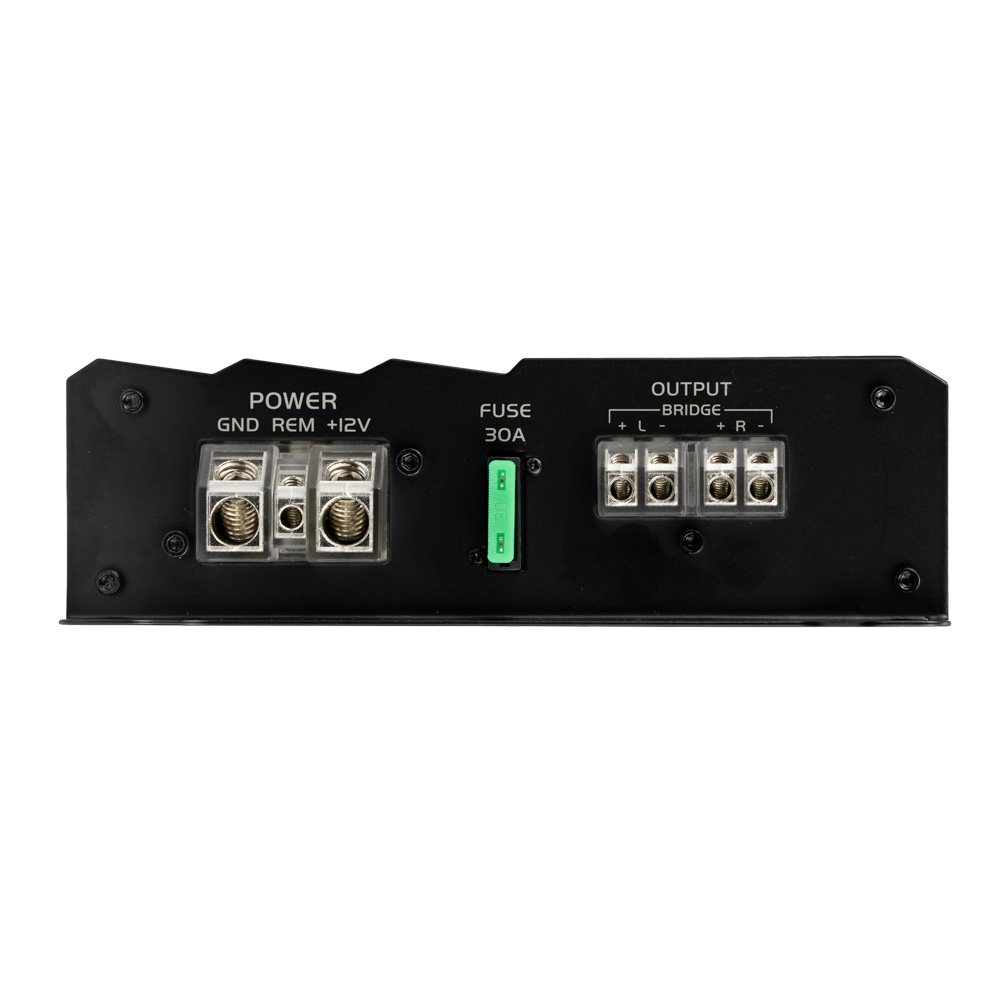

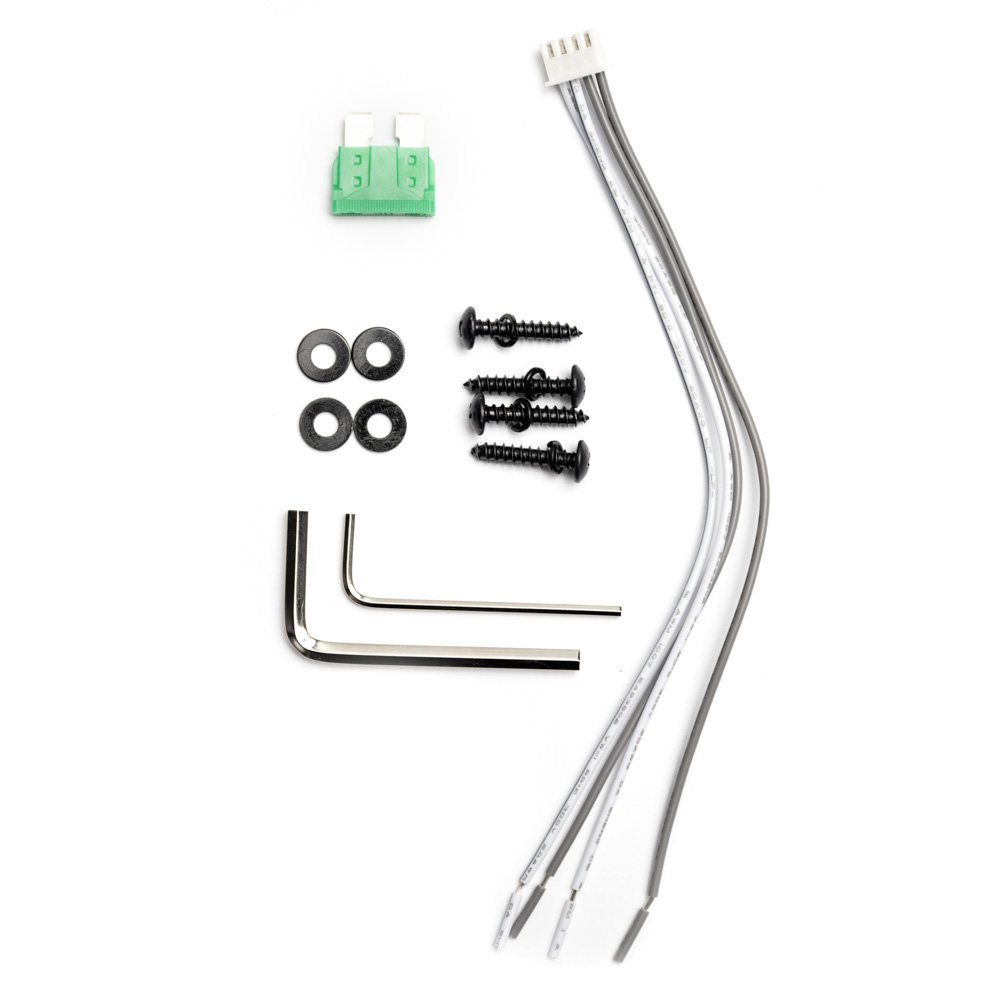

• Installer friendly: Variable gain (300 mV–6 V), 8 AWG power/ground and 12 AWG speaker wire recommendations, 30A fuse, and a compact 1.99″ x 6.54″ x 6.77″ (H x D x W) footprint.
