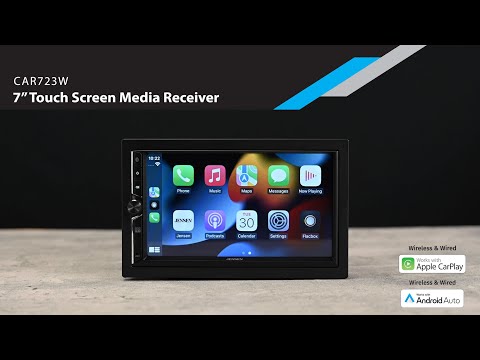

Jensen CAR723W-BC 7” Touchscreen Receiver with Backup Camera

$289.99

*4-year limited warranty when registered within 60 days of purchase.

extend 2 year warranty image badge to 4 years
60 day return icon
free shipping icon


SKU: CAR723W-BC Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible

With Apple CarPlay and Android Auto, seemlessly control key phone features directly from the receiver’s touchscreen or via voice-control, significantly reducing driver distraction.

With voice-control you can ask your phone to control your messages, maps, music and phone.

Both Apple CarPlay and Android Auto launch upon connecting a compatible phone to the receiver via wirelessly or USB.

Apple CarPlay and Android Auto Certified Badges
Apple CarPlay and Android Auto Certified Badges
adults celebrating in car with new car audio
adults celebrating in car with new car audio

Bluetooth Hands-Free Calling

Safely answer and make calls from your receiver using touchscreen icons and the included microphone.

bluetooth symbol and word

Model Features

7-inch touch screen icon

7″ Touchscreen

Your LCD high resolution touch screen provides a comfortable viewing experience and keeps all your favorite presets/apps within fingers reach!

rear camera icon

Front & Rear Camera

You have the option to install a backup camera to your car receiver so you are always aware of your surroundings as you reverse.

push to talk icon

Push-To-Talk Button

Communicates via your phone’s bluetooth connection to the radio. Interact with your smartphone’s assistant while you drive with only a push of a button.

eq presets symbol

7 Preset EQ Curves

The 7 preset EQ curves lets you tweak the audio settings to suit your listening preferences. Switch between Pop, Jazz, Rock, Flat, Classic, Beat and User.

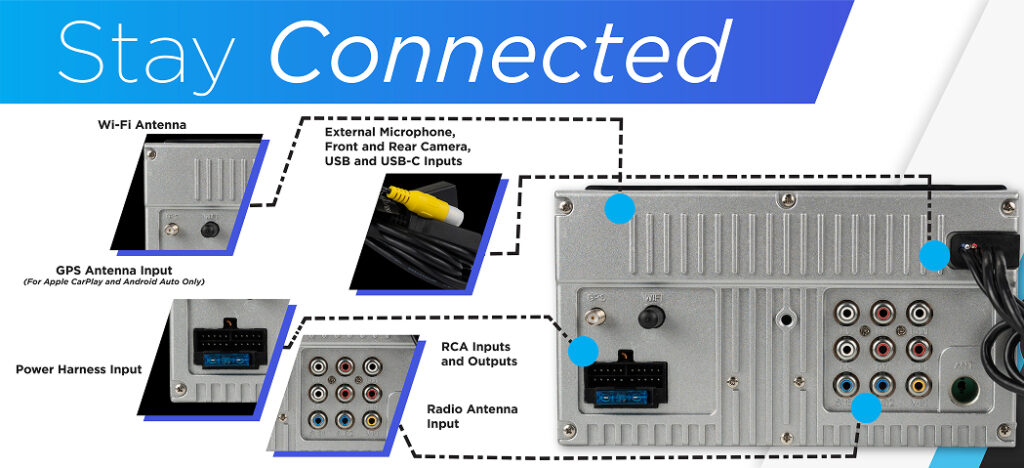

Rear Connections Diagram showing car radio rear inputs
Playback

Digital Multimedia
Screen Size

7"
Size

Double Din
Peak Power

240W (60W x 4) MOSFET
Phone Connectivity

Android Auto, Android Auto Wireless, Bluetooth, CarPlay, CarPlay Wireless
Bluetooth Features

Audio Streaming, External Microphone, Hands-free Calling, Phonebook Support, Voice Activation Button
Inputs

Front View Camera, Rear View Camera, USB x 2 (Rear)
USB Charge

2.1A
File Playback

FLAC, MP3
Preamp Outputs

3 Pairs of 4V Preamp Outputs (Front + Rear + Sub)
Audio Processing

7 EQ Presets, 10 Band EQ
Illumination

6 Preset Colors
Steering Wheel Control Compatible

Yes – Adapter Required
Wallpapers

6 Selectable
AM/FM Receiver

30 Station presets (18FM/12AM), RDS

Firmware Update Instructions

A Note about Firmware Update via USB Devices

We recommend following the guidelines below for your USB drive:

  • Use an 8GB or 16GB USB drive from a common USB drive manufacturer.
  • Some recommended brands include:
    • SanDisk®
    • Kingston®
    • PNY®
    • Verbatim®
    • Corsair®
  • The drive should support USB 2.0 or faster transfer speeds. Older USB 1.0 drives are not compatible.
  • Format the drive using FAT32 as the file system on your laptop or computer before copying the software update to the USB drive.

This update addresses the following:

  • Improved connection with iPhone 16.
  • Removed audio on startup if the vehicle is shut off with the radio powered off.
  • Daylight Savings settings now work with GPS Time Sync.

Note: Software is not interchangeable between models. This firmware update is intended only for the
CAR723W, CAR723W-CAM, and CAR723W-BC.
Please do not attempt this update on any other model.

How to Update:

  1. Download the firmware file from the link below.
  2. Unzip the downloaded file.
    Note: If you are unable to unzip the file, the program WINRAR may be required and can be downloaded from this link:

    WINRAR Download
  3. Copy the ISPBOOOT.BIN file and the Update folder to an empty USB Thumb Drive formatted to FAT32.
  4. Insert the USB Thumb Drive containing the update firmware into the
    Android Auto/Apple CarPlay Port Only.
  5. Navigate to Settings and scroll until you reach the About button on the left side of the menu.
  6. Press the About button. On the right-hand side, you will see Software Update.
  7. Press Software Update, and then press the Update button to begin the firmware upgrade.
  8. This is a two-part update. After the first update is complete, the radio's screen will turn black for approximately 10 seconds. The second part of the update will then begin automatically. Once the update is finished, the radio will restart.
  9. Remove the USB Thumb Drive. The update is now complete.

Firmware Version Information

  • MCU: GD72-260205
  • SOC: CAR723W-251029
  • Hardware Version: 2.0.3
  • Software Version: 2.0.3
  • SDK Version: MJ2.2 54.0.20.0.2.6.1.0

Download Firmware Zipped File:

CAR723W Firmware Download
