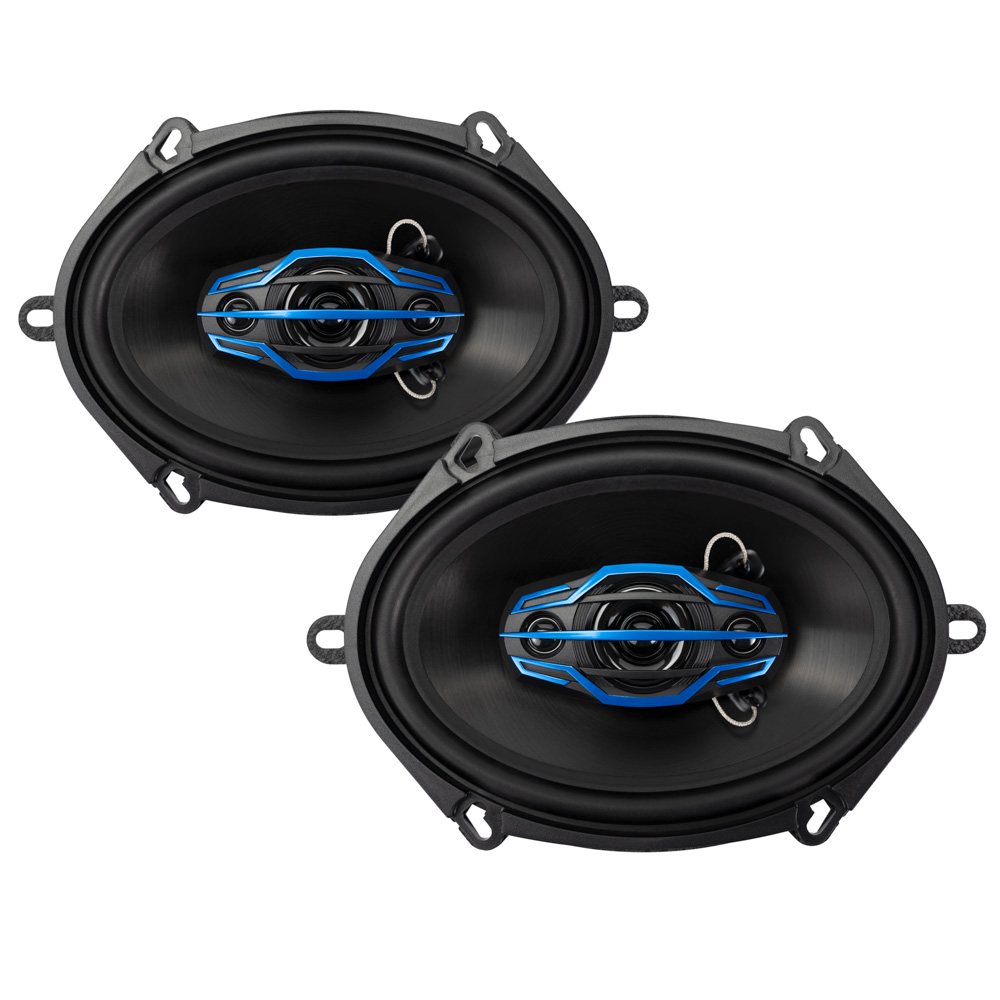

car speakers JS6804 pair

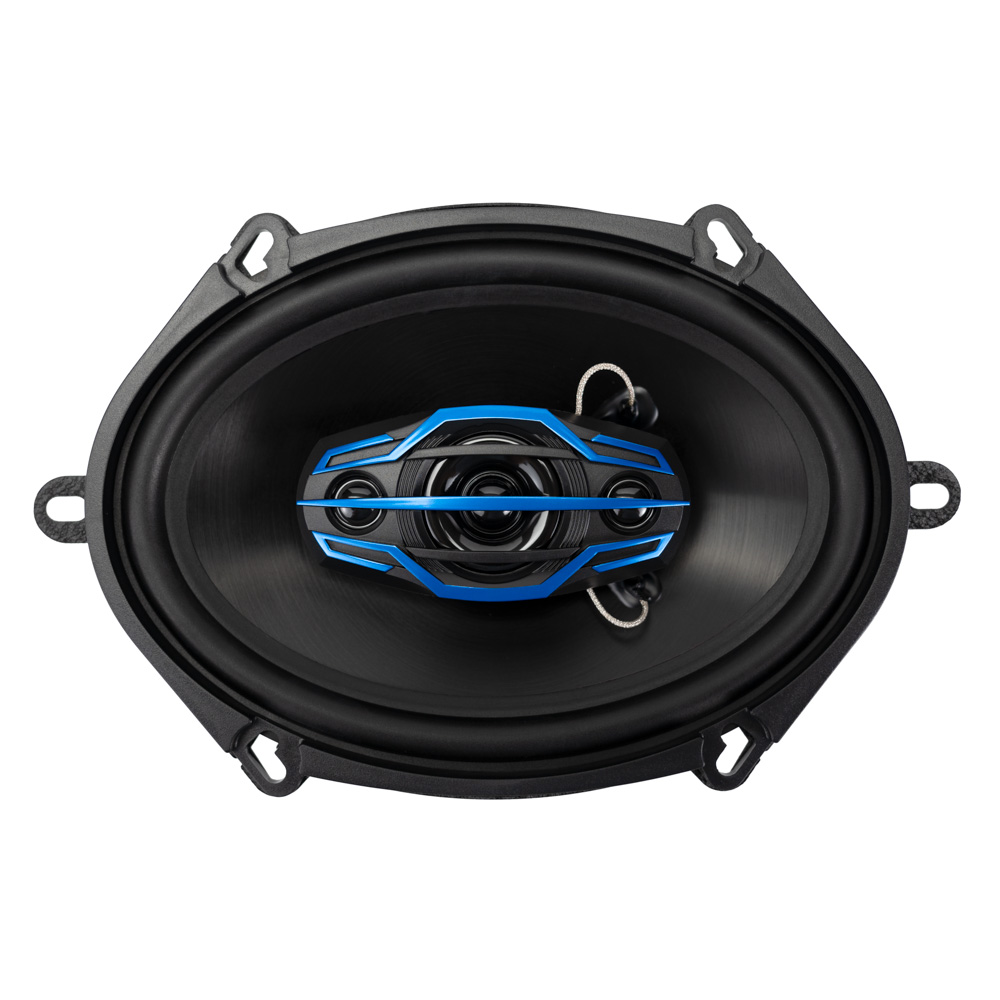

car speakers JS6804 front
car speakers JS6804 size and power information
car speakers JS6804 installed in car door
car speakers JS6804 features
car speakers JS6804 features at a glance
car speakers JS6804 wires and mounting hardware

4-Way 5×7 / 6×8 inch 4-Way Car Audio Speakers Pair with 160 Watts Peak Power – JS6804

  • Sold in Pairs
  • 5″ x 7″ / 6″ x 8″ Speakers
  • 35mm Mylar Balanced Dome Midrange
  • Two 15mm Piezo Tweeters
  • RMS Power: 40 Watts / Peak Power: 160 Watts

amazon logo with link to product

*3-year warranty when professionally installed and registered within 60 days of purchase.

3 year warranty icon
60 day return icon
free shipping icon

SKU: JS6804 Category:
connect your journey slogan
couple riding in car listening to music and waving hands in the air from convertible

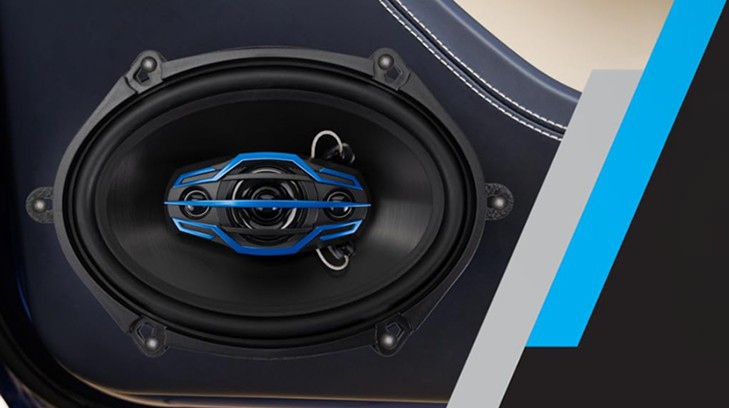

js6804 speaker mounted in car door
adults celebrating in car with new car audio

These 6 x 8-inch speakers deliver up to 160 Watts of Peak Power and 40 Watts RMS at a 4 Ohm Impedance and Frequency Response between 70Hz-20kHz for high output efficiency.

JS6804 Model Features

5″ x 7″ / 6″ x 8″ Size

This speaker has a cut-out diameter of 5” x 7.10″, a top mounting depth of 2.28”, and a bottom mounting depth of 2.60”.

4-way icon

4-Way Speaker Size

The 4-Way speaker design allows for a wider range of sound. Listen to your songs in greater detail and with richer sound!

Mylar Icon

Mylar Dome

The speaker’s balanced dome midrange, made from 30mm Mylar, enhances the clarity of your sound in the midrange frequencies!

Woofer Cone Icon

Polypropylene Woofer Cone

The polypropylene injected woofer cone is resistant to moisture and sound distortion, allowing for higher quality audio.


Speaker Size

6" x 8" / 5" x 7"
Speaker Design

4-Way
RMS Power

40 Watts
Peak Power

160 Watts
Grilles

Yes
Nominal Impedance

4 Ohms
Sensitivity

87dB
Frequency Response

70 Hz ~ 20 kHz
Tweeter Material

Piezo
Tweeter Size

15mm
Tweeter Height

.28"
Midrange Material

Mylar
Midrange Size

35mm
Woofer Material

Injection Molded Black Polypropylene
Surround Material

Rubber
Cutout Diameter

5.00" x 7.10"
Top-Mount Depth

2.28"
Bottom-Mount Depth

2.60"
Mounting Height

.67"

Documents

Manuals & More

JS6804
